• Model NO.：Z149
• Certification：CE, GS, ISO9001
• Type：Sand Casting
• Name：Sand Molding Machine
• Color：According to Customer′s Rquirement
• Use：Foundry Industrial
• Type of Sand：Clay Sand(Green Sand)
• Transport Package：Wooden Box
• Specification：CE ISO
• Trademark：bestech
• Origin：China
• HS Code：8474809090
• Production Capacity：50 Set Per Month

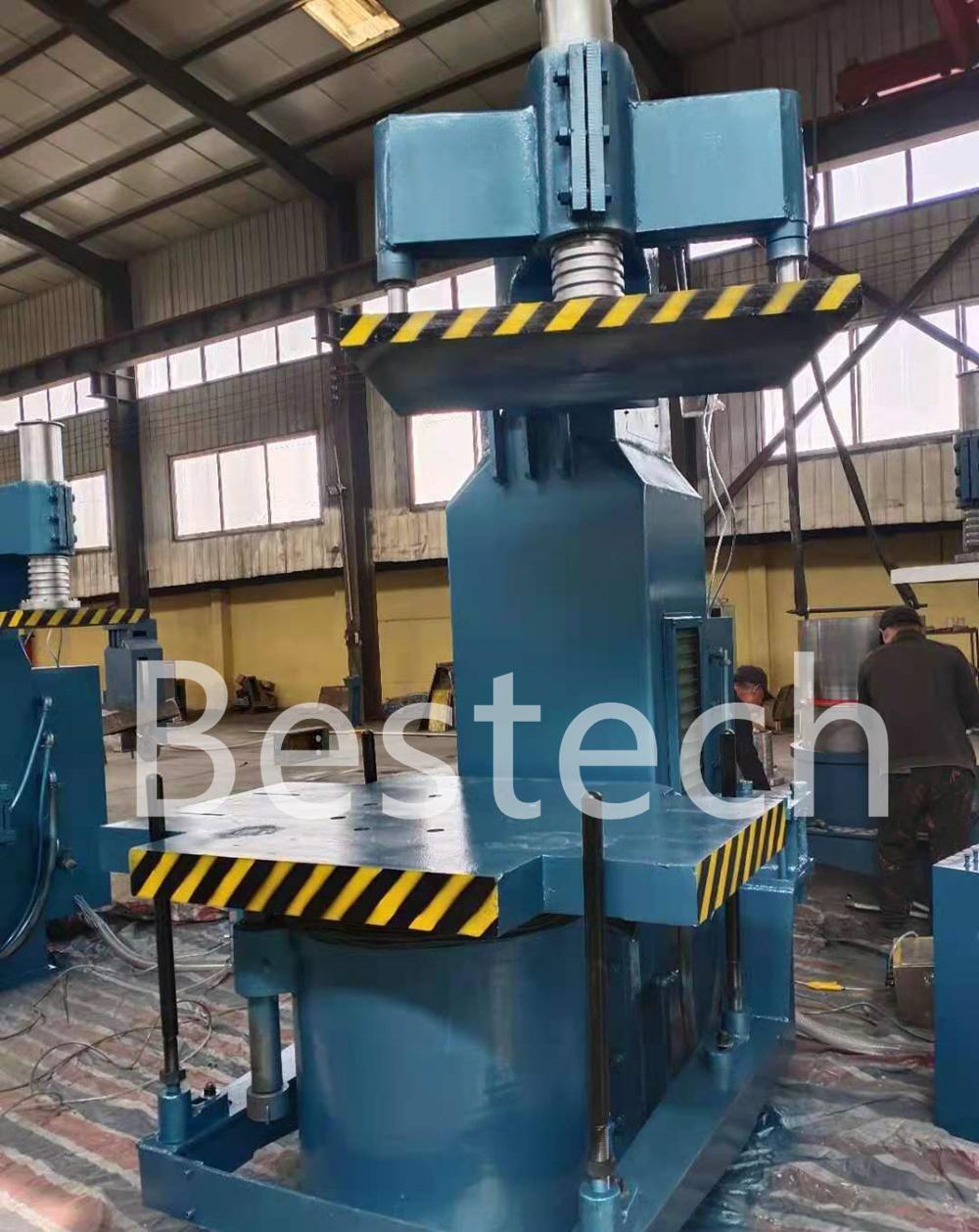

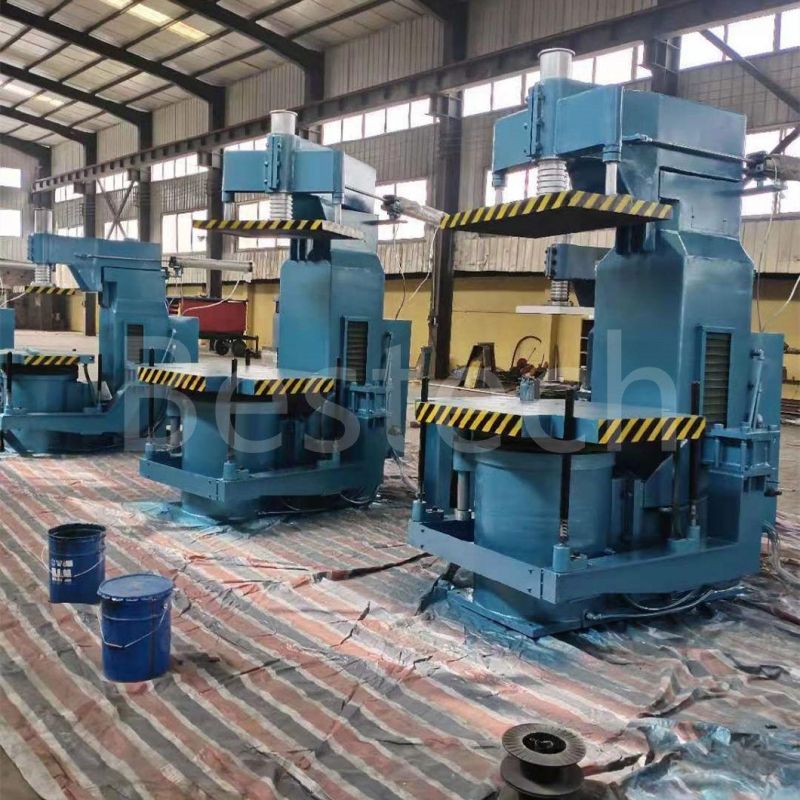

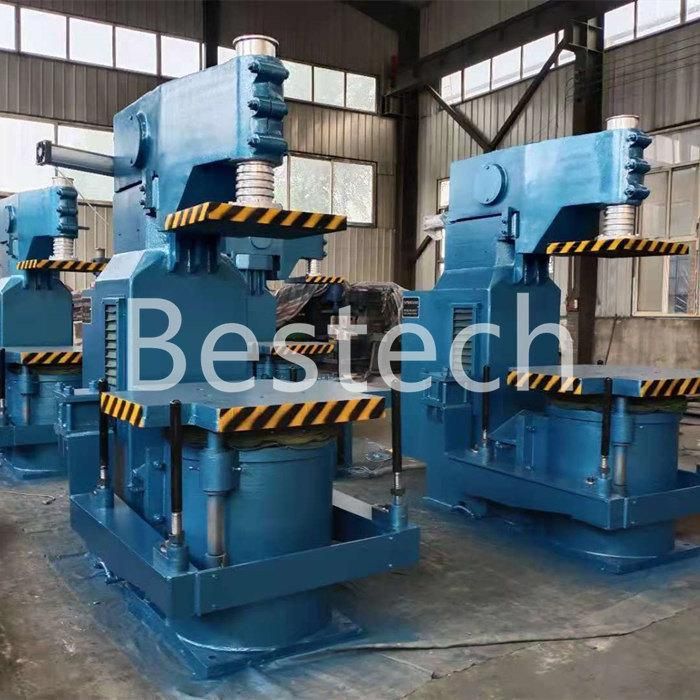

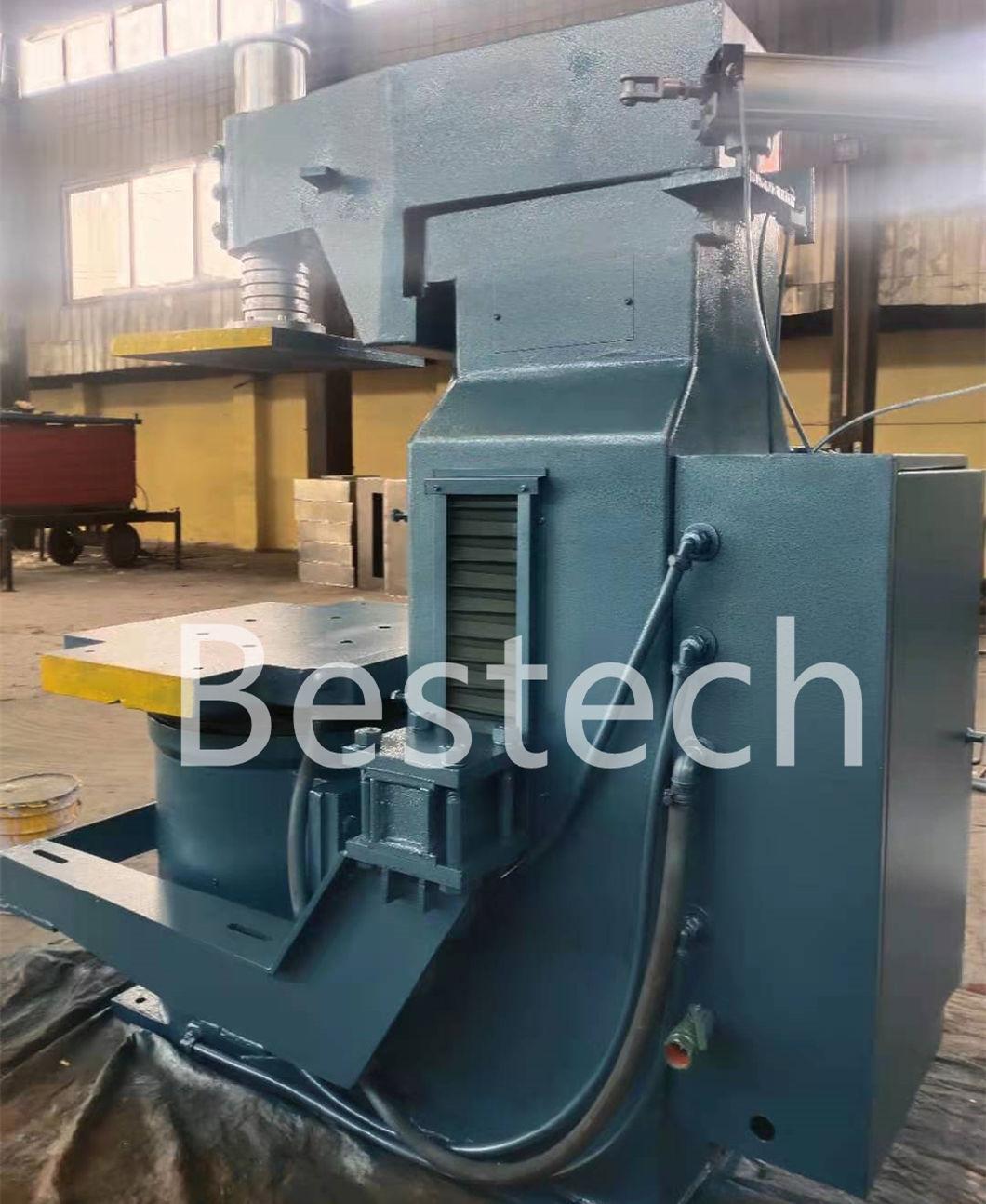

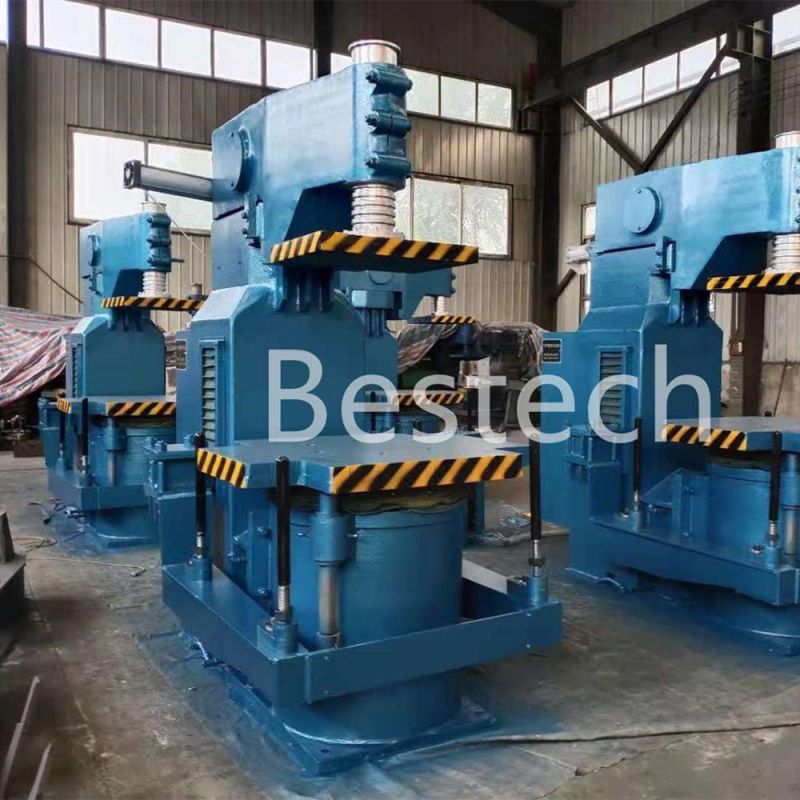

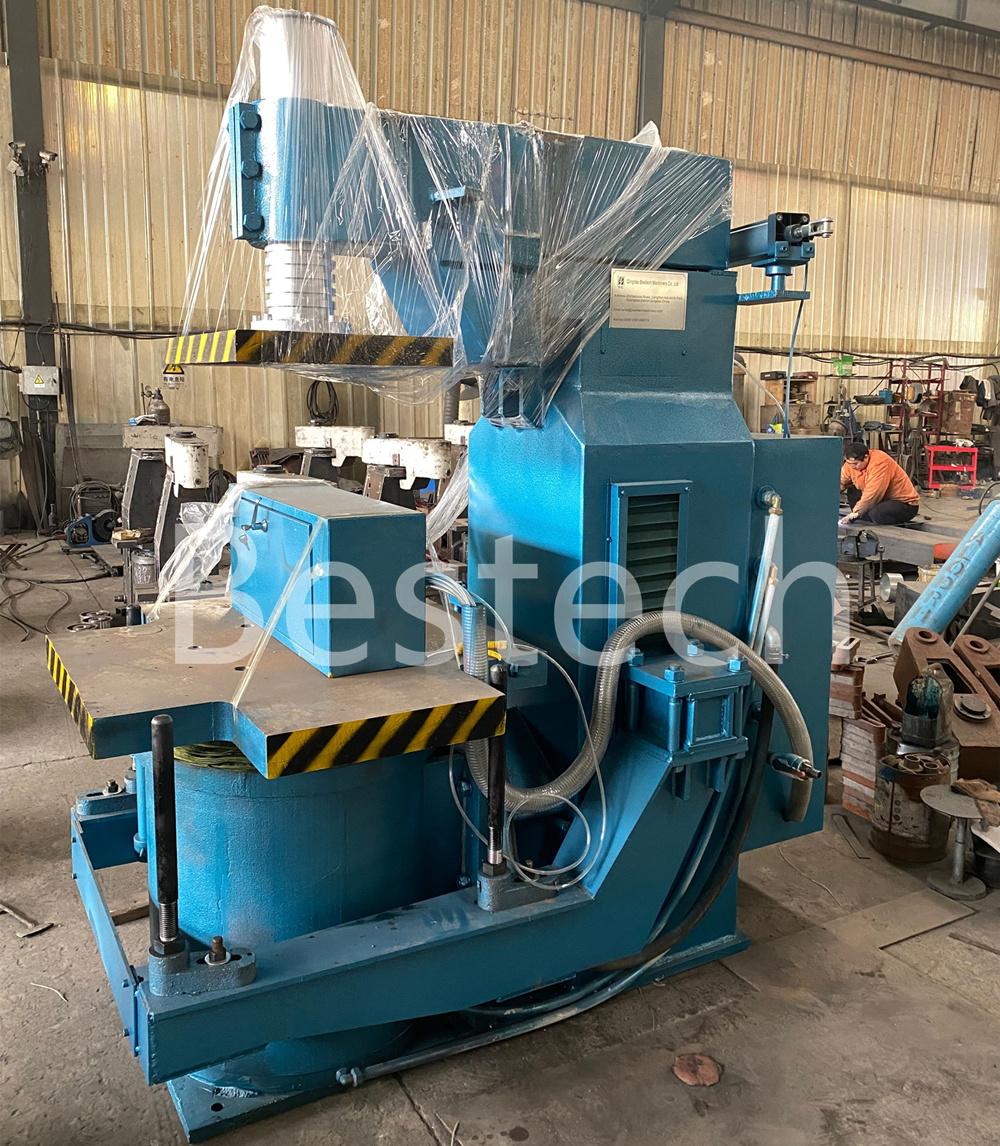

The green sand compaction jolt and squeeze molding casting machine is economic molding solution for manual and simply automatic clay sand casting production. Jolt squeeze molding machine do not need big floor space. And it is flexible to increase molding machines when casting production increasing.
 Jolt squeeze green sand molding machine can be operated for manual casting foundry and also adapts to simple casting line. Pneumatic cranes can be used to hang up and transfer finished molds.

it is fully buffered,high-frequency,low amplitude,pneumatic-type molding machine microseism compaction.
it used a buffer spring,pneumatic microseism institutions can reduce the shock impact of the foundation.
all parts of the aircraft fuselage steel,a substantial increase of steel.
the microseism structure with aircraft body table,shock pistons,shock compaction iron piston,cylinder and compaction.
pressure head to arm it in part by the pressure head plate,tumbler beam,the center gear shaft,piston cylinder,such as rack of the tumbler cylinder by the driver at both ends buffer agencies so that a smooth transfer arm rotation.
mode since the aircraft structure,by the connecting rod from cylinder mode axis synochronization,push mode,such as starting composition.
cylinder adopt air pressure control mode to ensure a smooth beginning.Foundry Green Sand Molding Machine Technical Parameter

Model	Z145	Z146	Z147	Z149	Z1410
Table Size	600×560	700×600	880×700	1100×800	1400×1030
Sand Flask	500×400	600×500	700×600	1000×800	1300×900
Sand Flask Height	<250	<250	<250	<400	<400
Capacity	25-35molds	25-36molds	25-37molds	25-38molds	25-39molds
Compaction cylinder diameter	380	420	470	630	650
Air pressure	0.6mpa	0.6mpa	0.6mpa	0.6mpa	0.6mpa
Squeeze Force	68,00	83,00	104,00	187,00	199,00
Air consumption	0.3m3/mold	0.4m3/mold	0.6m3/mold	0.9m3/mold	1.6m3/mold
Ram-jolt cylinder diameter	150mm	200mm	220mm	330mm	360mm
Stripping distance	200mm	250mm	250-300mm	350mm	350mm
