• Model NO.：Z149
• Certification：CE, GS, ISO9001
• Type：Sand Casting

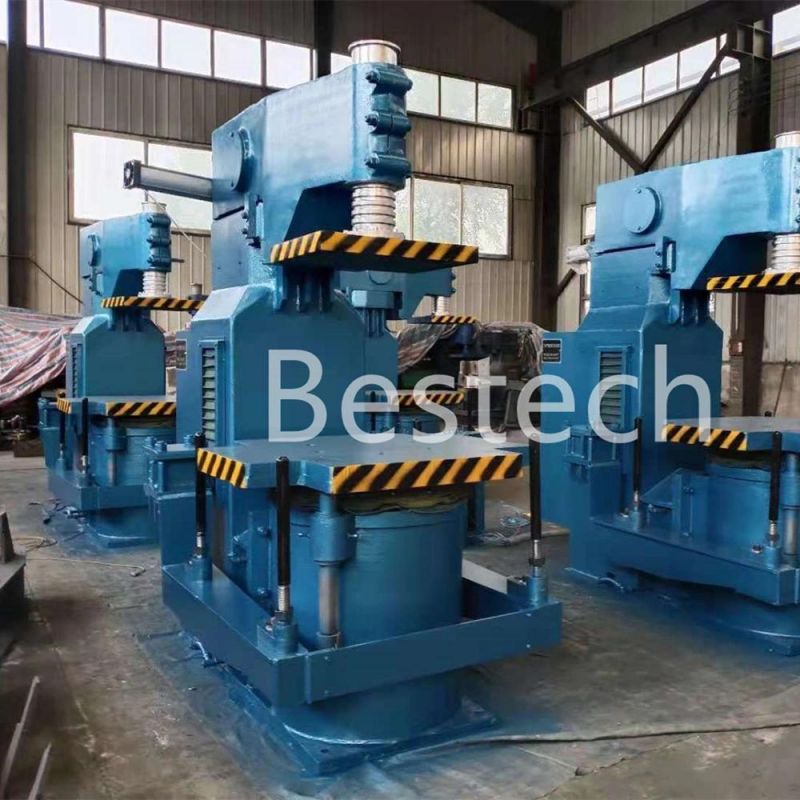

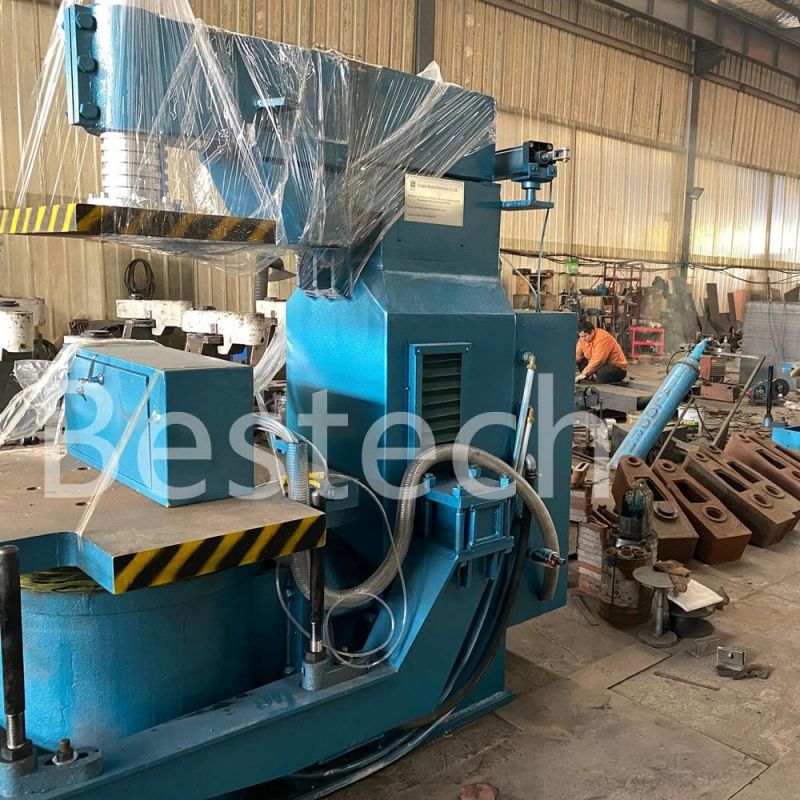

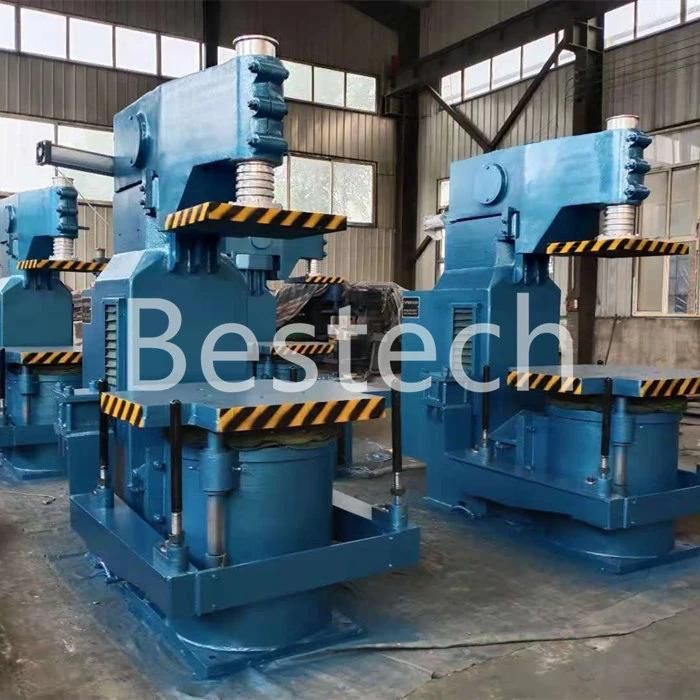

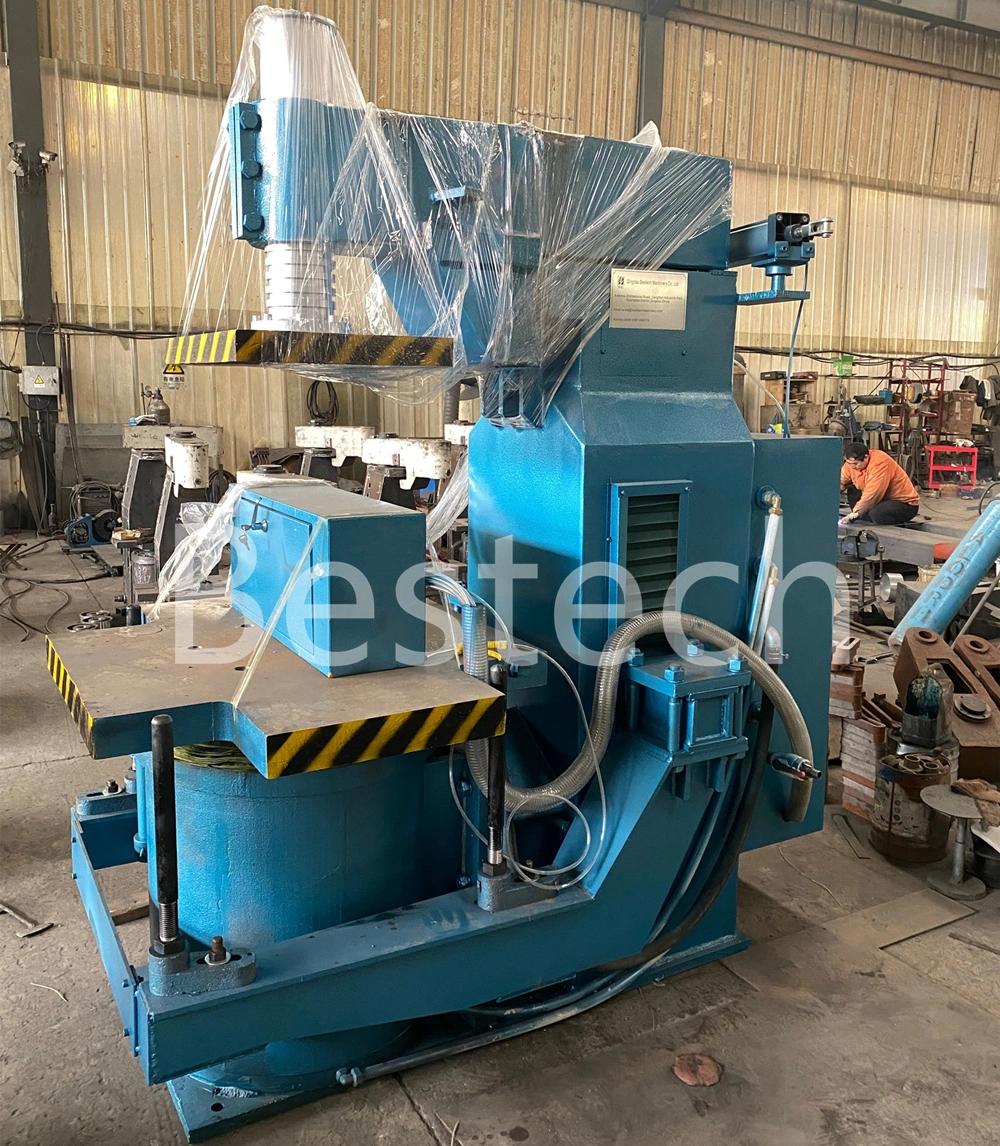

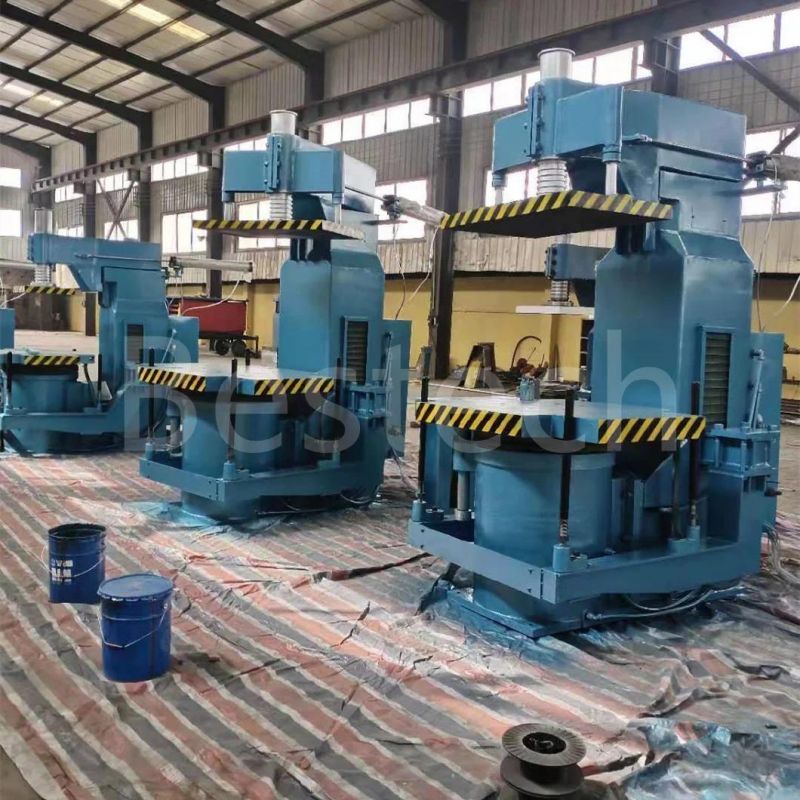

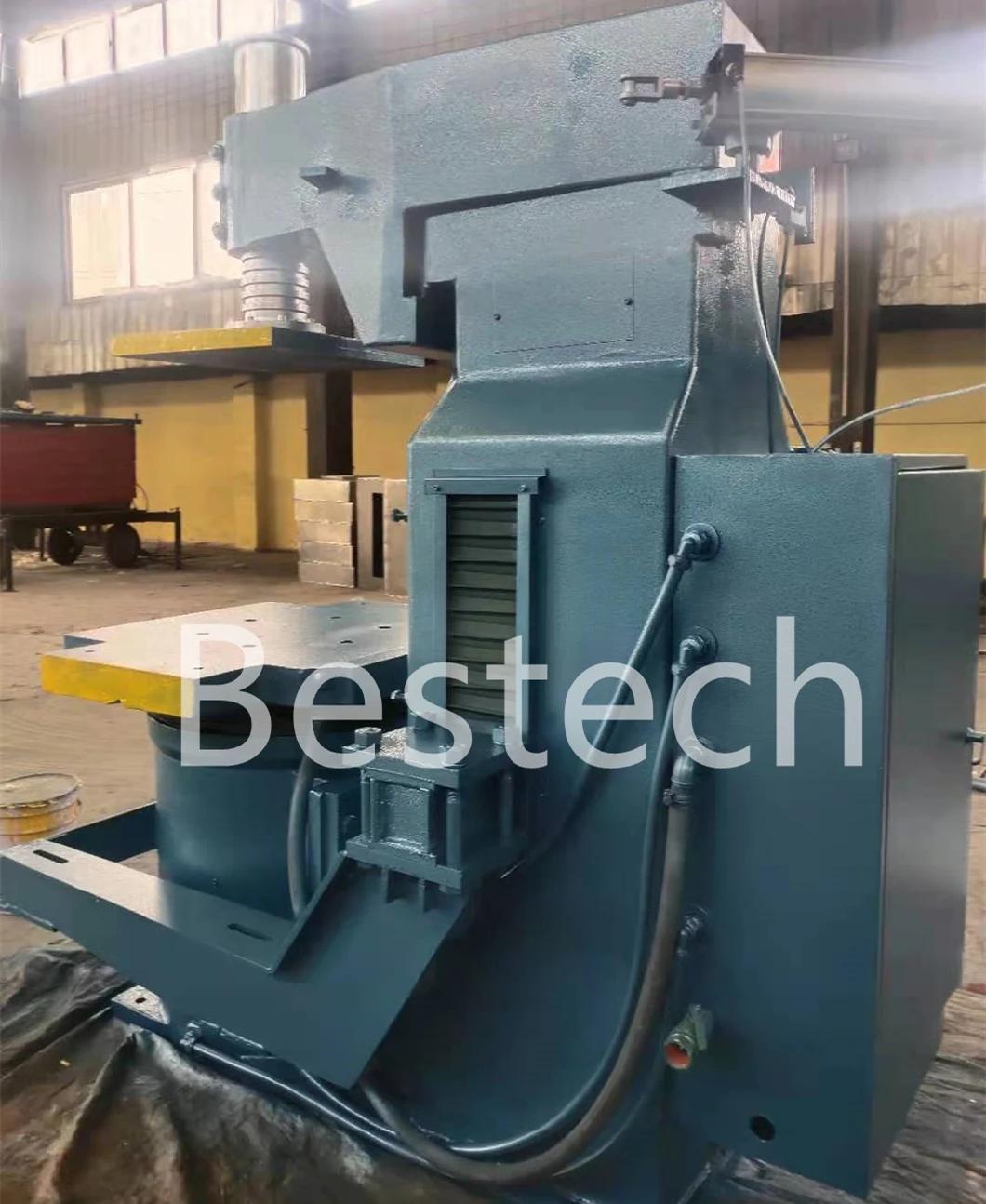

• Name：Sand Molding Machine
• Color：According to Customer′s Rquirement
• Use：Foundry
• Type of Sand：Clay Sand(Green Sand)

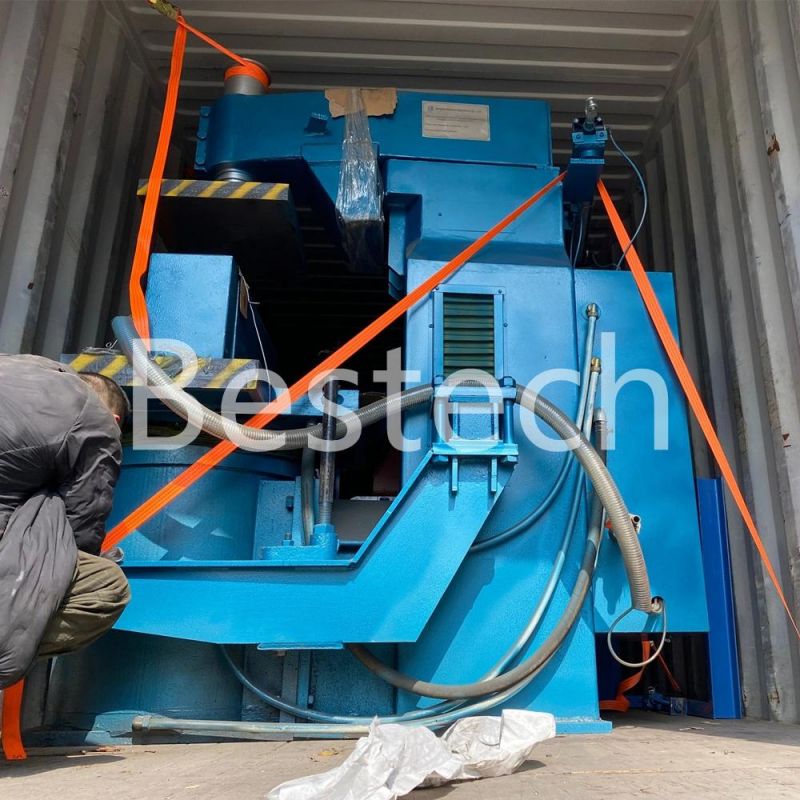

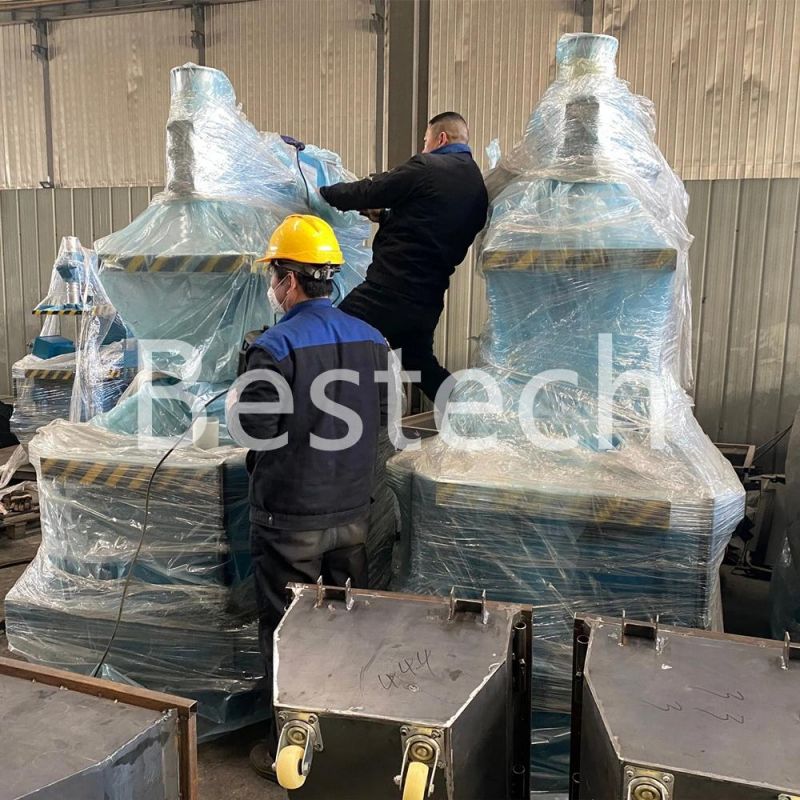

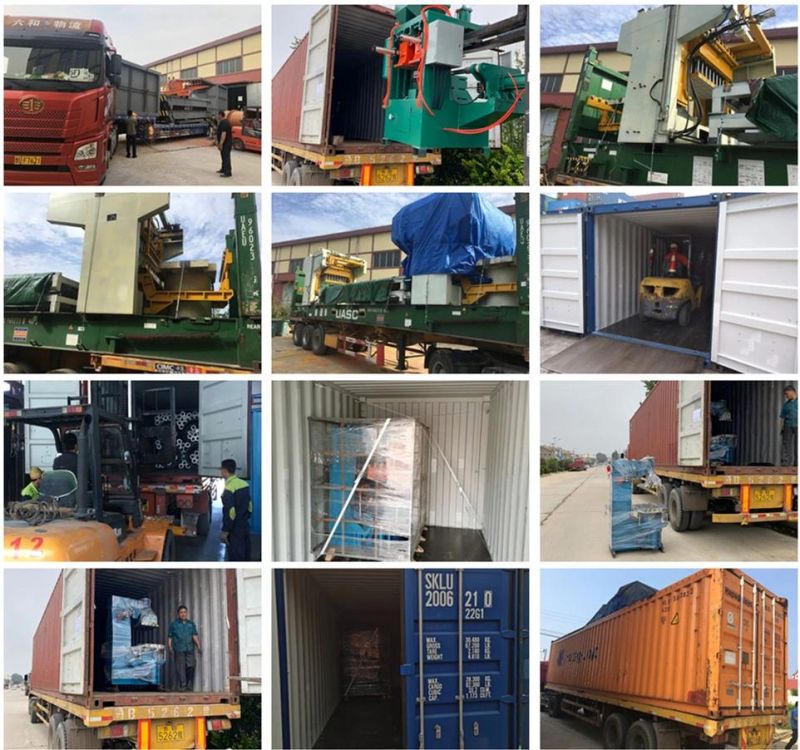

• Transport Package：Wooden Box
• Specification：CE ISO
• Trademark：besttech
• Origin：China
• HS Code：8474809090
• Production Capacity：50 Sets Per Month



Composition:

The machine is composed of the machine body, mould drawing mechanism, vibration and compaction mechanism, tumbler head part and pneumatic pipeline system, etc.



Feature:

Microseismic compacting moulding machine can make moulding board, sand box and moulding sand vibrate at high frequency and small amplitude while moulding sand is compacted.
When the sand box is filled with loose molding sand, there are still many gaps between the sand grains. At this time, the formwork is directly vibrated to transfer energy to the sand grains, so that they can find a new balance position in constant movement, thus filling the gaps and improving their compactness.
When additional vibration is added during the compaction process, in addition to the above action, the external friction resistance between sand grains and the inner wall of the sand box can be reduced, further increasing the compaction effect.
Therefore, additional vibration can significantly improve the phenomenon of real-time compaction.
Because microseismic can improve the fluidity of molding sand in the process of compacting, higher average compactness and more uniform compactness distribution can be obtained with the same compactness ratio.
Microseismic compaction molding machine can not only be in the compaction at the same time microseismic, and in the process of sand can also be microseismic, that is, the so-called pre-compaction.
This can increase the amount of sand filling in the sand box and improve the uniformity of the original compactness and compactness of the sand mold.
It can reduce the height of the prefill and the travel of the compacting piston, especially for the high sand box or complex model

Foundry Green Sand Molding Machine Technical Parameter

Model	Z145	Z146	Z147	Z149	Z1410
Table Size	600×560	700×600	880×700	1100×800	1400×1030
Sand Flask	500×400	600×500	700×600	1000×800	1300×900
Sand Flask Height	<250	<250	<250	<400	<400
Capacity	25-35molds	25-36molds	25-37molds	25-38molds	25-39molds
Compaction cylinder diameter	380	420	470	630	650
Air pressure	0.6mpa	0.6mpa	0.6mpa	0.6mpa	0.6mpa
Squeeze Force	68,00	83,00	104,00	187,00	199,00
Air consumption	0.3m3/mold	0.4m3/mold	0.6m3/mold	0.9m3/mold	1.6m3/mold
Ram-jolt cylinder diameter	150mm	200mm	220mm	330mm	360mm
Stripping distance	200mm	250mm	250-300mm	350mm	350mm
