Trapezoidal Profile Metal Roof Sheeting Iron Sheet Tile Making Machine Price Building Material Making Machinery
Cangzhou Dixin Roll Forming Machine Co., Ltd.- Forging Forming Method：Mold Forging
- Power Source：Hydraulic Pressure
Base Info
- Model NO.：800,840mm
- Feature：Automation
- Certification：CCC, ISO9001, CE
- Warranty：12 Months
- Customized：Customized
- Advantage：Use Widely
- Condition：New
- Name：Metal Roof Tile Panel Profile Making Machine
- Applied Slad Thicknedd：0.7-0.8mm
- Charge in Width：1000mm-1200mm
- .Productivity：0-15m,Min
- Rollers：13----18 Rows
- Diameter of The Roller：75mm
- Dimensions: Major Structure：7.8m×1.8m ×1.4m
- Weight：4.5t
- Power：4kw+4kw
- Size：7800*1500*1600
- Transport Package：Water-Proof Packaging, Covered with Plastic Film
- Specification：CE ISO
- Trademark：DIXIN
- Origin：Botou Hebei China
- HS Code：845522
- Production Capacity：20 Set Per Year
Description
Raw material
Material
Colored steel sheet, galvanized steel sheet, aluminum sheet
Thickness of coil sheet
0.2-0.8 mm
Material expand width
1000mm
Efficiency width
800-840mm
Machine details
Roller material
High grade no. 45 forged steel with 0.05mm hard chrome plating
Shaft material
High grade no. 45 carbon wrought steel
Cutting blade
Cr12 mould steel with quenched treatment
Diameter of shaft
75mm or as your requirement
Main frame
350 h steel
Forming steps
Up layer:17 stations
Down layer:18stations
Productivity
10-15m/min
Hydraulic station power
5.5+4kw
Hydraulic pressure
10-12mpa
Appearance size
9000mm*1500mm*1500mm
Weight
5.5tons
Hydraulic oil
40# hydraulic oil
Electric tension
380v 50 hz 3 phase or as your requirement
Cut mode
Hydraulic forming after cutting off
Cutter materia
Cr12 heat treatment
Electronic control system
Delta Plc, touch screen, encoding counter
Color
Blue, green or yellow or as your requirement
Rolling material
45# steel,roller surfaces polishing, hard plating
Service life
10 years

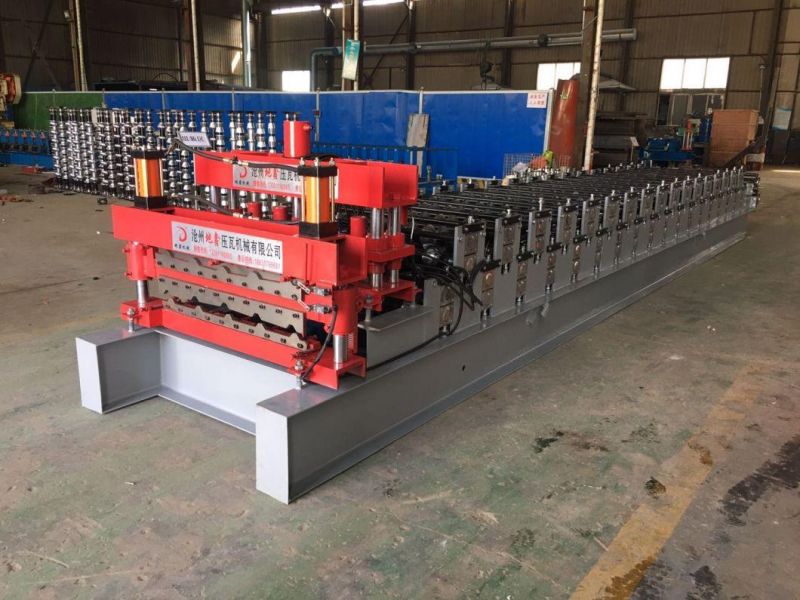

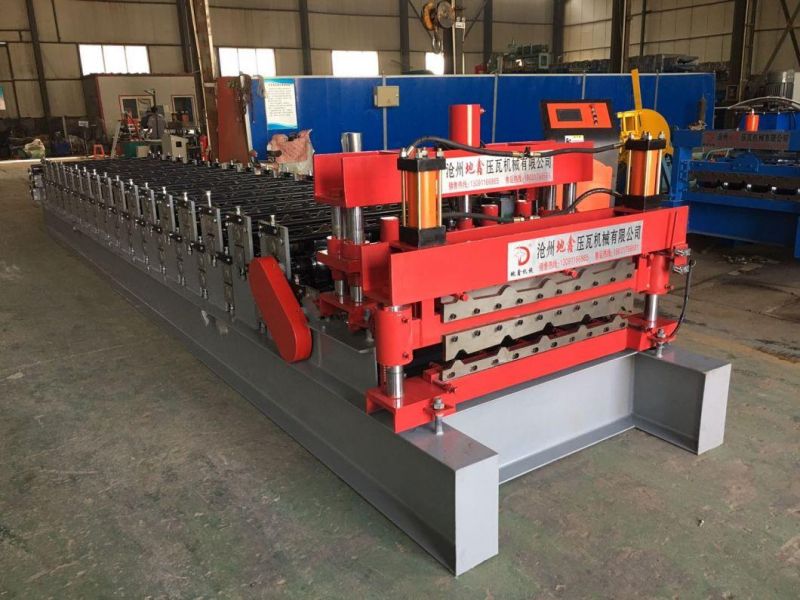

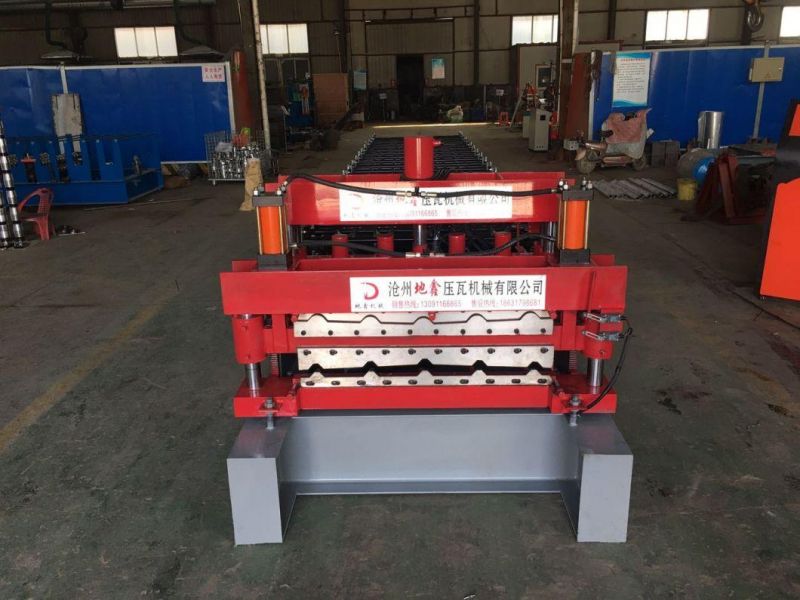

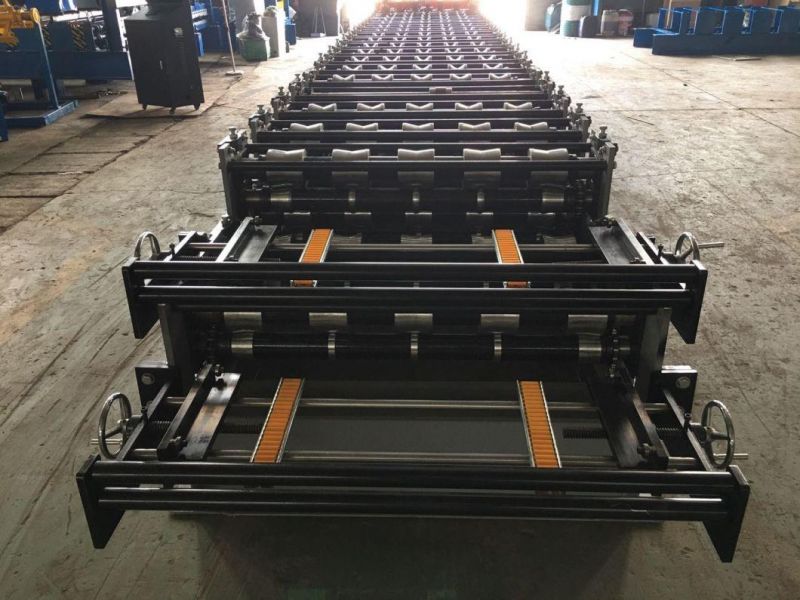

2.Some machine pictures for your reference.
3.Aftersales service
In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.
Installation:
(1) If installation is needed, Dixin (the seller) will dispatch technician to the buyer's factory abroad to assist regulating the machine with charge free. The buyer should assist Liming to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.
(2) If installation is needed, the buyer shall make the following preparation before arrival of technicians.
a) Position the machine in the buyer's factory.
b) Prepare necessary electric wiring.
c) Prepare material of trial running.
d) Provide labors for assistance and installation during installation.
e) If possible, One Chinese-speaking interpreter so that the communication between the buyer and seller's technician will go smoothly.

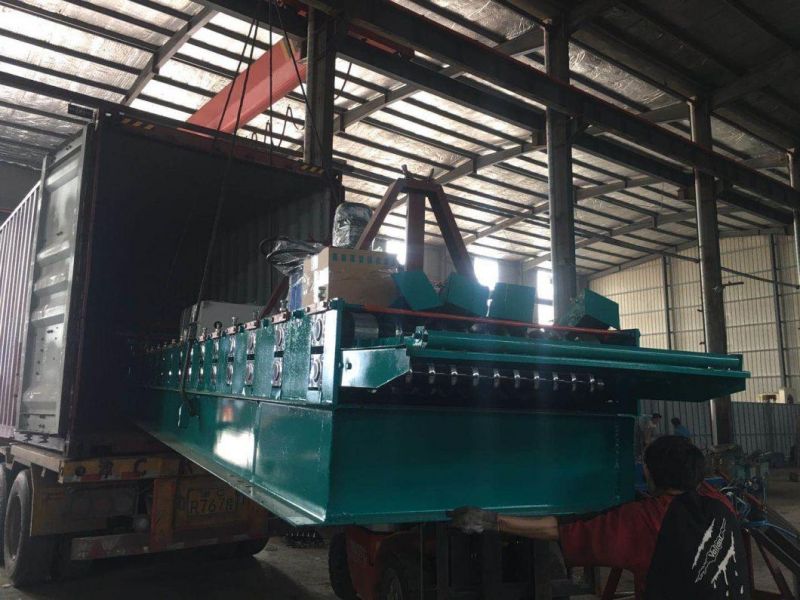

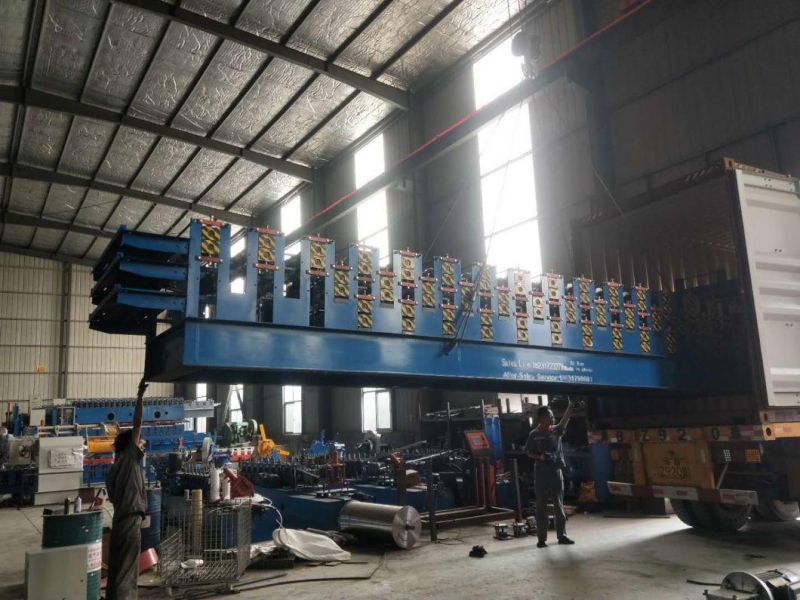

4.Packing and shipping details
a. Need one 20 or 40 ft container, according to your final drawing.
b. The main body of machine is fixed to container by 8mm diameter steel wire, rollers and shaft is
covered with anti-rust oil.
c. Spare parts in carton box.
5.About us
Cangzhou Dixin Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Strong technical resources are the most stable guarantee for our products' quality. We adopt computer software for design drawing, production drawing and installation drawing for steel construction equipment. We adopt advanced computer digital inspection and produce high quality light steel structure equipment. Our technical is updating day by day !
Our sales network covers all over China. We also sell products to the United States, Australia, the Netherlands, Germany, Ecuador, Bolivia, Thailand, Malaysia, Indonesia, India, the Philippines, Bangladesh, Nigeria, South Africa, Ethiopia, Syria, Libya, Ghana, Sudan, Saudi Arabia, the United Arab Emirates, Turkey, Azerbaijan and other markets.
Our company has matured after-sale service network, we could provide efficient and satisfactory service for you throughout the period of our cooperation.If necessary, we can supply you with local technical support and send technicians to for installation and operation training.
FAQ
Q: Are you a trading company or a factory?
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll
forming machines.
Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for wider and double layer manufacturing machines. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other
parts, processing, assembly, testing and packaging on the roll surface and shaft.
Q: What can you do if the machine broken?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged
part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through
negotiation and we provide technical support for the entire life cycle of the device.
Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to
install and have low maintenance requirements.
Q: Can we become your agent abroad?
A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation.
