• Model NO.：corrugated forming machine
• Feature：Automation
• Certification：CCC, ISO9001, CE
• Warranty：24 Months
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Name：Corrugated Forming Machine
• Processing Material：Galvanized Steel,Colored Steel Coil
• Material Thickness：0.3-0.8mm
• Effective Width：850mm
• Feeding Width：1000mm
• Main Motor Power：4 Kw
• Pump Power：4 Kw
• Speed：8-12m,Min
• Shaft Diameter：75mm
• Product Name：Corrugated Forming Machine
• Transport Package：Water Proof Package
• Specification：CE ISO BV
• Trademark：DIXIN
• Origin：Botou Hebei China
• HS Code：84552210
• Production Capacity：20 Set Per Month

No.
Corrugated Iron Roofing Sheet Roll Forming Machine
1
Suitable to process
Color steel plate
2
Width of the plate
1000mm
3
Dimensions
6.8*1.5*1.5m
4
Power
4+4kw
5
Thickness of the plate
0.3-0.8mm
6
Productivity
8-12m/min
7
Weight
About 3T
8
Voltage
380V 50Hz 3phases
9
Control system
PLC control
 2.Components of production line

No.	Name	Unit	Qty
1	Main forming machine	set	1
2	PLC control system	set	1
3	Hydraulic pump station	set	1
4	Cutting system	set	1
5	Electric motor	set	1
6	Manual decoiler	set	1
7	Some spare parts

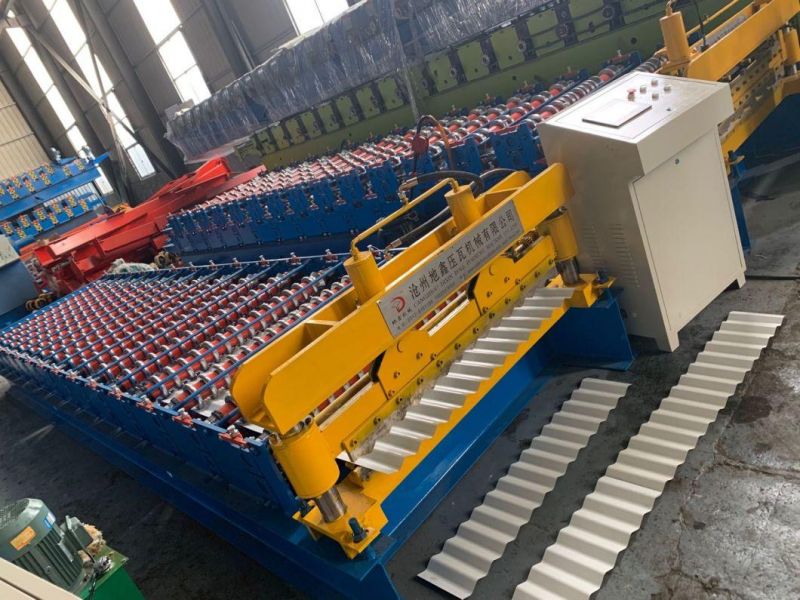

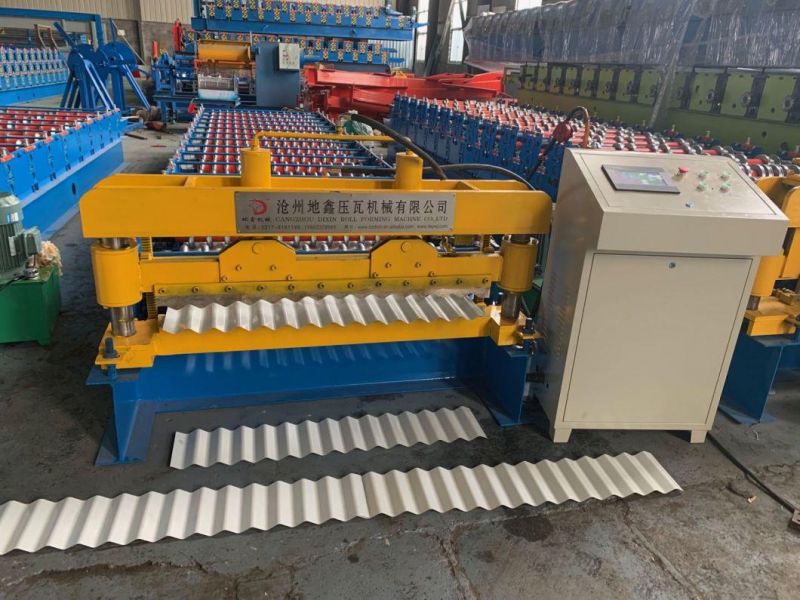

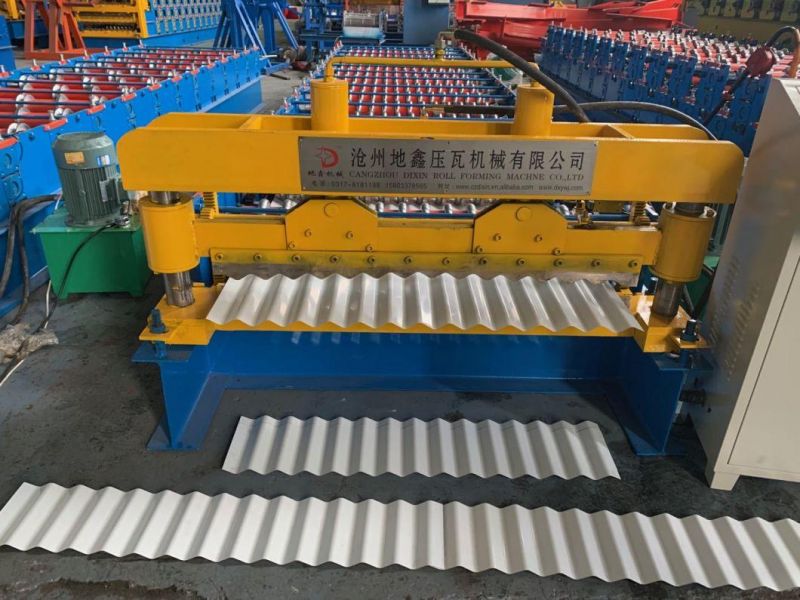

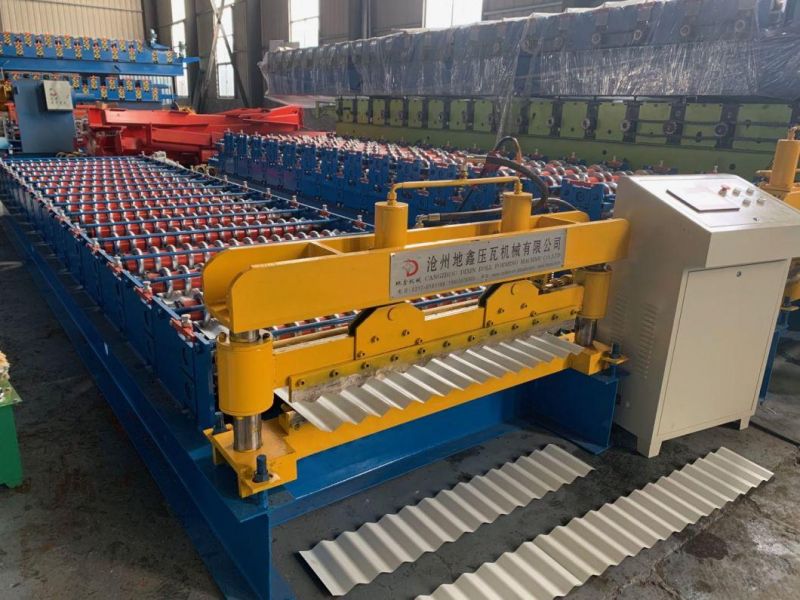

3.Some machine pictures for your reference.






4.Our excellent engineer

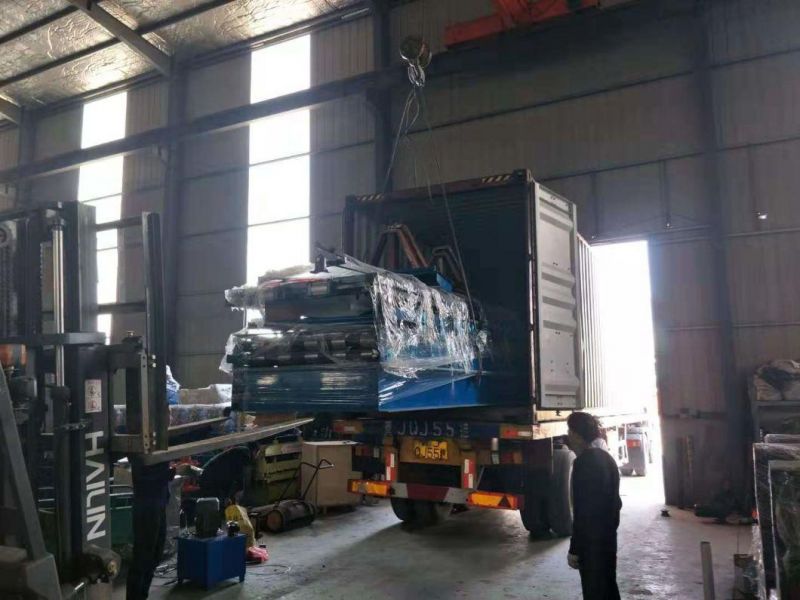

5.Packing and shipping details
 1. One 40ft container for loading one set machine with manual decoiler;
 2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
 3. Spare parts and some small parts packed in plastic tooling box;
 4. All Components Fixed by steel wire with Container.


6.FAQ:
Q1. What's your payment terms and delivery time?

A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspectthe machine well and before delivery. Of course your payment terms are acceptable.After we get down payment, we will arrange production. About 30-45 days for delivery.



Q2. Do you have after -sales support?

A2: Yes, we are happy to provide advice and we also have skilled technicians available across theworld.



Q3. Do you sell only standard machines?

A3: No, most of our machines are built according to customers specifications, using top brand com-ponents.



Q4. What will you do if the machine is broken?

A4: We provide 18 months free warranty and free technical support for the whole life of anymachine.



Q5. Can you be responsible for transport?

A5: Yes, please tell me the destination port or address. we have rich experience in transporting.



Q6. How to visit your company?

A6: 1) Fly to Beiing airport, By high speed train From Beiing Nan to Cangzhou Xi (1 hour).

2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
