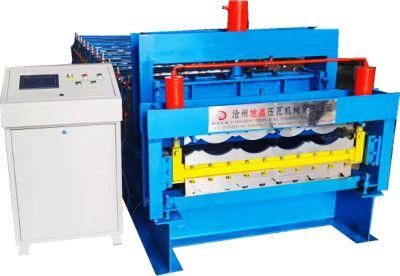

Galvanized Metal Steel Omega Light Keel Profile Roofing Sheet Cold Roll Forming Making Machine Production Line Price
Cangzhou Dixin Roll Forming Machine Co., Ltd.- Forging Forming Method：Mold Forging
- Power Source：Hydraulic Pressure
Base Info
- Model NO.：Omega Profile Roll Forming Machine
- Feature：High Efficiency
- Certification：CCC, ISO9001, CE
- Warranty：12 Months
- Customized：Customized
- Advantage：Use Widely
- Condition：New
- Name：Omega Profile Roll Forming Machine
- Use：Roof and Wall
- Voltage：380V 60Hz or at Your Request
- Dimension(L*W*H)：5000X 800 X 1145mm
- Weight：2500kg
- Minimum Order Quantity：1 Set
- Color：Glue or as Require
- Control System：PLC
- Hydraulic Station Power：7.5kw
- Transport Package：Standard Export Package or as Required
- Specification：CE ISO
- Trademark：DIXIN
- Origin：Botou Hebei China
- HS Code：84552210
- Production Capacity：20 Set Per Year
Description
Technical Datas roll forming machine1 Material width As your regards 2 The effective width As your regards 3 The thickness of Coil 1.1-2.2mm or more 4 Application wall sheet and roof sheet 5 The overall dimensions 6800mmX1500mmX1300mm 6 Total weight 5 Tons 7 Main Power 5.5 KW 8 Uncoiler Manual Uncoiler 9 Inner diameter 508--610mm 10 Outer diameter 1200mm 11 Loading weight 5 T 12 Forming speed 10-12m/min 13 Forming steps 13 stations 14 Bracket welded with 36 # I-steel 15 Material of Shafts
45# steel with rough finished and then refined
finished
16Diameter of the Roll 76mm 17 Material of Rolls
high quality 45#steel coated with hard chromium
0.05mm
18Processing Technology rough processing ---refined processing--Hard Chromium Plating. 19 Material of Rack
complete welded structure of A3 steel plate 16mm
thickness
20Transmission Transmitted by the chain-bracket 21 Material of Chain 45#steel with heat treatment of HRC45-50° 22 Holders under chain for lubricant By the machine 23 Material of cutting blade Cr12 with quenched treatment 60-62 24 Cutting system Hydraulic cutting 25 Voltage 380V/50HZ/3phase
Company Introduce:
Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.
Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers' trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc.

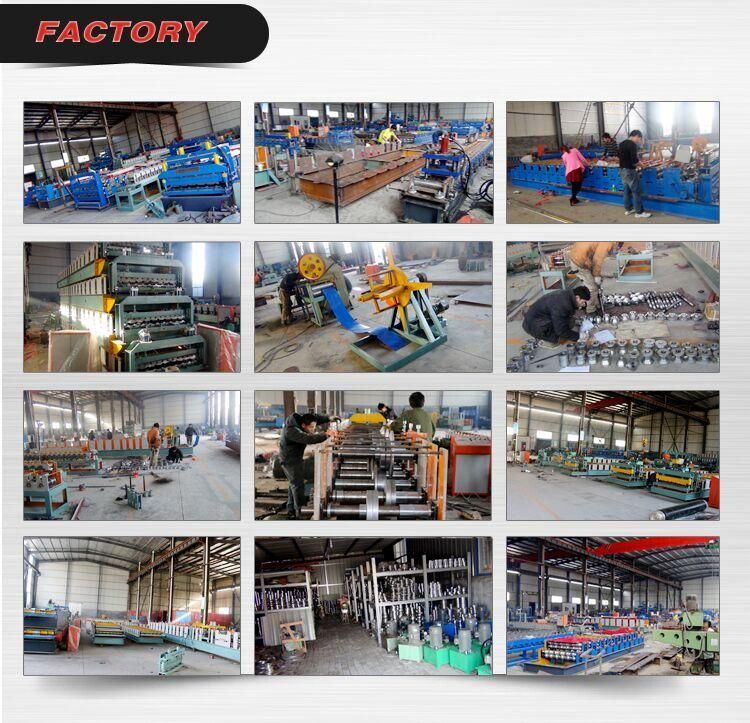

Warmly welcome to China to visit our factory and select the machines you need. Our address,Fuzhuang Industrial Development Zone, Botou City, Hebei Province, China
We can design machine according to customer's panel profile.If you have any interest or question,please feel free to contact me
Online contact will get big discount!
