• Model NO.：JK-FS-2500A
• Style：Customized
• Warranty：1 Year
• Wire Diameter：2.5-6mm
• Mesh Opening Size：50*25-300*300mm
• Mesh Width：Max.2.5m
• Mesh Length：6m
• Control System：Panasonic PLC
• Raw Material：Ribbed Bar&Round Bar
• Welding Speed：45-75times,Min
• Power Supply：120kw
• Machine Name：China CNC Welded Wire Mesh Fence Gride Machine
• Transport Package：Plastic &Wooden Box
• Specification：CE, SGS, ISO
• Trademark：JIAKE
• Origin：Anping, Hebei, China
• HS Code：8463300000
• Production Capacity：4500kg
• Package size per unit product：840.00cm * 320.00cm * 170.00cm
• Gross weight per unit product：4500.000kg

ModelJK-FS-2500AWire diameter2.5mm-6mmLongitude wire space50mm-300mmCross wire space25mm-300mmMesh widthMax.2.5mLongitude wire feedingPre-straightened &pre-cutWelding speed45-75times/minCross wire feedingPre-straightened &pre-cutWelding electrodes48pcsRated electrical power125kva*6pcsMachine size8.4m*3.2m*1.7mWeight4500kgPacking& delivery60days after we receive the prepaid
1. The bracket and auxiliary equipments will be with plastic package, spare parts in carton box.
2. The main machine will be fixed in the container by steel wire
Auxiliary Equipment:

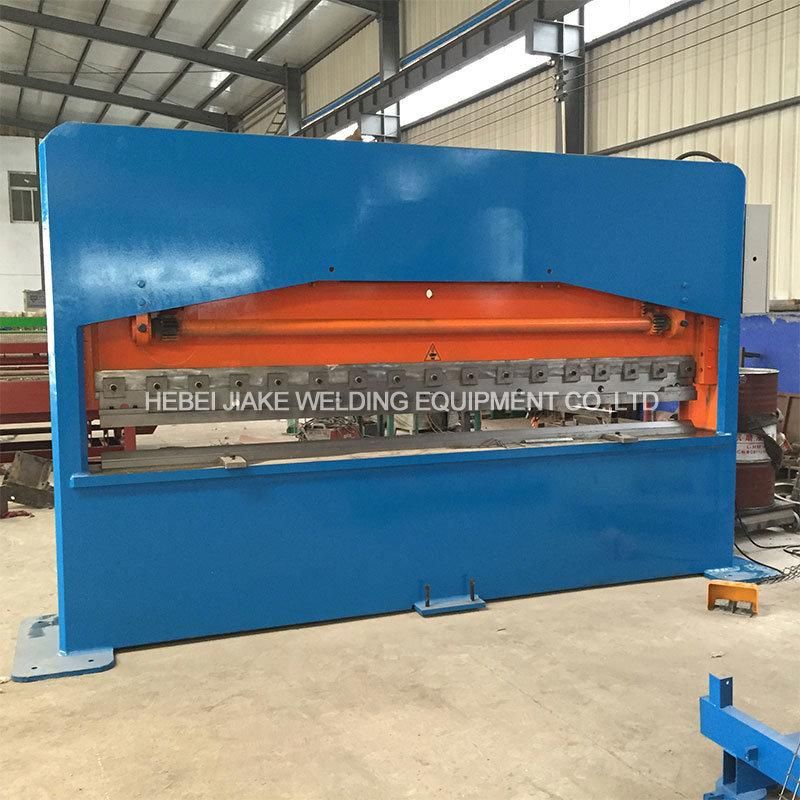

Mesh bending machine,


Application: railway, highway, Bridges, buildings, such as residential fence and shelves, warehouse cage welding


Material: low carbon wire, galvanized wire.

Best After-sales Service
1. Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date.
2. Within guarantee time, if any components are broken under normal condition, we can change for free.
3. We can send our best technician to buyer's factory for installation, debugging and training.
4. Complete installation instructions, circuit diagram, manual operations and machine layout.
5. Timely reply for your machine questions.
