• Model NO.：JK-FS-2500A
• Style：Customized
• Warranty：1 Year
• Wire Diameter：2.5-6mm
• Mesh Opening Size：50*25-300*300mm
• Mesh Width：Max.2.5m
• Mesh Length：6m
• Control System：Panasonic PLC
• Raw Material：Ribbed Bar&Round Bar
• Welding Speed：45-75times,Min
• Power Supply：120kw
• Machine Name：3D Panel Fence Mesh Welding Machine
• Transport Package：Plastic &Wooden Box
• Specification：CE, SGS, ISO
• Trademark：JIAKE
• Origin：Anping, Hebei, China
• HS Code：8463300000
• Production Capacity：4500kg
• Package size per unit product：840.00cm * 320.00cm * 170.00cm
• Gross weight per unit product：4500.000kg

ModelJK-FS-2500AWire diameter2.5mm-6mmLongitude wire space50mm-300mmCross wire space25mm-300mmMesh widthMax.2.5mLongitude wire feedingPre-straightened &pre-cutWelding speed45-75times/minCross wire feedingPre-straightened &pre-cutWelding electrodes48pcsRated electrical power125kva*6pcsMachine size8.4m*3.2m*1.7mWeight4500kgPacking& delivery60days after we receive the prepaid
1. The bracket and auxiliary equipments will be with plastic package, spare parts in carton box.
2. The main machine will be fixed in the container by steel wire

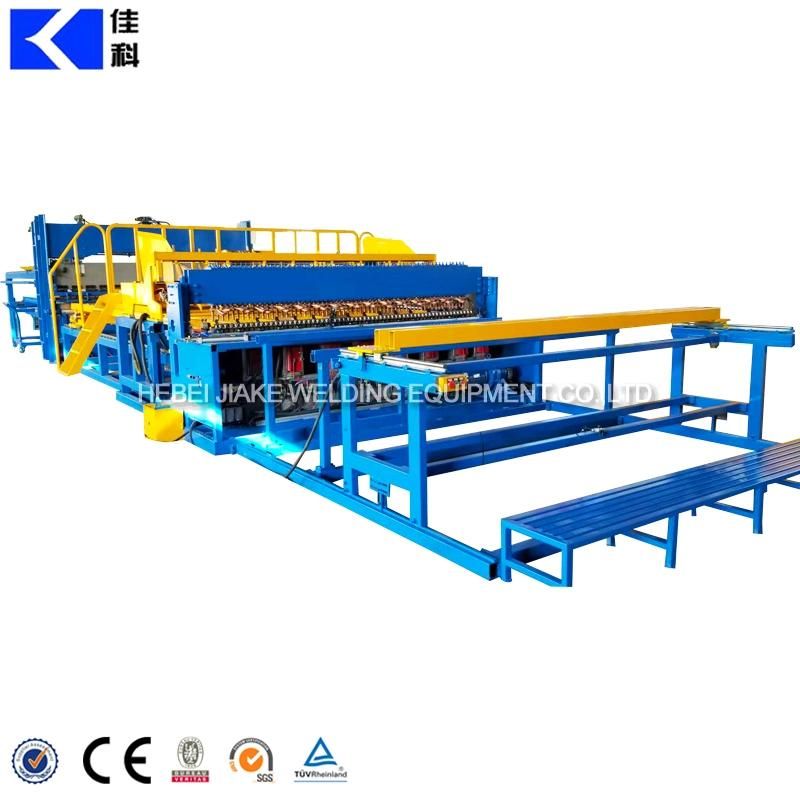

Construction mesh fence welding machine
1. The machine adopts PLC program. The input front-panel is touch screen, which makes the operation more intelligent.
2. The longitude wires and cross wires should be pre-straightened and pre-cut.
3. The longitude wires should be inserted into the slot tunnel by manual work. The slot tunnel can be adjusted to fit different wire diameters.
4. The cross wires are fed from the hopper deviceautomatically. The hopper device has more capacityand is controlled by step motor.
5. The mesh pulling system is controlled by step motor. The biggest advantage is that you can adjust the cross wire space randomly on same piece of mesh sheet.

Accessorial parts:
Electric control cabinet, straightening and cutting machine, bracket.

Application: railway, highway, Bridges, buildings, such as residential fence and shelves, warehouse cage welding

Material: low carbon wire, galvanized wire.

Best After-sales Service
1. Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date.
2. Within guarantee time, if any components are broken under normal condition, we can change for free.
3. We can send our best technician to buyer's factory for installation, debugging and training.
4. Complete installation instructions, circuit diagram, manual operations and machine layout.
5. Timely reply for your machine questions.

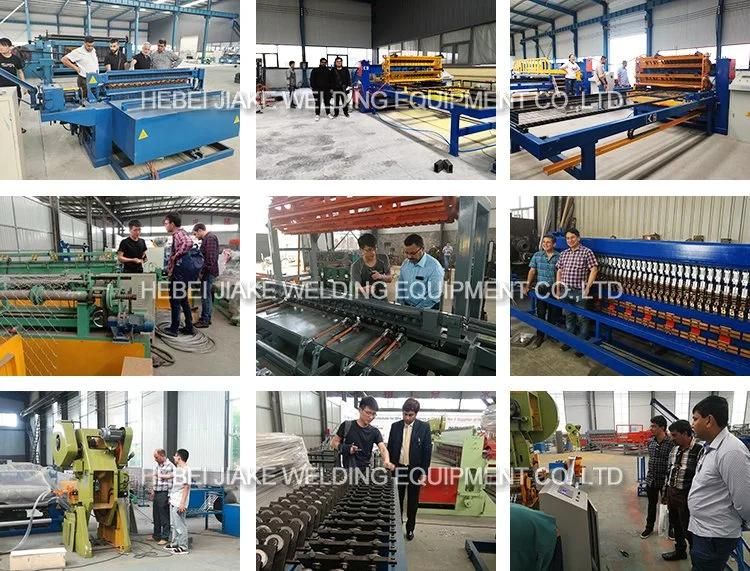

Company information:

We are a professional manufacturer of wire mesh machines in China. Our main products are:
Reinforcing mesh welding machine, Fence mesh welding machine, Roll mesh welding machine, Chicken cage welding machine, Automatic welded mesh machine, Wire straightening and cutting machine, Cold rolling ribbed machine etc.
Welcome to visit our factory!
