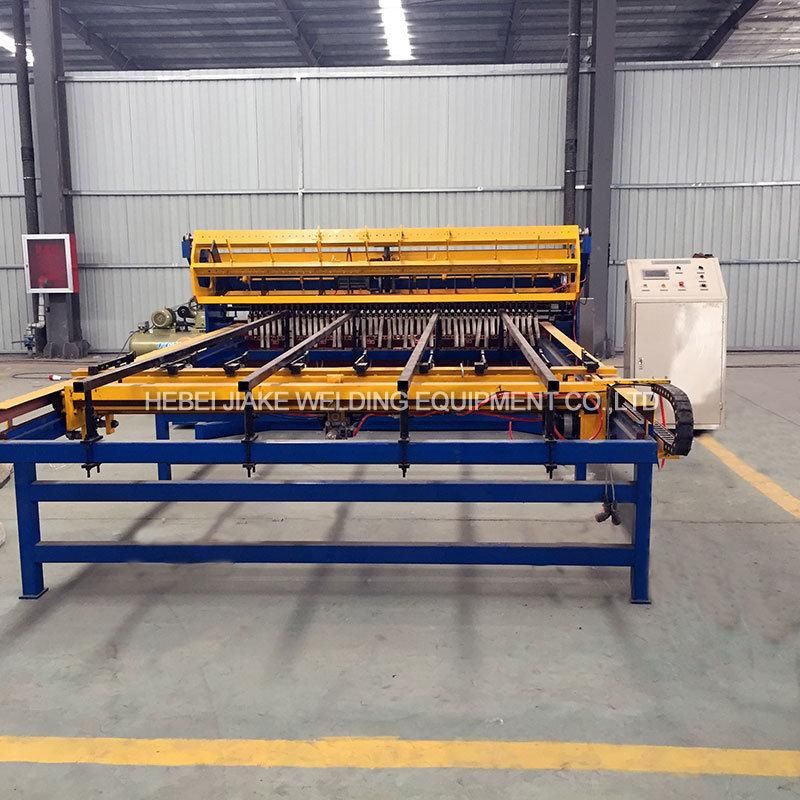

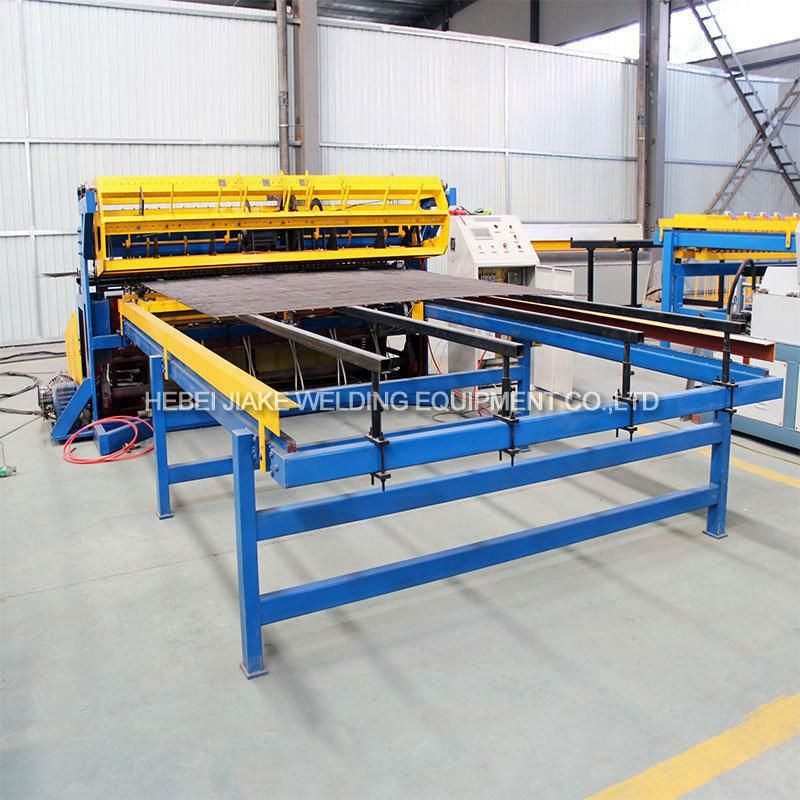

Automatic Anti-Climb Wire Mesh Fence Panels Welding Machine

Hebei Jiake Welding Equipment Co., Ltd.
  • Type：Welded Wire Mesh Machine
  • Voltage：220,380,415,440V

Base Info

  • Model NO.：JK-FS-2500A
  • Style：Customized
  • Warranty：1 Year
  • Wire Diameter：2.5-6mm
  • Mesh Opening Size：50*25-300*300mm
  • Mesh Width：Max.2.5m
  • Mesh Length：6m
  • Control System：Panasonic PLC
  • Raw Material：Ribbed Bar&Round Bar
  • Welding Speed：45-75times,Min
  • Power Supply：120kw
  • Machine Name：Fence Mesh Panel Welding Machine
  • Transport Package：Plastic &Wooden Box
  • Specification：CE, SGS, ISO
  • Trademark：JIAKE
  • Origin：Anping, Hebei, China
  • HS Code：8463300000
  • Production Capacity：4500kg
  • Package size per unit product：840.00cm * 320.00cm * 170.00cm
  • Gross weight per unit product：4500.000kg

Description

60days after we receive the prepaid
1. The bracket and auxiliary equipments will be with plastic package, spare parts in carton box.
2. The main machine will be fixed in the container by steel wire Automatic Anti-Climb Wire Mesh Fence Panels Welding Machine
Machine description:
1.This machine adopts synchronous control technique, both welding time and separate-control welding is controlled by PLC, input panel has been divided into two kind, they are touch screen and button. This made the operation more intelligent and rationalization. This machine use electric as its motive power, and it use the step motor hopper, brake motor drive the car to put the weft. And drawing mesh use the step motor. The longitudinal and weft should be pre-cut. The biggest advantage is that can produce different aperture in both longitudinal and weft.
Automatic Anti-Climb Wire Mesh Fence Panels Welding Machine

Accessorial parts:

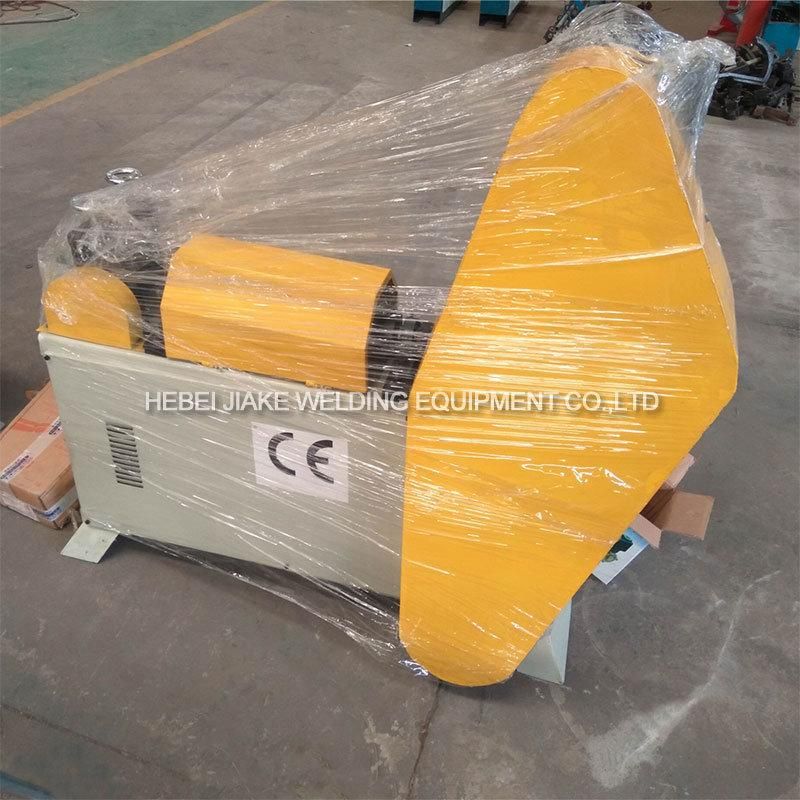

1. Wire straightening&cutting machine GT2-6
Automatic Anti-Climb Wire Mesh Fence Panels Welding Machine
Technical ParametersWire diameter2mm-6mmStraight motor2.2kwCutting length100-6000mmCut motor1.5kwCut error±1mmOverall size7.2*0.5*0.9mSpeed35m/minWeight300kg

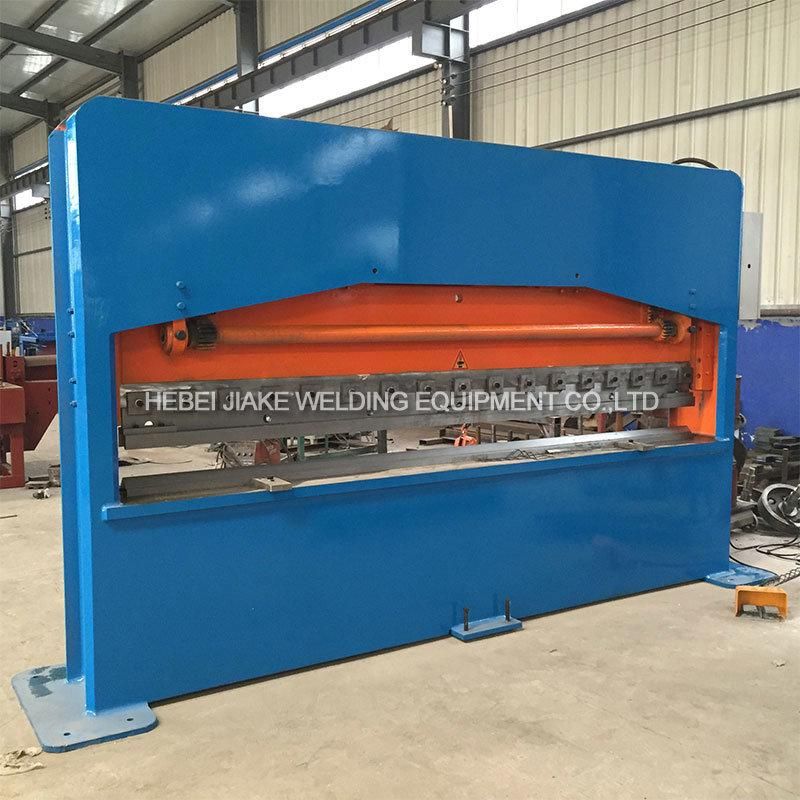

2. Fence mesh bending machine
Automatic Anti-Climb Wire Mesh Fence Panels Welding Machine
Technical Parameters Pressure100TNominal pressure800KNLength of work board3200mmWidth of work board450mmMotor power7.5kwSpeed1440r/minOil pump pressure20 APMOutput volume25litre/rMax. working pressure25GMPOverall dimensions3340*1000*2300mm

Best After-sales Service
1. Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date.
2. Within guarantee time, if any components are broken under normal condition, we can change for free.
3. We can send our best technician to buyer's factory for installation, debugging and training.
4. Complete installation instructions, circuit diagram, manual operations and machine layout.
5. Timely reply for your machine questions.

Company information:
Automatic Anti-Climb Wire Mesh Fence Panels Welding MachineAutomatic Anti-Climb Wire Mesh Fence Panels Welding Machine
We are a professional manufacturer of wire mesh machines in China. Our main products are:
Reinforcing mesh welding machine, Fence mesh welding machine, Roll mesh welding machine, Chicken cage welding machine, Automatic welded mesh machine, Wire straightening and cutting machine, Cold rolling ribbed machine etc.

Welcome to visit our factory!
