• Model NO.：JK-FS-2500A
• Style：New
• Warranty：1 Year
• Wire Diameter：2.5-6mm
• Mesh Opening Size：50*25-300*300mm
• Mesh Width：Max.2.5m
• Mesh Length：6m
• Control System：Panasonic PLC
• Raw Material：Ribbed Bar&Round Bar
• Welding Speed：45-75times,Min
• Power Supply：120kw

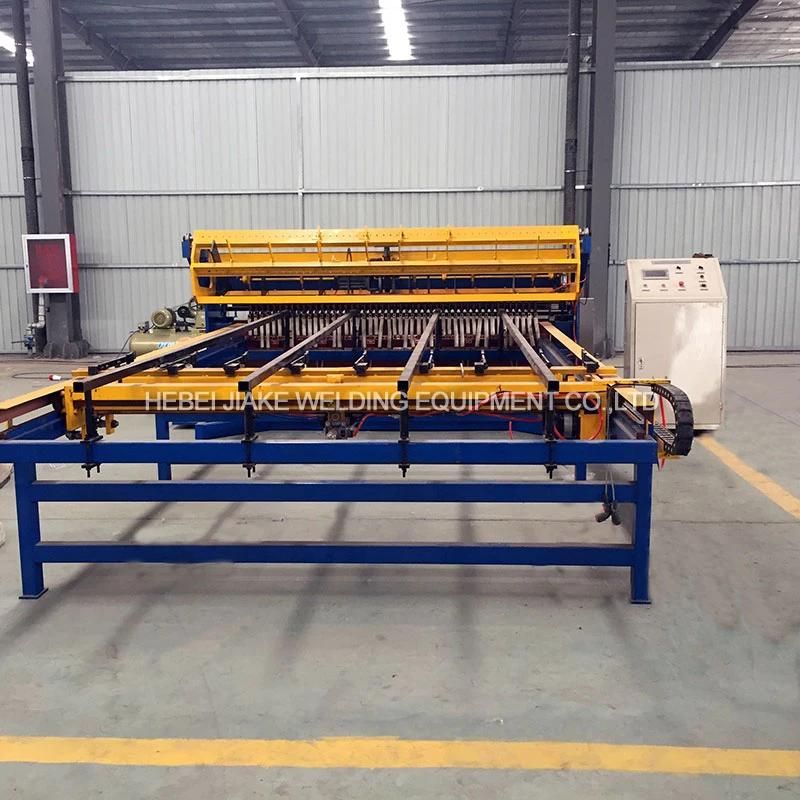

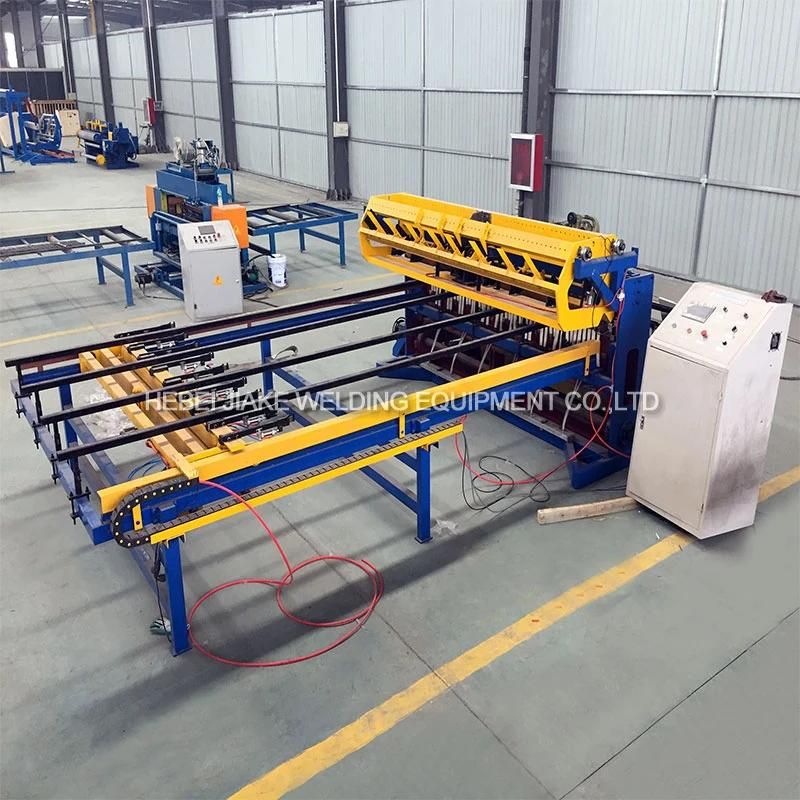

• Machine Name：Steel Reinforced Welded Wire Mesh Fence Machine
• Transport Package：Plastic &Wooden Box
• Specification：CE, SGS, ISO
• Trademark：JIAKE
• Origin：Anping, Hebei, China
• HS Code：8463300000
• Production Capacity：4500kg
• Package size per unit product：840.00cm * 320.00cm * 170.00cm
• Gross weight per unit product：4500.000kg

ModelJK-FS-2500AWire diameter2.5mm-6mmLongitude wire space50mm-300mmCross wire space25mm-300mmMesh widthMax.2.5mLongitude wire feedingPre-straightened &pre-cutWelding speed45-75times/minCross wire feedingPre-straightened &pre-cutWelding electrodes48pcsRated electrical power125kva*6pcsMachine size8.4m*3.2m*1.7mWeight4500kgPacking& delivery60days after we receive the prepaid
1. The bracket and auxiliary equipments will be with plastic package, spare parts in carton box.
2. The main machine will be fixed in the container by steel wireMachine description


1. Fence mesh welding machine is integrative welding machine, do without cutting edge (save material), adjustable of distance of Warp thread, input the distance of weft thread to computer, any character can be reach.
2. Our company developed weft putting in device, it make the putting in better than before, and we have apply the patent for this device.
3. Main usage: welding of fence mesh for railway, highway, bridge and building etc.
Our guarantee time: one year since the machine was installed at buyer's factory but within 18 months against B/L date.

Application: railway, highway, Bridges, buildings, such as residential fence and shelves, warehouse cage welding

Material: low carbon wire, galvanized wire.

Best After-sales Service

1. Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date.
2. Within guarantee time, if any components are broken under normal condition, we can change for free.
3. We can send our best technician to buyer's factory for installation, debugging and training.
4. Complete installation instructions, circuit diagram, manual operations and machine layout.
5. Timely reply for your machine questions.
