CE and ISO Metal Floor Deck Tile Roll Forming Making Machine
Cangzhou Dixin Roll Forming Machine Co., Ltd.- Type：Rolling Machine
- Forging Forming Method：Mold Forging
Base Info
- Model NO.：request
- Power Source：Hydraulic Pressure
- Feature：High Efficiency
- Certification：CCC, ISO9001, CE
- Warranty：12 Months
- Customized：Customized
- Advantage：Use Widely
- Condition：New
- Name：Building Floor Bearing Deck Steel Floor Tile Press
- Roller：24rollers
- Dimensions：10*1.45*1.51m
- Power：7.5+5.5kw
- Thickness of The Plate：0.8-1.2mm
- Productivity：8-10m,Min
- Material of The Cutting Blade：Cr12
- Diameter of The Roller：70mm
- Weight：About 6.8t
- Voltage：380V 50Hz 3phases
- Transport Package：Water-Proof Packaging, Covered with Plastic Film
- Specification：CE ISO
- Trademark：DIXIN
- Origin：Botou Hebei China
- HS Code：845522
- Production Capacity：20 Set Per Year
Description
1.Processing material
aluzinc/galvanized steel/colored steel coil
2.Material thickness
Max2mm
3.Feeding width:
1200mm
4.Effective width
1000mm As design
5.Main motor power
30kw
6.Pump station power
7.5kw
7. Shaft diameter
100mm solid shaft ,Surface of roller coated with chrome 0.05mm thickness
8.Forming steps
20 steps
9.Main frame
400H Steel frame
10. Side plate thickness
20mm
11.Roller material
45 # forged material, high frequency quenching, hard chromium plating
12.Control systerm
Panasonic PLC control with touch screen,Mitsubishi frequency converter ,Encoder(Omron)
13.Cutting blade material
Cr12
14.Working speed
About 15-20m/min
15. Transmission way
1.5 inch double chain
16. Machine size (mm)
About 11.8m*1.6m*1.6m
17.Power supply
380v,3phase,50hz or accodring to customer request
18 Electric Pre- cutter
Add a motor with chain drive
3.Main Components:
No
Name
Qty
1

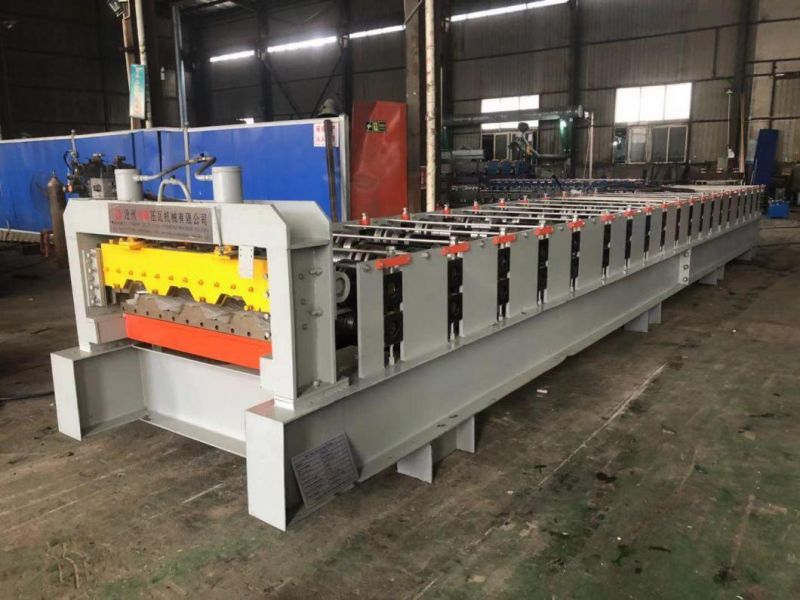

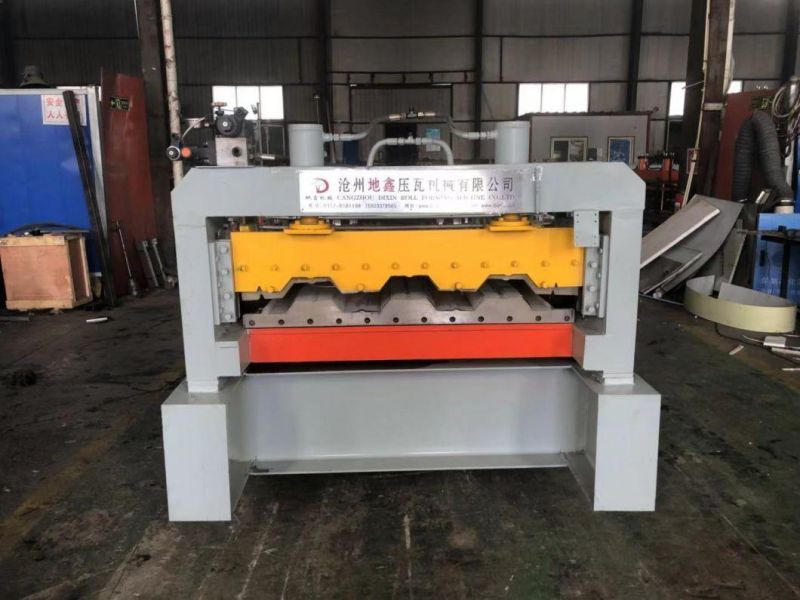

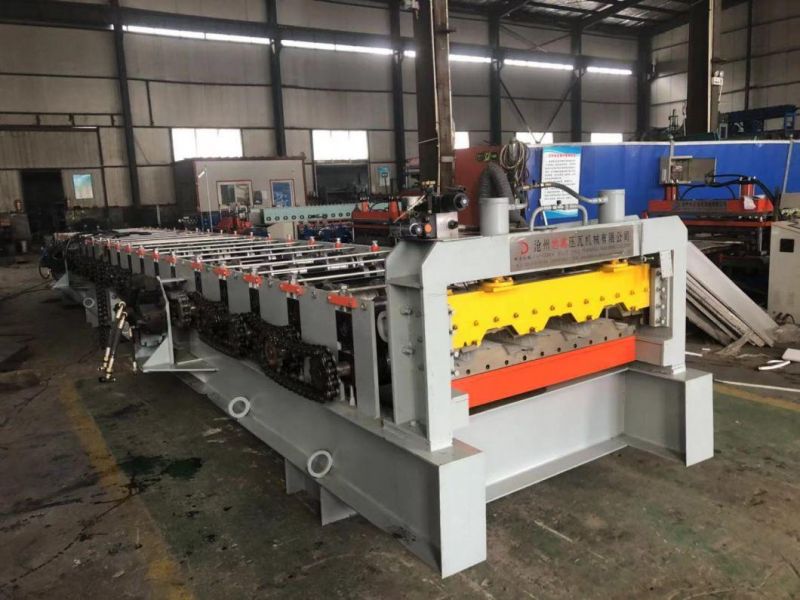

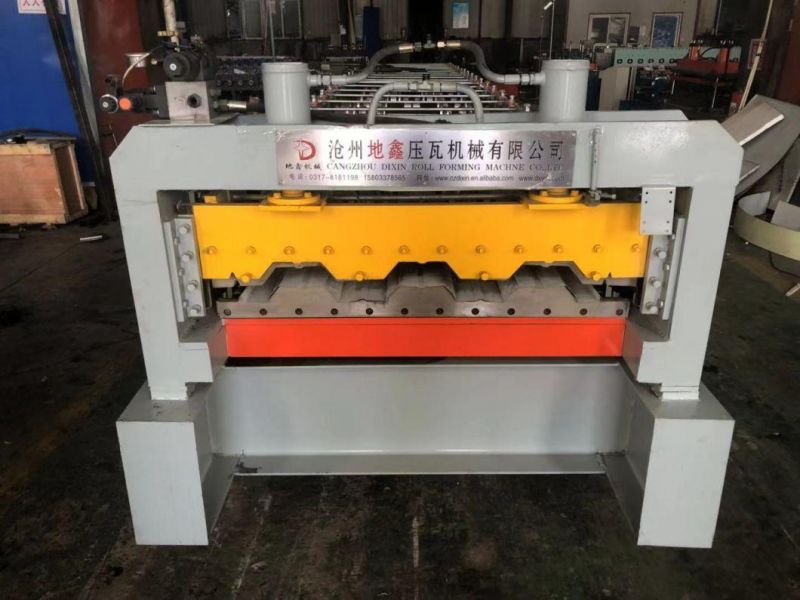

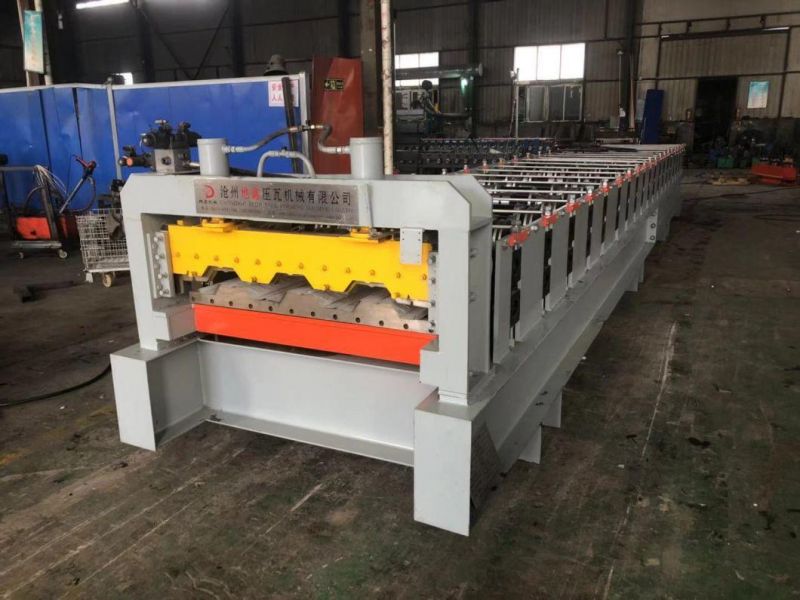

Main Rolling Machine
1set
2
10ton electric decoiler
1set
3
Hydraulic Cutting
1set
4
PLC control system
1set
5
Electric motor 7.5kw*2
2set
6
Hydraulic Pump Station
1set
7
Output table
2sets
8
Spare parts
1 box
Cangzhou Dixin Roll Forming Machine Co.,ltd is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and associated enterprises, concerning with the design, development and production of cold roll forming machines,material of building. We specialize in the automated production line of sheet cold roll forming machines. We are able to provide an integral resolution schema of cold roll forming system through a combination of advanced system design and equipment. Based on our advanced research and commercial team, we are able to research and development, manufacturing and sale of standard and non-standard cold roll forming equipment for our clients world widely.

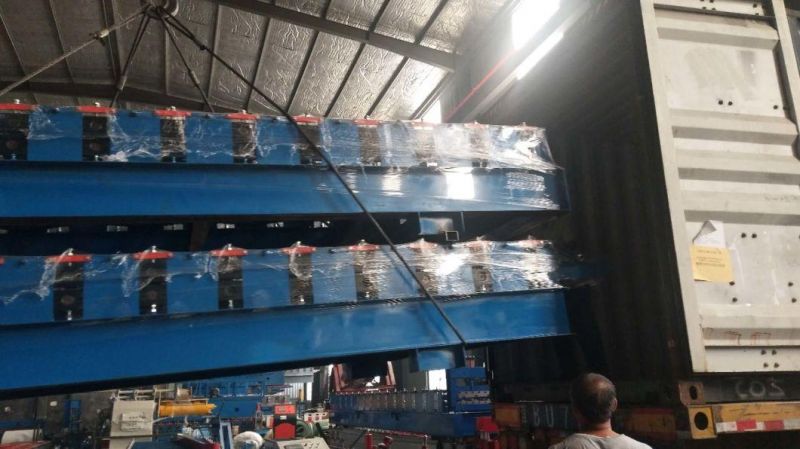

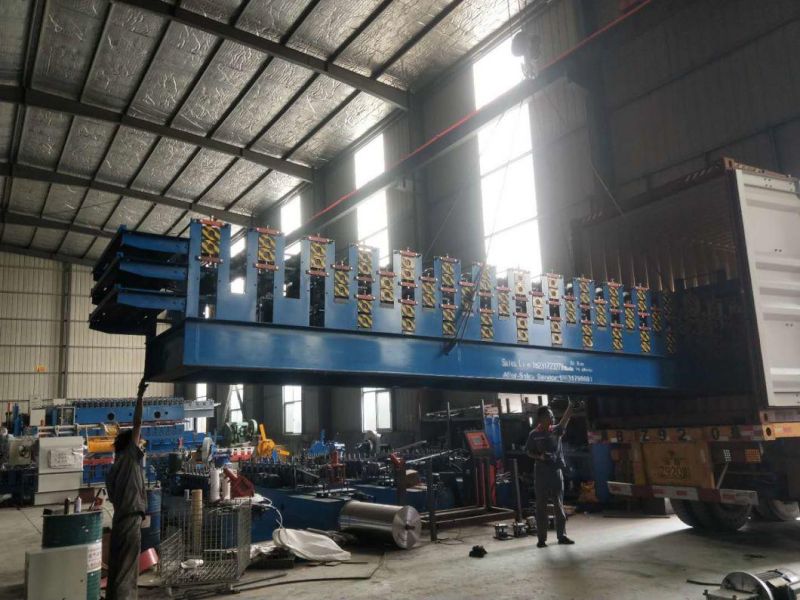

Packing and shipping details * 20 feet or 40 feet GP container.
* Main machine naked and fastened with iron wire in the container.
* Rollers were painted with painted with oil and packed with plastic film.
* Control box will be packed with carton box.
* Main roll forming machine package by plastic film.
* Main machine spare parts package by paper box.
* We have professional technicians for loading. Guaranteed the goods load into container without any damage.
* Transportation :machine need one 40 feet container to hold
* Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.
FAQ
Q1. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 12 months free warranty and free technical support for the whole life of any machine.
If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
