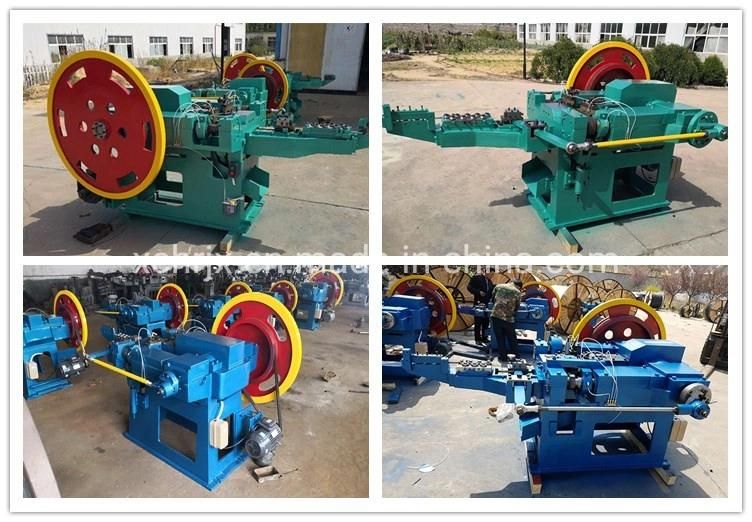

Z94-C Series High Speed Nail Machine Automatic Wire Nail Making Machine for Making Nails

Xuchang Huarui Machinery Co., Ltd.

After-sales Service：Online Support , Video Technical Support
Warranty：2 Years
Name：Nail Production Machine
Nail Making Speed：180-450PCS,Min
Motor Power：1.5-11kw
Weight：1.2-5t

Base Info

Model NO.：Z94-1C Z94-2C Z94-3C Z94-4C Z94-5.5C Z94-6C
Raw Material：Steel Wire
Color：Green(or Optional)
Output：80-2000kg,8h
Final Product：Different Size of Nails
After Sales Service：Engineers Available to Service Machinery Overseas
Customized or Not：Yes
Transport Package：Export Wooden Package
Specification：L(1.5-3.4M)*W(1.3-1.9M)*H(1.1-1.6M)
Trademark：Huarui
Origin：Henan, China
Production Capacity：200sets,Month

Description

Remarks: this machine comes with descaling machine and discharging machine Z94-C Series High Speed Nail Machine Automatic Wire Nail Making Machine for Making Nails

Z94-C Series High Speed Nail Machine Automatic Wire Nail Making Machine for Making Nails

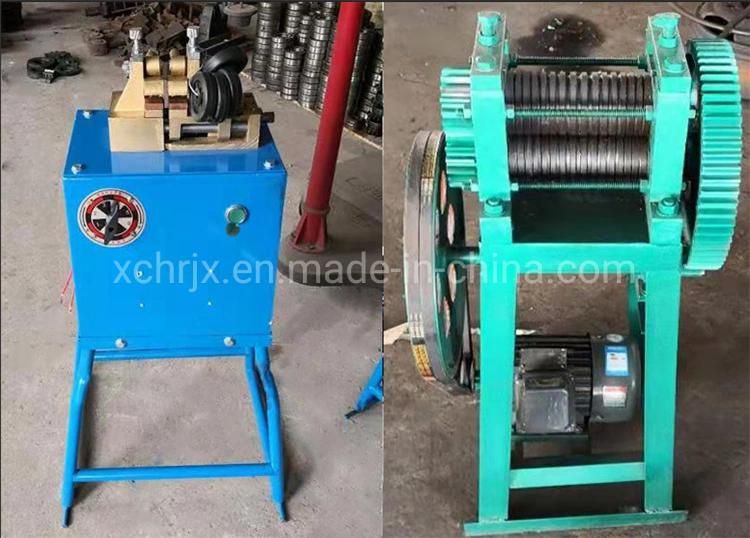

2. Pointing rolling machine(accessory machine for wire drawing machine): This machine is used to sharpen the head of the wire, then it can enter the wire drawing machine.Model No.Rolling pointed rangeMotor powerOverall sizeWeightPointing rolling machine≤8mm2.2kw1.2*0.6*1.0m80kg3. Butt welding machine(accessory machine for wire drawing machine): This machine is used to weld two wires coil together. When one wire coil finish drawing, this machine can connect the next wire coil to continue to be drawn by the wire drawing machine.Model No.Butt weld rangeVoltageWeightButt welding machineφ3-φ8mm380V 50HZ50kg
Z94-C Series High Speed Nail Machine Automatic Wire Nail Making Machine for Making Nails

Model No.

Nail diameter

Nail length

Motor

Speed

Overall dimension

weight

Z94-1C

0.9-1.6mm

9-25mm

1.5kw

450pcs/min

1.5*1.3*1.2m

0.8ton

Z94-2C

1.2-2.8mm

16-50mm

2.2kw

380pcs/min

1.7*1.3*1.4m

1.15ton

Z94-3C

1.6-3.5mm

25-75mm

3.0kw

320pcs/min

2.0*1.4*1.4m

1.35ton

Z94-4C

2.8-4.5mm

30-100mm

4.0kw

260pcs/min

2.2*1.6*1.65m

1.8ton

Z94-4C(2)

2.8-5.0mm

50-120mm

4.0kw

260pcs/min

2.32*1.55*1.3m

2.0ton

Z94-5.5C

3.5-5.5mm

75-150mm

5.5kw

220pcs/min

2.5*1.6*1.5m

2.2ton

Z94-5C(2)

3.0-6.5mm

80-220mm

5.5kw

130pcs/min

3.1*1.7*1.65m

2.7ton

Z94-6C

3.0-8.0mm

80-220mm

7.5kw

130pcs/min

3.1*1.7*1.65m

4.5ton

Z94-6C(2)

4.0-8.0mm

80-220mm

11kw

160pcs/min

3.22*1.82*1.5m

4.5ton

Z94-6C(3)

5.0-10.0mm

150-320mm

11kw

160pcs/min

3.32*1.75*1.55m

4.6ton

5. Nail polishing machine: this machine is auxiliary equipment of nail making machine. When the nails have been made by the nail making machine, it will be not very bright. The user can use this machine to polish the nails to let it brighter, smoother and anti-rust.Model No.Motor PowerDimension(L*W*H)CapacitySD-4002.2kw1.64*0.9*1.0m400kgSD-10007.5kw2.0*1.5*1.4m1000kg Z94-C Series High Speed Nail Machine Automatic Wire Nail Making Machine for Making Nails

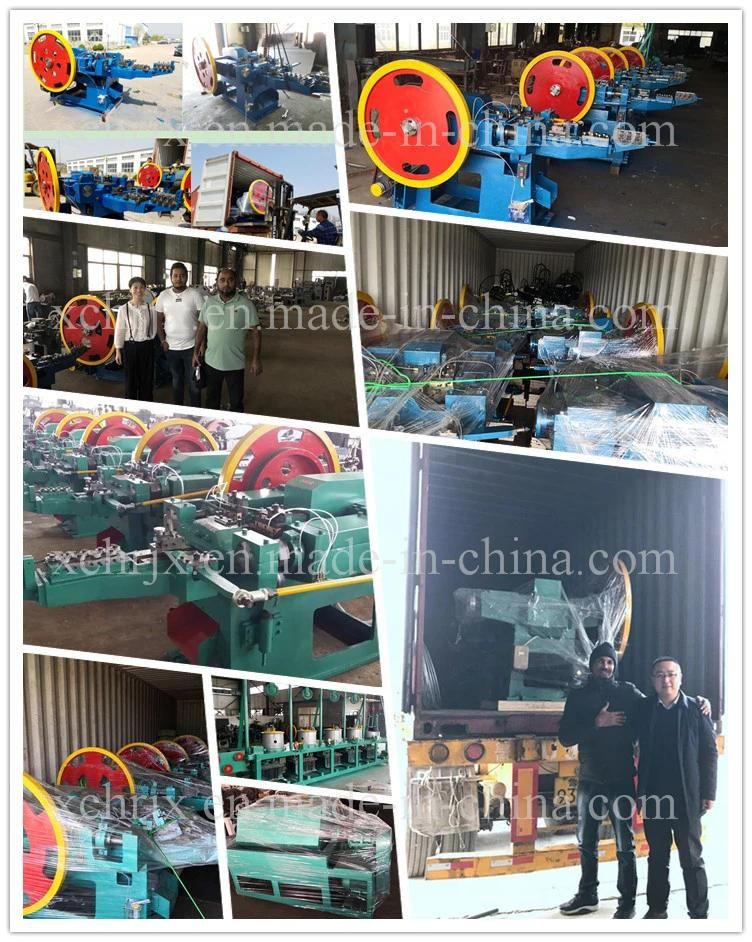

6.Shipping and package

7.Clients Visiting Z94-C Series High Speed Nail Machine Automatic Wire Nail Making Machine for Making Nails

FAQ

1. Make response to customer's inquiry or requirement within 24 hours.

2. Assist customer to select the most suitable machine and give them our professional suggestion.

3. Produce machine by our experienced team according to customer requirement.

4. Provide customer operation manual or video for machine to help them operate machine more efficiently.

5. Provide customer layout of workshop with machine to help them install machine.

6. Assign engineer to assist customer to install machine.

7. Offer 2 year guarantee for our machines.
