• Model NO.：DLM-0817
• Condition：New
• Weight：270kg
• Size：904*592*1475mm
• Color：Green
• Transport Package：Wooden Case
• Specification：Export Standard
• Trademark：DL
• Origin：China
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. DLM-0817 Condition New Weight 270kg Size 904*592*1475mm Color Green Transport Package Wooden Case Specification Export Standard Trademark DL Origin China Production Capacity 100 PCS/Month

Product Description

DLM-0817 insulation forming machine

Top quality
Timely delivery
Professional service

DLM-0817 insulation forming machine
Insulation forming machine

FUCTION:

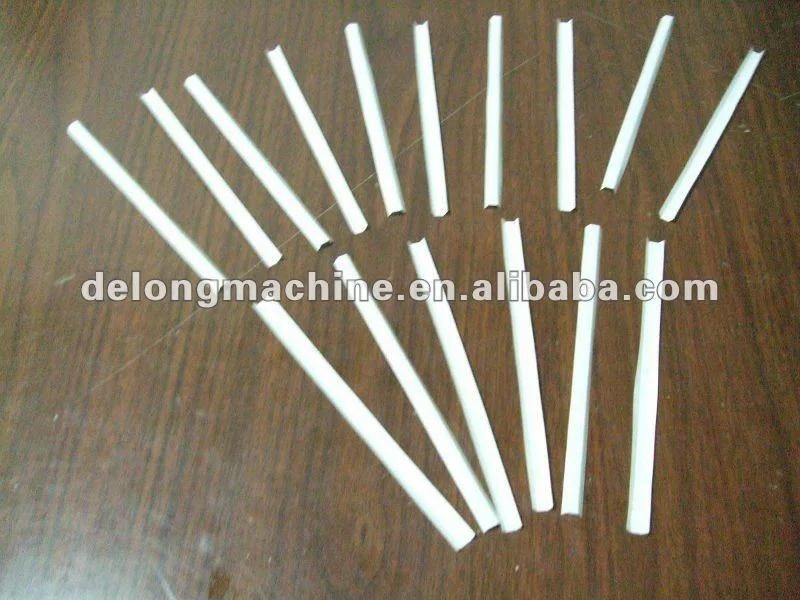

Adopting the mode of horizontal mechanical transminssion and hot-rolled forming, it can automatically and continuously complete paper transferring, forming and cutting. Preheating unit is set before the forming of insulating paper to regulate the preheating temperature according to the forming requirements, it can be used for insulation paper coil stock with different thickness and width through the mold replacement, and can satisfy the slot insulation demand when artificially inserting wire in small and medium-sized motors.

Feeding Length: 20-130mm
Feeding Accuracy: +0.5mm
Forming Angle: 60° - 120°
Roll Width: 9-16mm
Material Thickness: 0.18-0.3mm
Power Source: 380V/50Hz
Power: 750W
Tact Time: 0.4s/sheet
Weight: 270kg
Dimension(Lx W x H): 904x 592x 1475mm
