• Model NO.：COLO-L-01
• Condition：New
• Brand Name：Colo
• Size：Custom-Made
• Voltage：110V,380V
• Transport Package：Wodden Case
• Specification：CE
• Trademark：COLO
• Origin：Hangzhou. China
• HS Code：8424899990
• Production Capacity：30PCS

Basic Info.

Model NO. COLO-L-01 Condition New Brand Name Colo Size Custom-Made Voltage 110V/380V Transport Package Wodden Case Specification CE Trademark COLO Origin Hangzhou. China HS Code 8424899990 Production Capacity 30PCS

Product Description

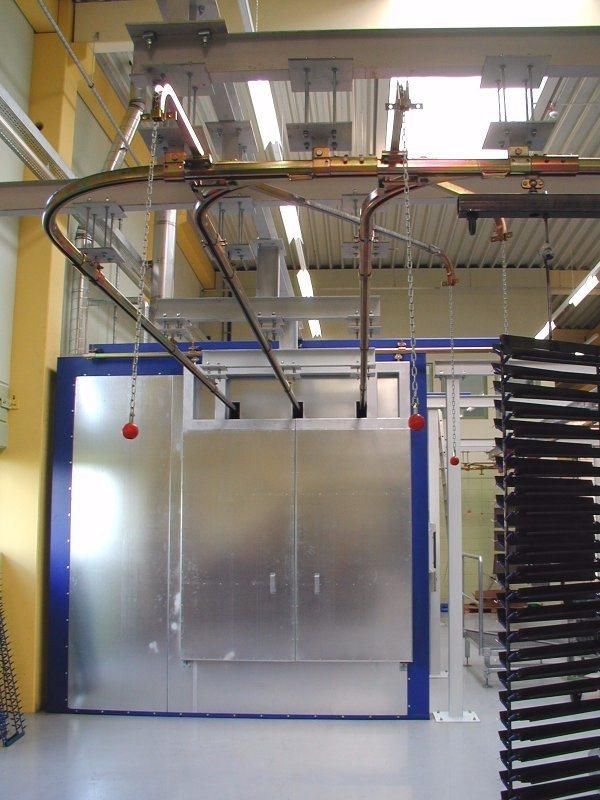

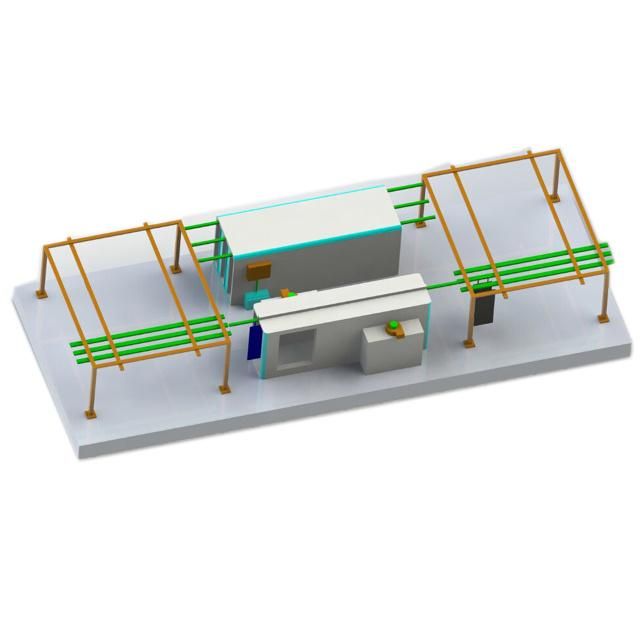

Batch Electrostatic Powder Coating Painting Plant for Aluminum Profile

Including powder coating gun, powder coating booth and powder curing ovens, conveyor,this manual powder coating equipments gives an easy and quick start of powder coating businesses. efficient and econimical solution for long part with conveyor , such as aluminum profile, door,window, which need spray two side at same time. could design the size according to your parts.


Manual Powder Coating Plant for different dimensions products. A very flexible plant that you can coat different kind of products depending customers needs.The transportation of the products can be manual with rails and tracks.


Size can be ordered by the request

conveyor trolley :	500kg loading
curing oven size:	L5.8x W1.8x H2m
Heating method:	GAS with 100000 Kcal burner
Spray booth size:	L6 x W1.8 x H2m
Fan motor	3kw,380V 3phase 50Hz
Total power	50kw,380V 3phase 50Hz

Specification:

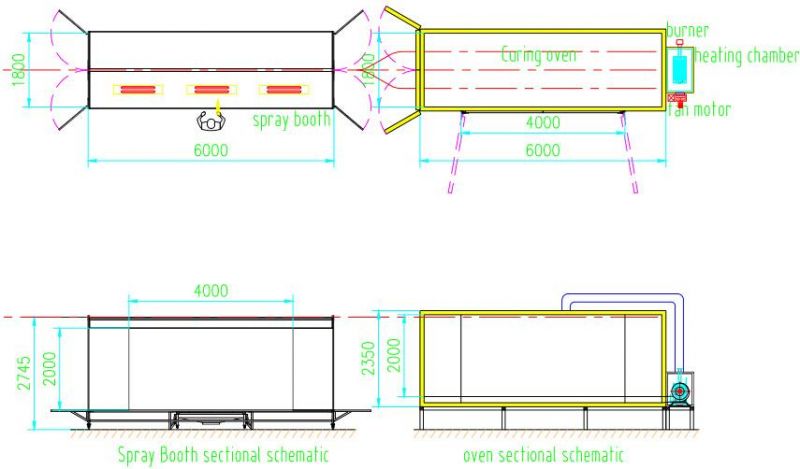

1.Spray booth:
Inner size: L6 x W1.8 x H2m
Booth board: SPCC/= 1.5mm Bending and forming
Under frame:4 # square tube
booth bottom:with removable hoppers

2.curing oven
inner Size :L5.8x W1.8x H2m
Warm board: Thickness 100mm, edge SPGCC t=1.5mm
Burner of oven: 100,000 Kcal  ,1 pcs (Riello)
fan motor: 3KW  1pcs,

3.spray gun:manual 1pcs


NOTES

Listing and specifications are provisional and subject to change without notice for improvements or updates.
Director: Oven and spray booth powder galvanized steel structure and painted steel conveyor
Rock wool insulation with a thickness of 150 mm and a density of 100 kg m3. SAV; Supply of spare parts
APPLICATIONS

Loading form our factory

Factory details

Any question,feel free to send your email.
