• Model NO.：KF-X1
• Condition：New
• Name：Aluminium Profile Powder Coating Machine
• Application：Any Metal Surface
• Voltage：220V,110V
• Frequency：50-60Hz
• Max Voltage：100kv
• Gun Weight：500g
• Packaging：Wooden Case,Carton
• Delivery：1-3 Working Days
• Payment：100% in Advance
• Item：Powder Coating Machine
• Transport Package：Carton
• Specification：123x80x49 cm
• Trademark：COLO
• Origin：China
• HS Code：8424899990
• Production Capacity：800sets,Year

Basic Info.

Model NO. KF-X1 Condition New Name Aluminium Profile Powder Coating Machine Application Any Metal Surface Voltage 220V/110V Frequency 50-60Hz Max Voltage 100kv Gun Weight 500g Packaging Wooden Case/Carton Delivery 1-3 Working Days Payment 100% in Advance Item Powder Coating Machine Transport Package Carton Specification 123x80x49 cm Trademark COLO Origin China HS Code 8424899990 Production Capacity 800sets/Year

Product Description

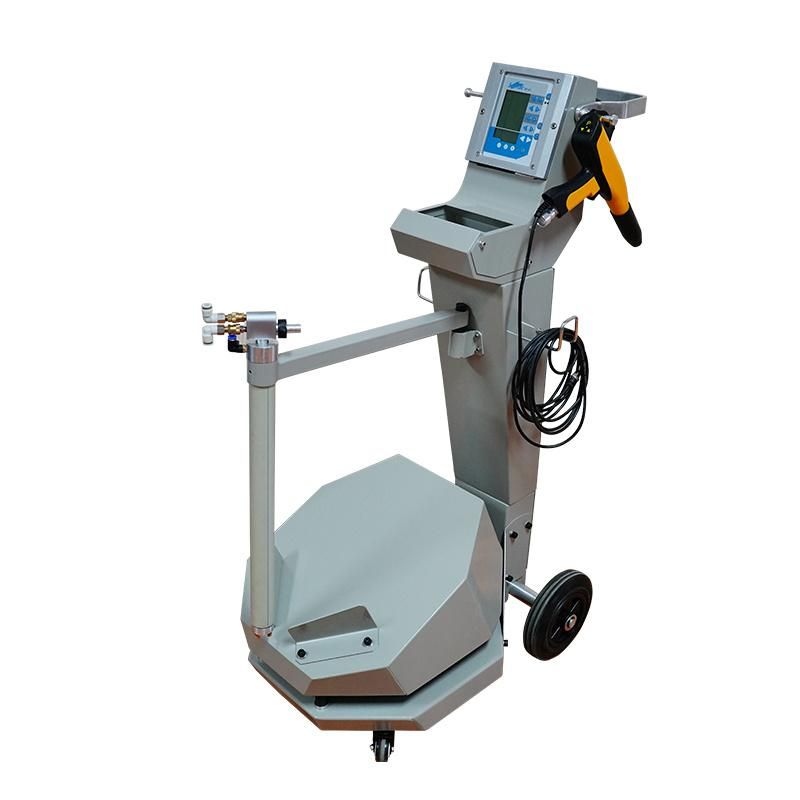

Manual aluminum powder coating spray machine for wheel

KF-X1 powder coating machinery is the latest model with more perfect functions, intelligent powder gun controller offers more accurate powder output and adjustment of parameters to ensure an optimum powder coating result. Powder coated parts feature better corrosion resistance, excellent mechanical performance, impact resistance and flexibility.

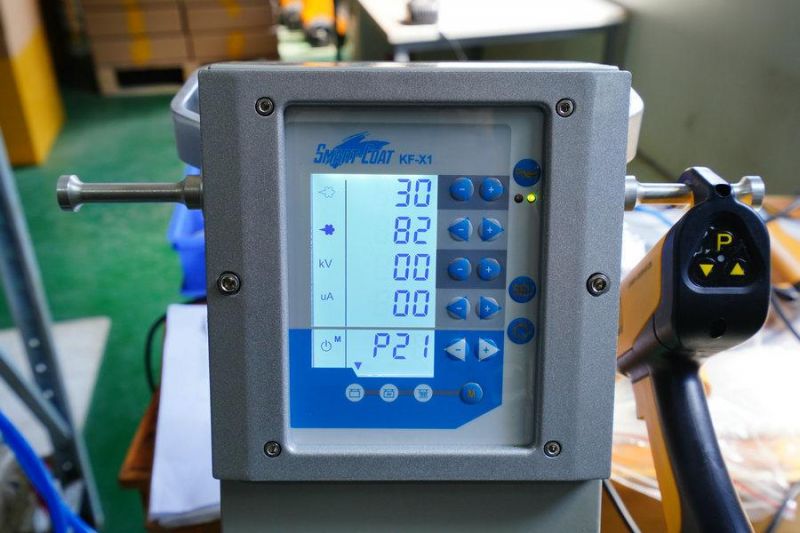

Powder Gun Controller of KF-X1 Powder Coating Gear Powder Coating Machinery
1. Three preset standard programs:
Flat parts program is ideal for spraying panels and flat parts.
Complex parts program is designed for some parts with complex shapes and deep corners.
Recoat program is optimized for parts which have already been coated.

2. Support to store coating programs up to 20, features convenient to spray the same type products next time.

3. Digital air flow technology for more accurate pneumatic data setting, ensures better atomization.

4. The precise powder output is able to control the thickness of coating film, results a consistent powder coating effect.

5. Voltage and current could be adjusted flexibly ( Voltage 0-100kV, Current Max.180μa ).

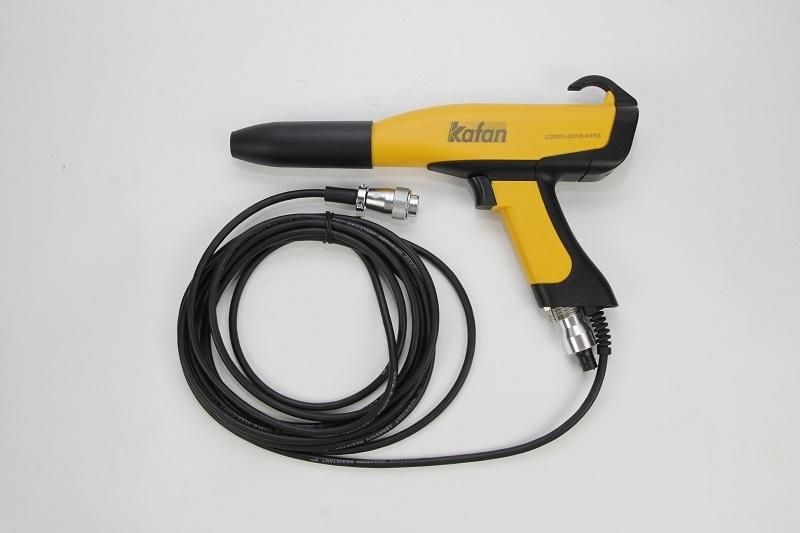

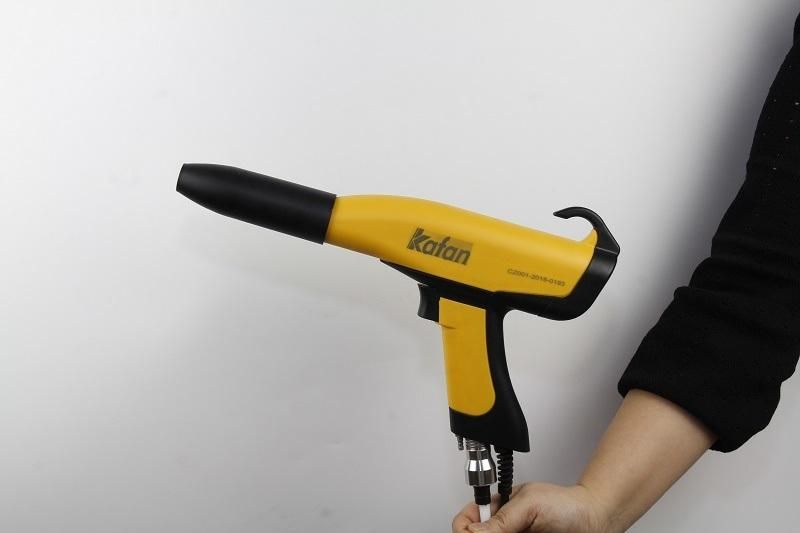

COLO-08 Powder Coating Spray Gun



1. Only 500g powder gun body maintains all practical functions, ergonomical design is able to reduce operators' fatigue from working long hours.

2. 100 kV manual spray gun maximizes powder charging capacity meanwhile ensures safe operation and efficiency during long lasting use.

3. Nozzles are made of non-stick materials, professionally designed to minimize powder accumulation as well as enhance penetration ability.

Technical Specifications of KF-X1 Powder Coating Gear Powder Coating Machinery



Voltage	AC 220V / 110V
Frequency	50-60Hz
Power	50W
Output Voltage	DC24V
Max Voltage	0-100 KV adjustable
Max Powder Injection	600 g/min
Max input air pressure	10 kg/cm
Optimum input-air pressure	6 kg/cm
Minimum input-air pressure	4 kg/cm
Maximum water vapor content or compressed	1.4 g/Nm3
Maximum oil vapor content of compressed air	0.1 ppm
Maximum compressed -air consumption	13.2 m3/h
Temperature Range in Use	-10 ºC-50 ºC
Gun Weight	500g
Maximum Output Current	180μA
Polarity	negative

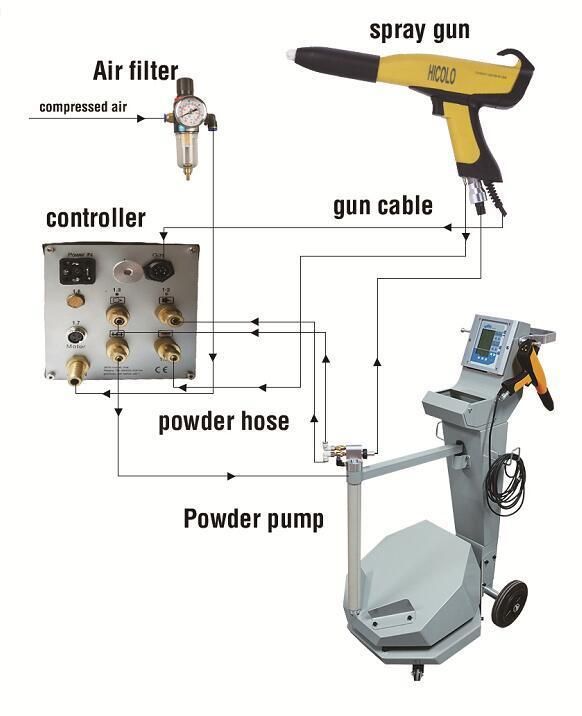

How to install the KF-X1 Powder Coating Gear Powder Coating Machinery?

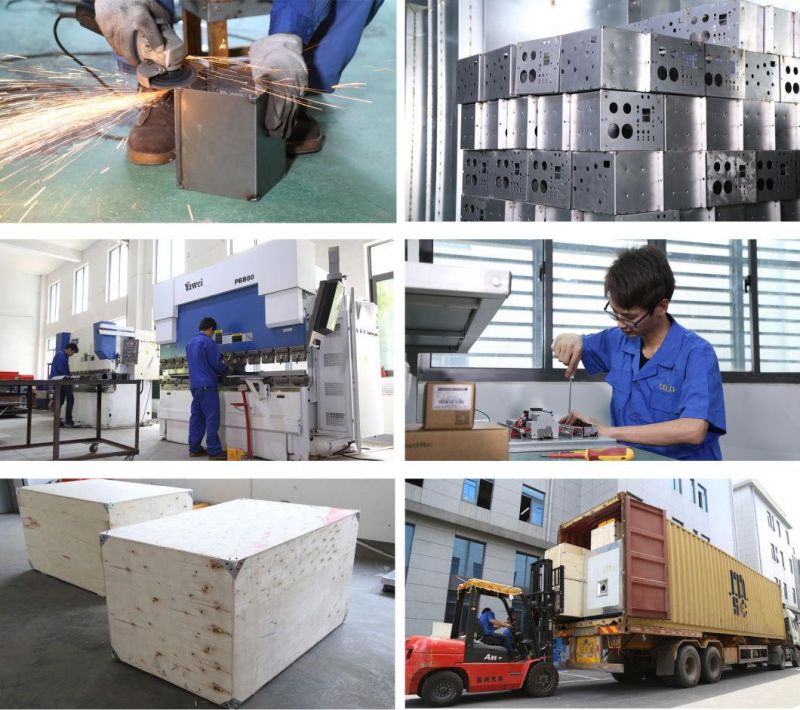

Feifu Company

We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. Meanwhile our engineer is available to supply support abroad to our customer.
