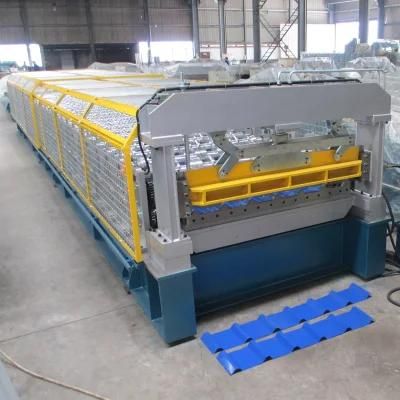

• Model NO.：1450mm roll forming machine
• Feature：Automation
• Certification：ISO9001, CE
• Warranty：12 Months
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Name：1450mm Roll Forming Machine
• Thickness：0.3-0.7mm
• Coil Width：1220,1450mm
• Main Power：7.5kw
• Size：About 11450*1900*1600mm
• Machines Weight：About 9600kgs
• Cutter Material：Cr12 Mould Steel Being Quenched Treatment
• Guarantee Time：First Year Free, Lifetime Services
• Rollers Material：No.45 Forged Steel, Plated with Hard Chrom
• Controlling System：Mitsubishi PLC & Converter
• Transport Package：40gp Container for One Machine
• Specification：CE SGS BV Soncap
• Trademark：zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：15sets,Month

Item
Specification TypePre-painted steel coil & galvanized coilsMaterialThickness (mm)0.3-0.7 Yield strength (mpa)235-345Roller material45#Chrome steelForming speed(m/min)About 20Speed adjusting modeAC FrequencyRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mould steel Length measurementEncoderControl modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power (kw)7.5 kw  (Depend on final design)Hydraulic station power 2.2 kw (Depend on final design)Total power (kw)9.7 kwUncoiler's loading capacityMax. Capacity: 5000kgs (can be increased to be 10T)Machine`s sizeAbout 11450*1900*1600mm (Depend on final design)

Machine components:
Decoiler (manual decoiler and hydraulic decoiler for option)    1 set
Feeding & guiding device     1 set
Main roll forming machine    1 set
Hydraulic cutting system     1 set
Controlling system           1 set
Run out table (auto. Stacker for option)       2 pcs
Packing:
1. One 40feet container for loading one set machine with mechanical decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.

Delivery : about 60 days after received advaced payment



About us

We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.
1.  Capacity: 12-15 sets/month
2.  Delivery: in only 5-8 weeks for urgent order
3.  Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
     --from raw material to the final high-precision forming machine. We have our precise tooling center.
5.  You can rely on our team!
      We have engineers with experience more than 15 years in metal forming industry.





Get Free:
"Send" below get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
