• Model NO.：1325,1525,1530
• Model No.：Gd 1530

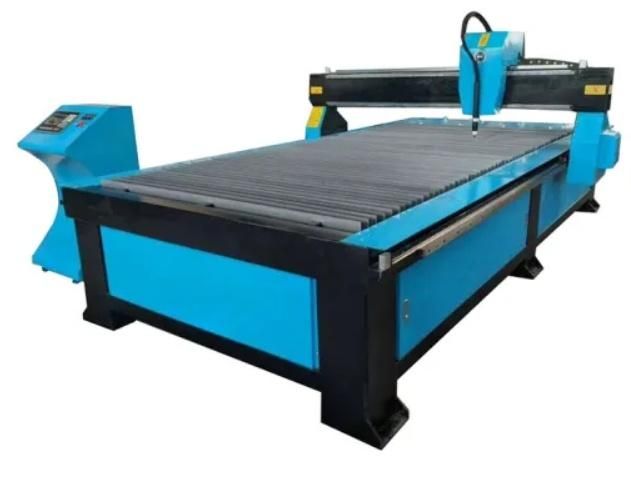

• Name：Plasma Cutting Machine
• Working Area：1500*3000mm
• Power Supply：Huayuan Power
• Motor：Stepper Leadshine Motor and Driver
• Control System：Starfire or Start
• Working Mode：Non-Contact Arc
• Process Precision：0.05mm
• Cutting Thickness：Depend on Current of Plasma Power Source
• Rails：Taiwan Square Rails
• Software：Windows,2000,XP
• Cutting Speed：15-20m,Min
• Repeat Positioning Accuracy：0.05mm
• Input Voltage：3 Phase 380V for Power Source, 220V for Machine
• Z Axis Stroke Size：150mm
• Transport Package：Wood Cabinet
• Specification：3100X1700X1300mm
• Trademark：Guandiao
• Origin：Shangdong, China
• Production Capacity：10000pieces,Year

Basic Info.

Model NO. 1325/1525/1530 Model No. Gd 1530 Name Plasma Cutting Machine Working Area 1500*3000mm Power Supply Huayuan Power Motor Stepper Leadshine Motor and Driver Control System Starfire or Start Working Mode Non-Contact Arc Process Precision 0.05mm Cutting Thickness Depend on Current of Plasma Power Source Rails Taiwan Square Rails Software Windows/2000/XP Cutting Speed 15-20m/Min Repeat Positioning Accuracy 0.05mm Input Voltage 3 Phase 380V for Power Source, 220V for Machine Z Axis Stroke Size 150mm Transport Package Wood Cabinet Specification 3100X1700X1300mm Trademark Guandiao Origin Shangdong, China Production Capacity 10000pieces/Year

Product Description

Specifications:

Model	1325 1530 2030 (cnc plasma cutting machine)
Working area	1300x2500mm or 1500x3000mm or 2000x3000mm or 2000*6000mm
working table	serrated table(sawtooth) (If choose blade table, can cheap 100$)
Machine Structure	Channel steel lathe bed/heavy duty
Rails	Taiwan Hiwin Square rails (ABBA option)
Motor	Stepper motor and driver (Servo option)
With air compressor	To cool the cutting head, blow away the slag
Cutting speed	15-20m/min
Cutting thickness	Depend on current of plasma power source
Power supply	Huayuan Power (USA Hypertherm for option) 63A 100A 120A 160A 200A 300A
Control system	STARFIRE or START or FANGLING
Software	Fastcam /Artcam/Type 3
Steel blade saw tooth mesa	Ray plug drives 860
Working mode	Non-contact arc
Automatic striking the arc	stable performance, striking the are success rate above 99%.
Repeat positioning accuracy	±0.05mm
Process precision	±0.05mm
File transfer mode	USB interface
Input voltage	3 phase 380V for power source, 220V for machine
Packing	international standard plywood case packing.
Machine size	For 1530, packing size:  2280*3850*1850mm
Net/Gross weight	1600kgs/1800kgs

Product Description





 Feature:1. Beam with light structural design, the structure has good rigidity, light weight, exercise inertia and low cost.
2. Gantry-type structure, Y-axis synchronous dual-motor drive and XYZ axis with circular rail (optional formula-type linear
guide), steady transmission, and high accuracy.
3. For advertising solid light, groove metal panel and bottom plate of the word for cutting, cutting accuracy good indicator. If
equipped with the U.S. Treasure plasma power can achieve lower laser cutting machine.
4. And other advertising devices(vacuum forming machines, gear cutting machine) to form ad word processing pipeline, completely
solve the traditional way of manual processing. Improve efficiency several times.
5. Cutting speed, high accuracy and low cost.
6. CNC system configuration high, automatic arc, stable performance, the success rate of 99% arc.
7. Support Wentai, Beihang Haier, ARTCAM, Type3 software such as the standard G code path generated file can also be read by
software conversion software such ad AUTOCAD generated DXF formats. U disk exchange control system processing files, easy to
operate.
8. Plasma torch power supply and supporting all famous brands, a number of national patents by the manufacturers

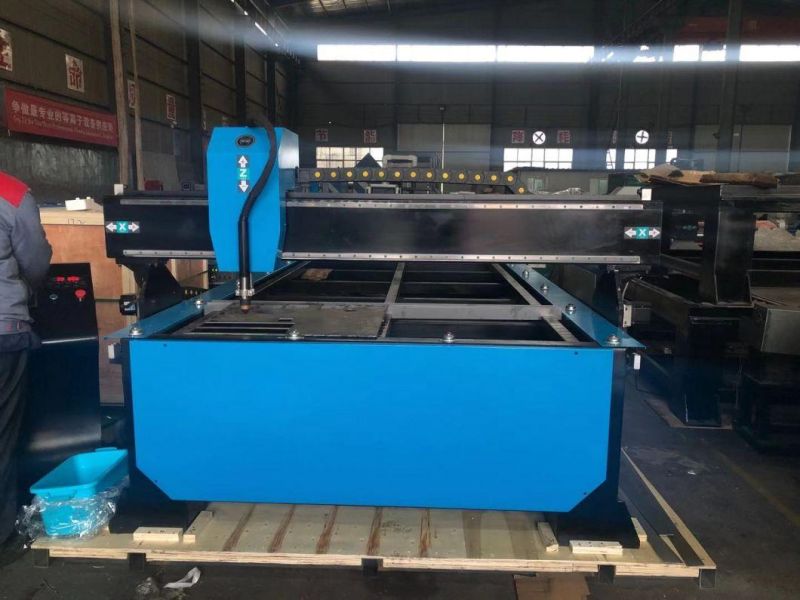

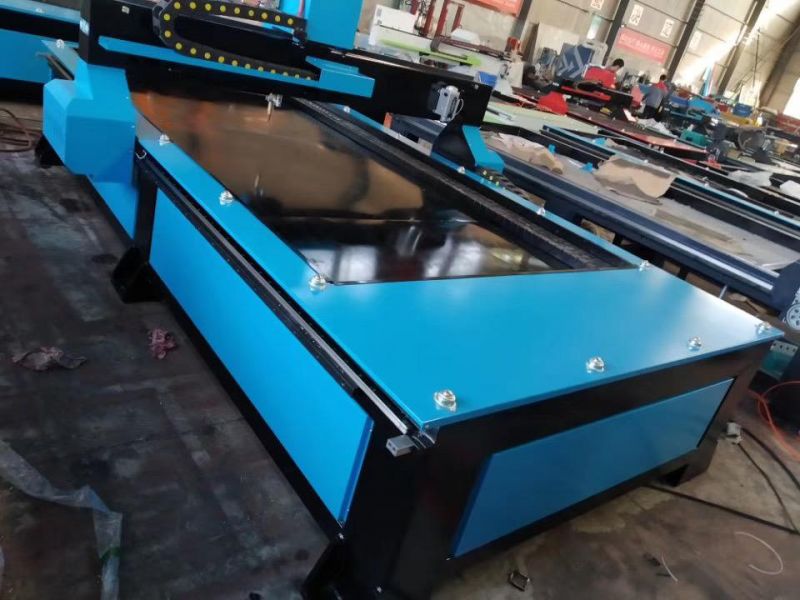

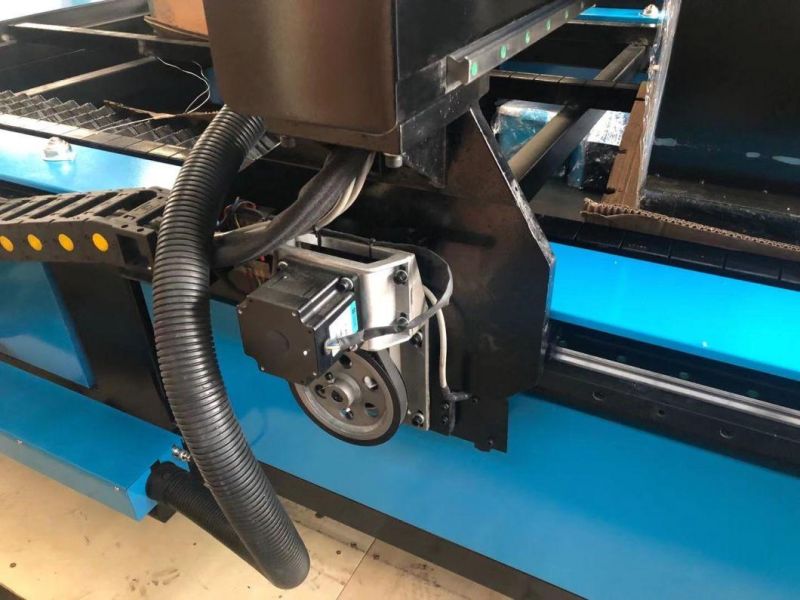

Detailed Images

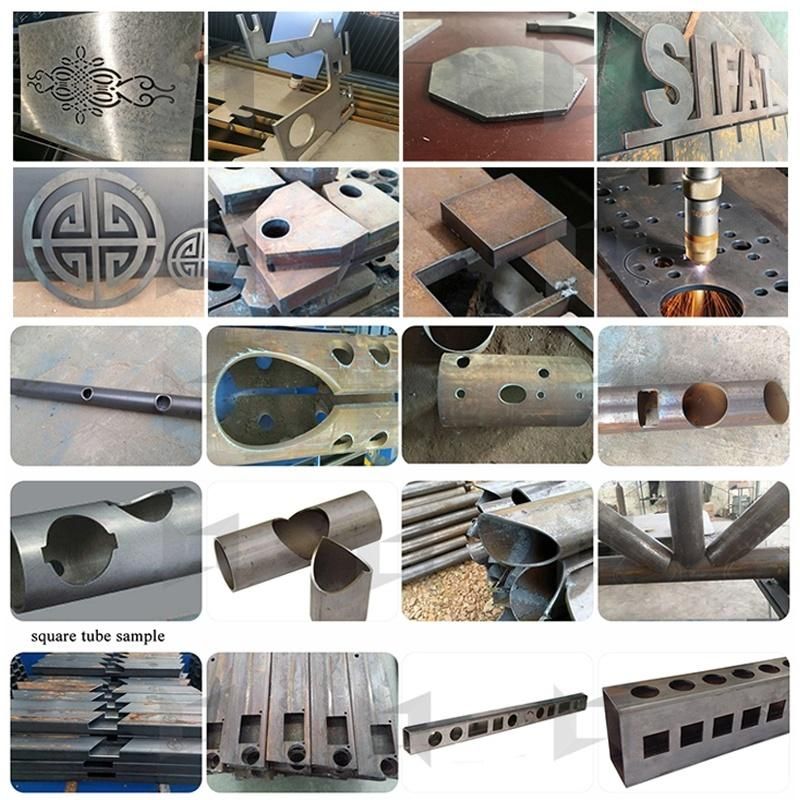

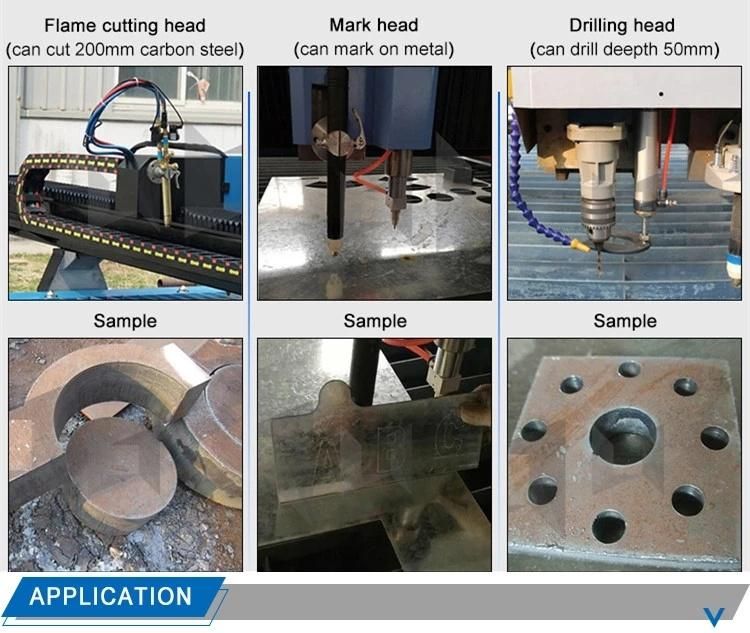

ApplicationIndustry: Ship Building, Construction Equipment, Transport Equipment, Aerospace Industry, Bridge Building, military industrial, wind power, Structural Steel, Boiler containers, Agriculture Machinery, Chassis electrical cabinets, Elevator manufacturers, Textile Machinery. Materials: All kinds of metal materials such as steel, copper, aluminum and stainless steel can be processed. Applies to iron plate, aluminum plate, galvanized sheet, White Steel plate, Titanium plates, and so on like the sheet metal

Packing&Shipping
After Sales Service
1.24 hours online by Ali Trademanager, Skype, Email, QQ, Whatsapp or telephone.
2.We will provide free training, free maintenance, free technical upgrading,
3.We accept the ODM, OEM
4.Oversea agents wanted, if any interest, pls let me knowCompany IntroductionShandong Guandiao CNC Equipment Co., Ltd is an innovative enterprise engaged in research and development, production, sales and good after- sales service. The company's main products include Panel furniture CNC cutting machine, Woodworking CNC Machining Center, CNC router, Multi-head cylinder CNC engraving machine, Styrofoam CNC router, 3D scanner, Vacuum membrane press machine, Vacuum forming machine, Laser engraving and cutting machine, etc.

After nearly 10 years of development, the company has a perfect technical team, clear labor division, ensuring the high quality products sent to the whole country, to the world.
We offer our customers best solutions, including product design, installation, training, aftersales service, etc. With the market development demand as the orientation, we stick to innovate and improve technology continuously, to the peak of CNC industry is our relentless drive.
FAQA: We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer"
online, with telephone or Skype explain.
2. ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.
3. Can I visit your factory?
A: Yes! We greatly welcome customers to visit our factory!
4. What is your MOQ?
A: Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
