Electrostatic Spray Paint Gun, Coating Machine
Yangzhou OURS Machinery Co., Ltd.- After-sales Service：on-Line Support Service
- Warranty：1 Year
- Type：Coating Spray Gun
- Coating：Painting
- Substrate：Steel
- Certification：ISO
Base Info
- Model NO.：OURS-908
- Condition：New
- Power：50-60Hz
- Voltage：110V,220V,380V
- Weight：as Per Design
- After-Sales Service Provided：Engineers Available to Service Machinery Overseas
- Transport Package：Carton or Wooden Cases
- Specification：Standard
- Trademark：ourscoating
- Origin：Yangzhou, Jiangsu
- HS Code：84242000
- Production Capacity：10sets,Year
Description
Technical description:High voltage module is close to the nozzle so the voltage loss is low and removable high-voltage components brings convenience to the maintenance.The design of central gas in 2 lines makes pole needle and diversion conductor do not accumulate powder any more, strengthens the discharge effect, improves the powder rate, and the rotary atomizing airflow greatly improves the coating quality.Two flow meters displays powder status intuitively and reasonably. It still can achieve high powder volume under the small air pressure because using the mass flow pneumatic components. Various powder spraying modes are built in to answer the spraying of dead angles and grooves, avoid troubles during spraying. All the parts of all stainless steel powder tanks can be easily disassembled without tools, and can be cleaned conveniently and quickly.
Technical parameters:
1.Input voltage: one phase 200-240V 50Hz
2.Solenoid valve control voltage:24VDC max3w
3.Input voltage:0-9VAC
4.Input power:40VA
5.Input pressure:0-8bar
6.Power frequency: about 20KHz
7.Output voltage:eff.10v
8.Output pressure:0-5bar
9.Input current:0.8A maximum
10.Output frequency: about 20KHz
11.Output current:max.1.2A
12.Gun weight: about 460g
13.Power cable: about 2m
14.Safety level:IP64
15.Pneumatic control voltage:24VDC
16.Output powder volume: 500g/min (5bar/h)

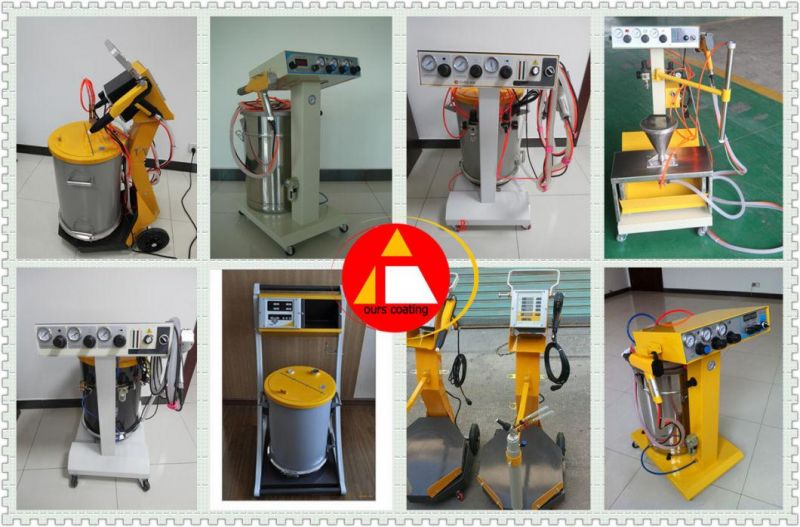

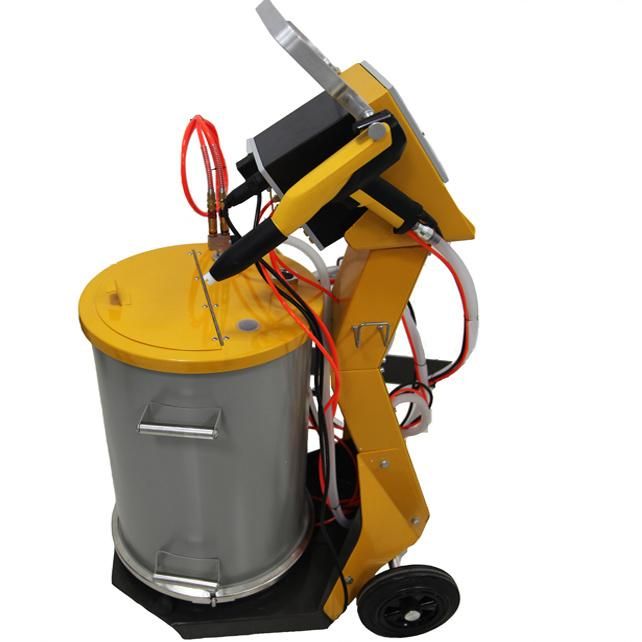

Some photos of OURS type guns:

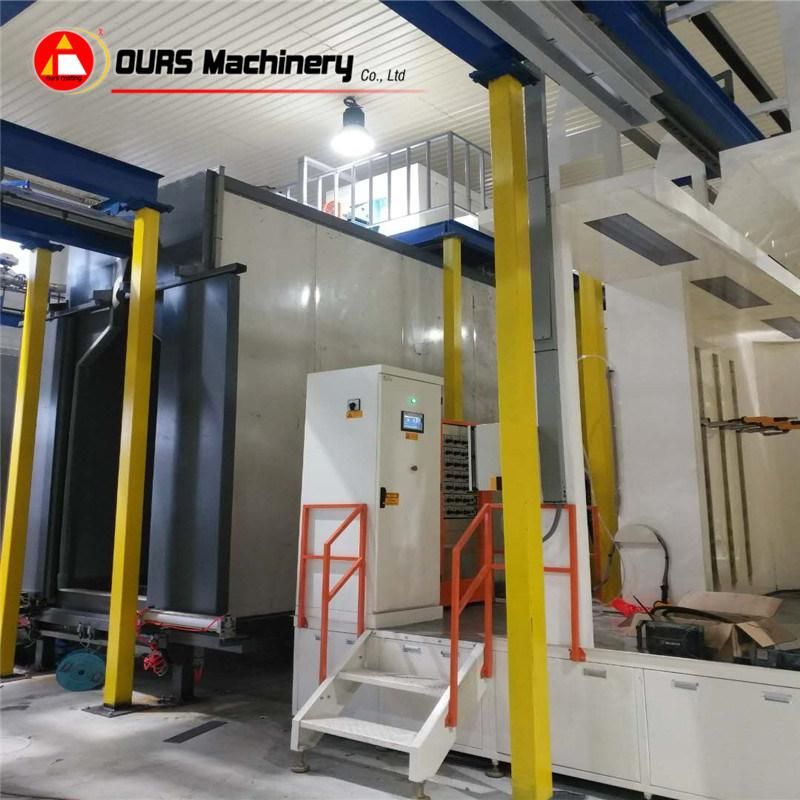

We specialize in the whole line:
1) Pre-treatment system: Automatic Spraying pre-treatment and dipping pre-treatment are available;
2) Drying oven: Drying oven which drying the water after pre-treatment is designed according to customers' actual conditions.

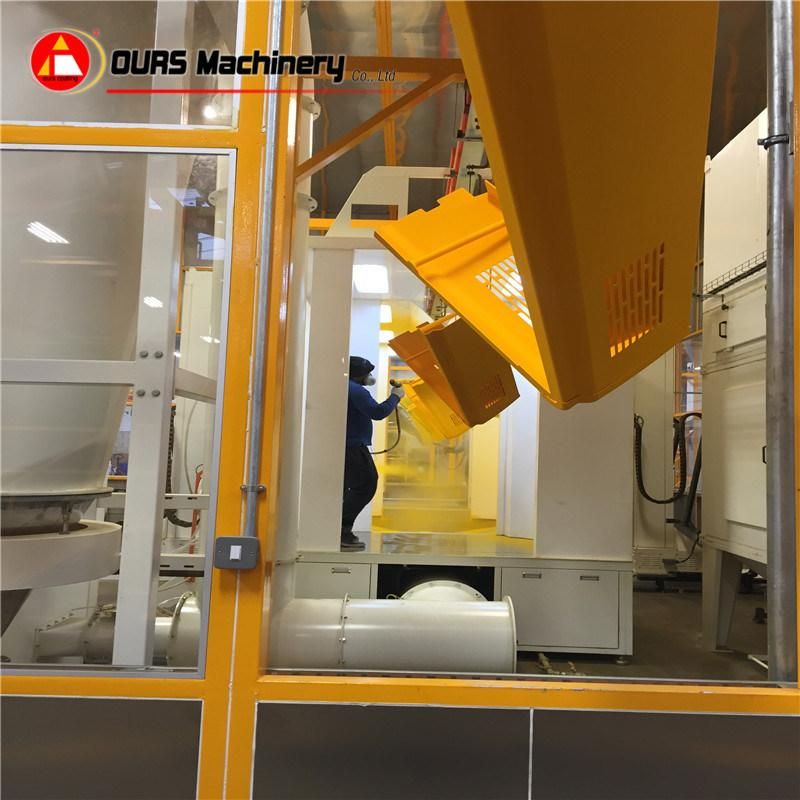

3) Powder coating spray system: Automatic spray reciprocator, manual spray equipment and Semi-auto (Auto-spraying with manual repairing spraying) are for your choice;
4) Powder recycling system: Cyclone equipment and cartridge filters is customized and introduced according to actual requirement by customer;
5) Curing oven: Tunnel curing oven, bridge type curing oven, Electric power heating curing oven, Gas-heating curing oven, Diesel heating curing oven, High temperature, lower temperature curing oven is available for fitting your sole factory.
6) Conveying system: Various design according to different requirement by customer on the basis of customers' workpiece and output information.
7) Control system: PLC control, with or without touch screen
8) Spray gun and reciprocator

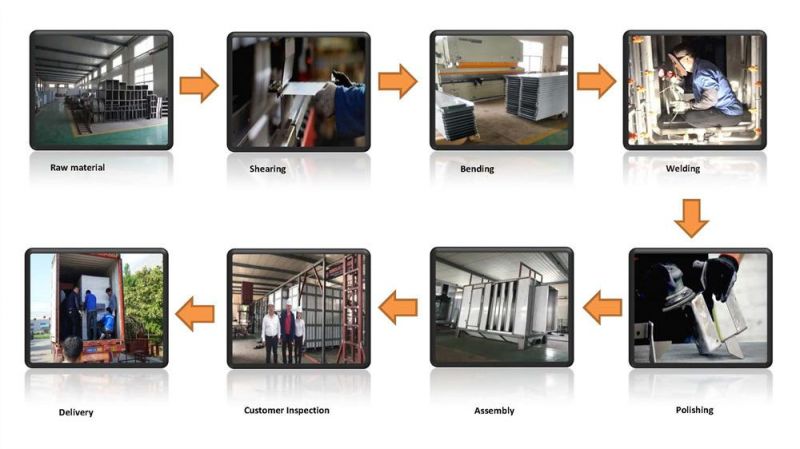

Manufacturing process:
Our service:
| 1. Purchase Service Ours Coating has a specialized and efficiency working team. If you are new on the coating, that some pictures or drawings of your products and workshop shown to us will be appreciated, we will give you specialized suggestion of whole work. |
| 2. Shipping Service Ours Coating has a specialized and independent department which just for shipping the buyer's goods. The workers know T/T, L/C Items well. All Exported documents could be made perfectly. Our company cooperates with the most famous shipping company in China also. They could provide the best and economic shipping ways to the buyer's port. |
| 3. Installation Service Installation Service is available with all our machines. Ours coating will dispatch technician to the Buyer's factory to install and trial operate the equipment. |
| 4. Clients' Training Service Ours Coating can accept the buyer send their own technician to our factory to learn how to operate machines. Also, training in the installation period is better acceptable. |
| 5. After Sales Service Ours Coating will provide one year of warranty period. Many spare parts will be prepared in the tool box together with machines. |
