• Model NO.：colo
• Condition：New
• Powder Coating Line：Semi-Automatic
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Suitable：Aluminium Profile Powder Coating Plant
• Warm-up Time：15-30 Min. (180c)
• Control Unit：PLC
• Warm Board：Thinkness:100-150mm
• Fan Motor：5.5kw
• Voltage：220V,110V,380V 3phases
• Frequency：50-60Hz
• Trolley：Matched with Different Size
• Transport Package：Negotation
• Specification：CE
• Trademark：COLO
• Origin：Hangzhou. China
• HS Code：8424899990
• Production Capacity：1 Line for One Month

Basic Info.

Model NO. colo Condition New Powder Coating Line Semi-Automatic After-Sales Service Provided Engineers Available to Service Machinery Overseas Suitable Aluminium Profile Powder Coating Plant Warm-up Time 15-30 Min. (180c) Control Unit PLC Warm Board Thinkness:100-150mm Fan Motor 5.5kw Voltage 220V/110V/380V 3phases Frequency 50-60Hz Trolley Matched with Different Size Transport Package Negotation Specification CE Trademark COLO Origin Hangzhou. China HS Code 8424899990 Production Capacity 1 Line for One Month

Product Description

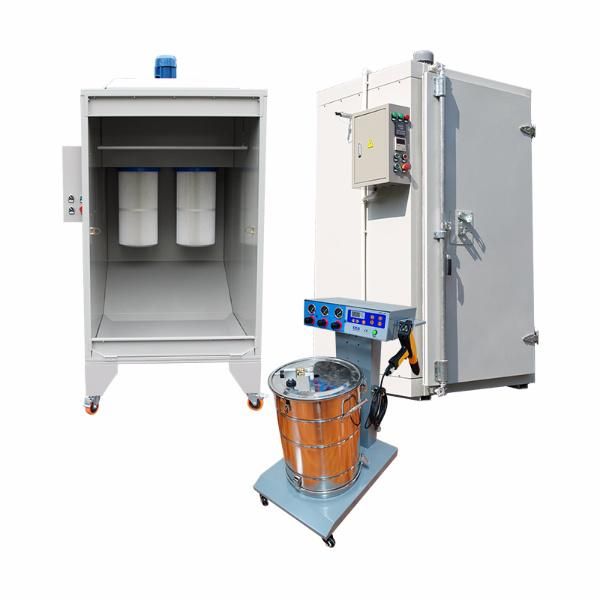

Car wheel Manual Powder Coating Line with  Curing Oven


1) powder coating line: Loading - pre-treatment------dry-off-----powder coating -curing -----loading off
2)liquid painting line: Baisc painting --Leveling--painting-leveling-curing -loading off

Techinic data

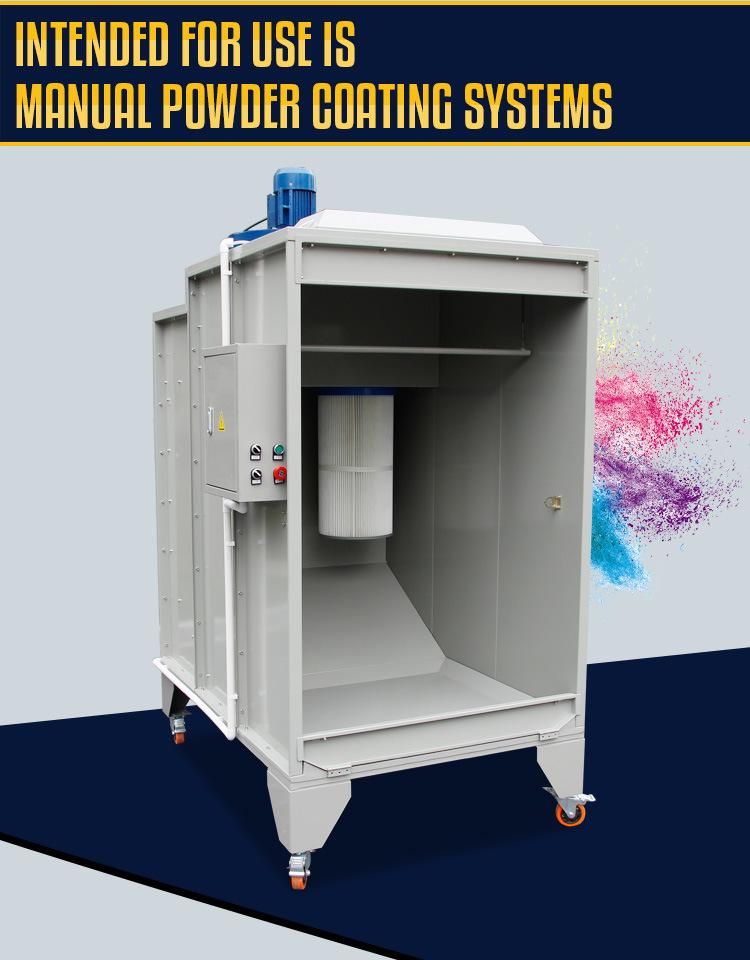

1. Design  spraybooth size: 1000*1000*1500mm
With 1pieces manual powder spray gun colo-660

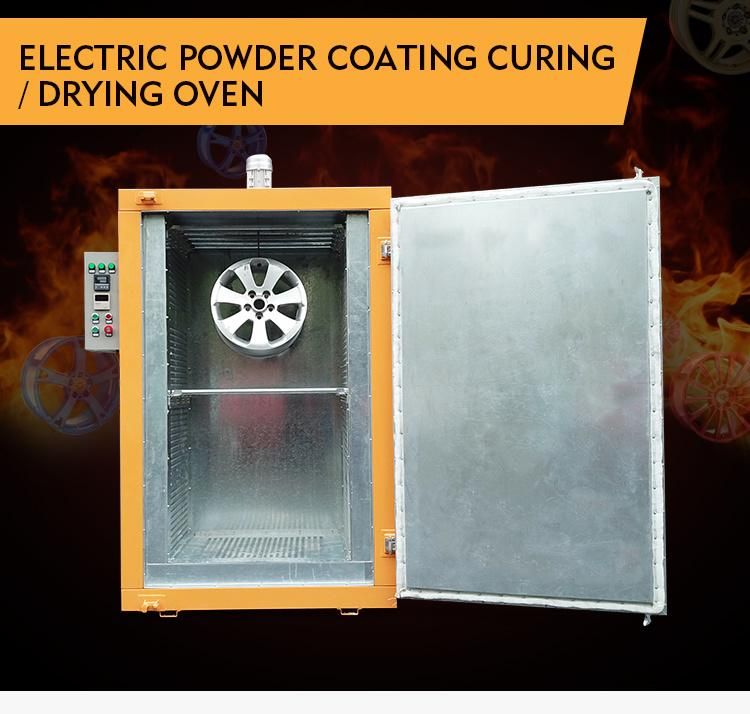

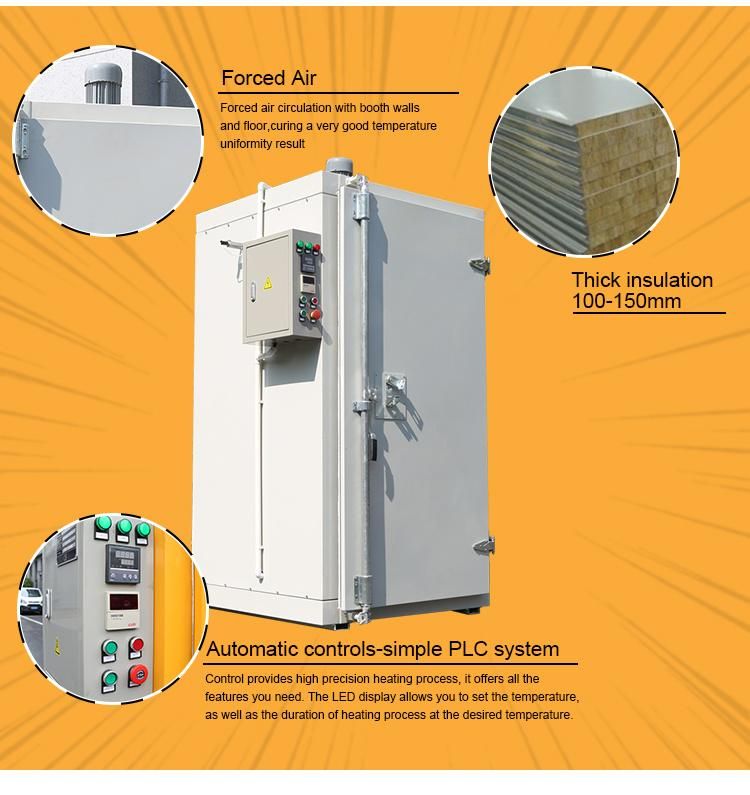

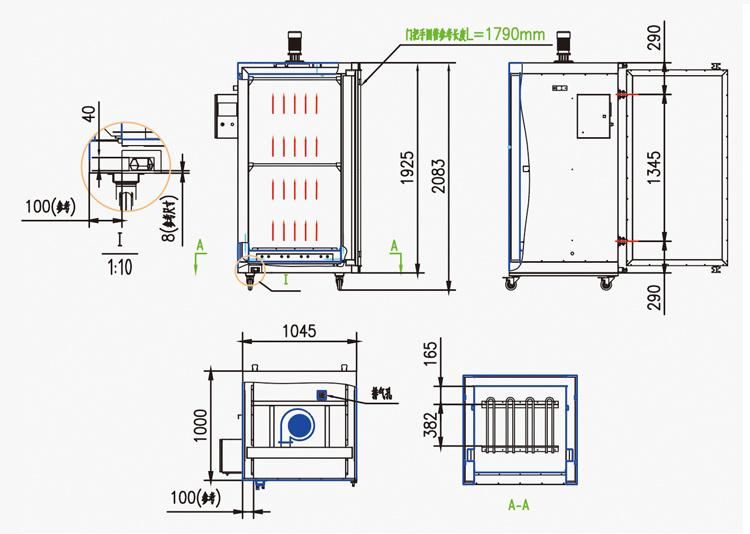

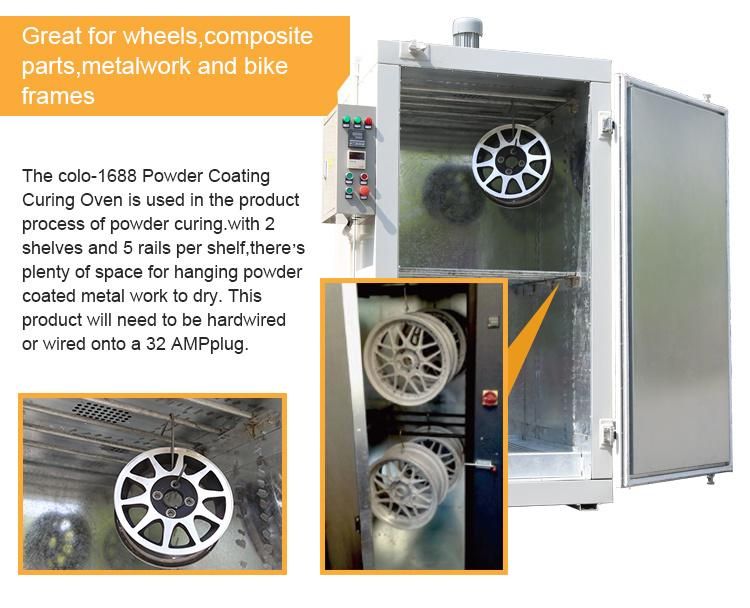

2. Curing Oven size: 1000*850*1600mm
3. Voltage: 380v, 50hz, 3 phases 5 Wires




1	Product	car rim
2	Spraying type	Powder
3	Max work piece dimension	diameter 400mm
4	Speed of technique for the production line	Powder spraying V is 2.0m/min 0.5 to 3.5m/min adjustable
5	Heating type	electric(According to the customer demand)
6	Working of production line	Powder spraying is manual Pretreatment is intermittent tank soaking.
7	Transportation type of work piece	by manual
8	Dimension of workshop	See the layout
9	Effective height of workshop	More than7m
10	Productivity	About 400  per month (8hours per day, 22days

Our company is a professional manufacturer of Aluminium Profile powder coating plant in China. We have been in this industry for more than 10 years. Our company manufactures our own electrostatic corona type powder coating gun and also the full system for aluminium profile powder coating.
Our company can offer you the complete package for aluminium profile powder coating including Pre-treatment Tank building, water dry-off oven, powder coating plant.
We have sold production line in various countries
