• Model NO.：C75
• HS Code：84552290
• Production Capacity：20sets,Month

Basic Info.

Model NO. C75 HS Code 84552290 Production Capacity 20sets/Month

Product Description

New C75 C/Z shape Purlin Roll Forming Machine:

Main Accessories:
(1) Main Purline Forming Machine;
(2) 5 Tons Hydraulic Un-coiler;
(3) Automatic Guide Device;
(4) Hydraulic Motor System ( there are total three oil cylinders, two for punching holes, one for pre-cutter)
(5) PLC Computer Controlling System with Touching Screen (Brand: Delta Made in Taiwan, or Schneider, or Siemens);
(6) Pre-punching Holes Device( the buyer decide the size of punching holes );
(7) Pre-cutting Device;
(8) Reshaping Device;
(9) PLC Automatic Controlling System For Adjusting Size From 60mm to 300mm; PLC Automatic Controlling System For interchange C to Z Purline;
(11) Run Out Table(4 PCS);
(12) Tools;
(13) Operation Manual.
Technical data:

Size	8500*1600*1550mm
Weight	7500KGS
Motor Power for auto adjustment models	0.75KW*3
Motor Power for auto guide device	0.37KW*2
Hydraulic Motor Power	18.5KW
Forming Steps	13+3steps for reshaping
Processing Speed	10-15m/min
Voltage	380V/50HZ/3PH
Lip for C purline	15-25mm
Width of Purline	80-250mm
Height of Purline	30-70mm
Forming Thickness	1.0-2.5mm
Material of principal axis	high grade 45# forged steel
Material of roller	45#steel with hard chrome plating
Material of blade	Cr12 mould steel with quenched treatment 60-62°C
Material for frame of machine	Fine welded structural steel
Sprocket wheel	45 steel high-frequencies quench
Material for producing the C Purline	normal galvanized steel

Feature:
Can automatically adjust any one model of C purlines from 80mm to 250mm within 3 minutes,  will save much room, labor, time and cost.

producing line:

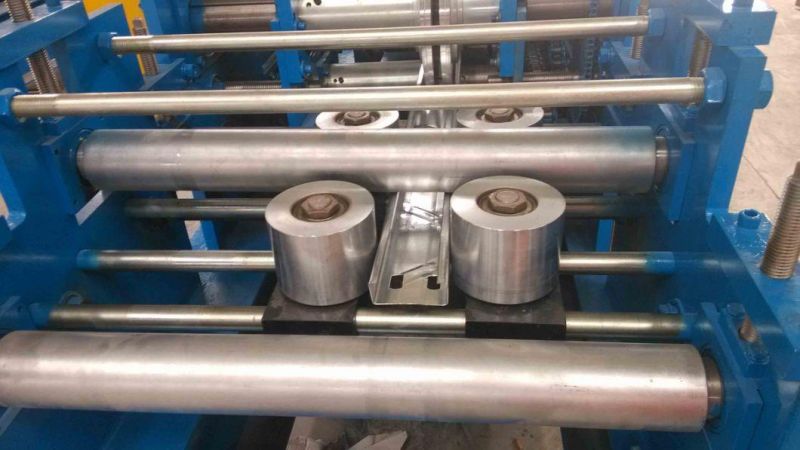

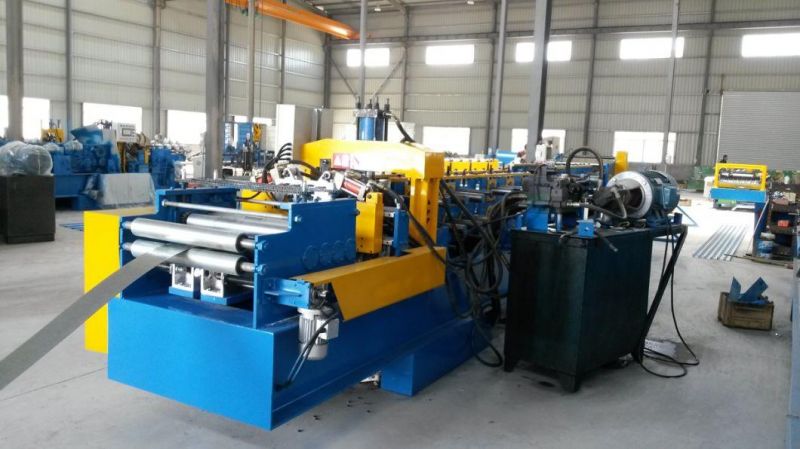

Machine detail:

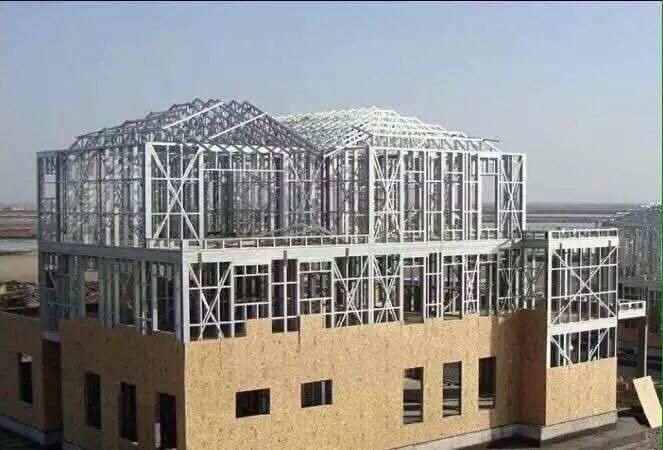

Prpjects:
