• Model NO.：JXR
• Warranty：12 Months
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Station：6
• Transport Package：in Container
• Specification：20′, 40′ container
• Trademark：Rainbow
• Origin：China
• HS Code：8462109000
• Production Capacity：200sets,Year

Basic Info.

Model NO. JXR Warranty 12 Months Customized Customized Advantage Easy to Maintenance Condition New Station 6 Transport Package in Container Specification 20′, 40′ container Trademark Rainbow Origin China HS Code 8462109000 Production Capacity 200sets/Year

Product Description

Product Description

This kind for cold forming machine can used to produce extra thick nut, flanged nut, motorcycle link pin, oil Plug screw, hex socket lockup nut, Squire nut, Weld nut, Cap nut, Blind Nut, Chain roller, Expansion anchor, Bicycle and Motorcycle shaped Spare Parts, etc.

Salient Features

1. Connection between the crankshaft and bed as well as the rod all adopts the world-class SKF bearing for assortment, which is of small friction, quick and flexible operation and saving power.

2. Being cast by adding the nodular cast iron with alloy contained in the bed, therefore it possesses high tensile strength and favorable wear-resistance.

3. The main slide of five-station desk uses the trapezoidal design, which is limited by the fixed and adjustable plates on both sides and simply and closely structured, by assorting with the materials of highly wear-resistant alloy steel, first-class heat treatment and the overall lubricant road, so as to maximize the high-speed operation of bearing, and it is suitable for processing ordinary nut and roller products, bringing magnificent returns for the clients.

4. Cropping system uses the guide board to drive the cutting holder, and the guide board reciprocates and the cut off force transmits directly, which is kind of high-powered, stable and good dynamic balance.

5. Equipped with the pneumatic braking, it is flexible to control and convenient to debug.

6. Configured by the fault detection device and safety protection device, if the equipment is out of order, it will be shutdown automatically, providing a maximum protection to the equipment and tools mode.

7. Installed with the backstop equipment in the feeding box, improving the feeding accuracy.

This Series Nut Former are used to produce DIN 934, 985, 1587 and so on.

Specification


MODEL	FORGING STATION	MAX. FORGING DIA.(mm)	CUT-OFF DIA. (mm)	PRODUCT SIZE	FORGING LENGTH (mm)	DIE PITCH (mm)	SLIDER STROKE (mm)	OUTPUT (per.min.)	MAIN MOTOR (HP)	WEIGHT (T)	DIMENSION (cm)
JXR08B-6S-12	6	8	8	M4-M5	12	38	40	175/350	10	3.5	195×135×130
JXR11B-6S-14	6	11	10	M5-M6	14	50	60	120/240	15	4.3	230×155×135
JXR11B-6SL-20	6	11	10	M5-M6	20	50	65	110/200	20	4.5	230×155×135
JXR11B-6SL-35	6	11	10	M5-M6	35	50	125	110	20	4.5	230×155×135
JXR14B-6S-18	6	15	14	M6-M8	18	60	70	75/160	20	8	300×195×175
JXR14B-6SL-30	6	15	14	M6-M8	30	60	100	85/160	30	8	300×198×175
JXR14B-6SL-50	6	15	14	M6-M8	50	60	160	85	30	8.5	300×198×175
JXR17B-6S-20	6	17	17	M8-M10	20	70	80	65/130	20	10	350×220×185
JXR17B-6SL-50	6	17	17	M8-M10	50	70	160	80	40	10.5	360×220×185
JXR17B-6SL-70	6	17	17	M8-M10	70	70	220	80	50	10.5	360×220×185
JXR19B-6S-25	6	20	19	M10-M12	25	80	95	95	40	10.5	360×220×185
JXR19B-6SL-50	6	20	19	M10-M12	50	80	160	75	50	16	380×245×196
JXR19B-6SL-70	6	20	19	M10-M12	70	80	220	65	60	16	380×235×196
JXR22B-6S-30	6	22	22	M12-M14	30	80	160	80	60	18	380×235×196
JXR22B-6SL-60	6	22	22	M12-M14	60	80	220	75	60	18	380×235×196
JXR24B-6S-35	6	24	24	M14-M16	35	100	160	75	75	27.5	550×248×270
JXR24B-6SL-70	6	24	24	M14-M16	70	100	210	65	75	27.5	550×248×270
JXR27B-6S-40	6	27	29	M16-M18	35	100	160	75	100	30	550×248×270
JXR27B-6S-70	6	27	29	M16-M18	70	100	210	65	150	30	550×248×270
JXR33B-6SL-40	6	33	30	M18-M20	35	140	160	70	150	45	650×300×280
JXR33B-6SL-80	6	33	30	M18-M20	80	140	280	60	200	50	650×300×280

Final products



Company profile

  Our company comes from China National Machinery Import and Export Corp. Harbin branch. By many years market development and experience accumulation,now we have became the biggest Chinese fastener equipment dealer and turnkey consultants of fasteners manufacturing project for abroad customers.

  We are supplying high quality and reliable machines for the entire fastener industry with our professional and timely after sale service,our main products include wire drawing machine,Bolt Maker, Nut Maker, Part Former, Heading Machine, Thread Rolling Machine and Mesh Belt Furnace.

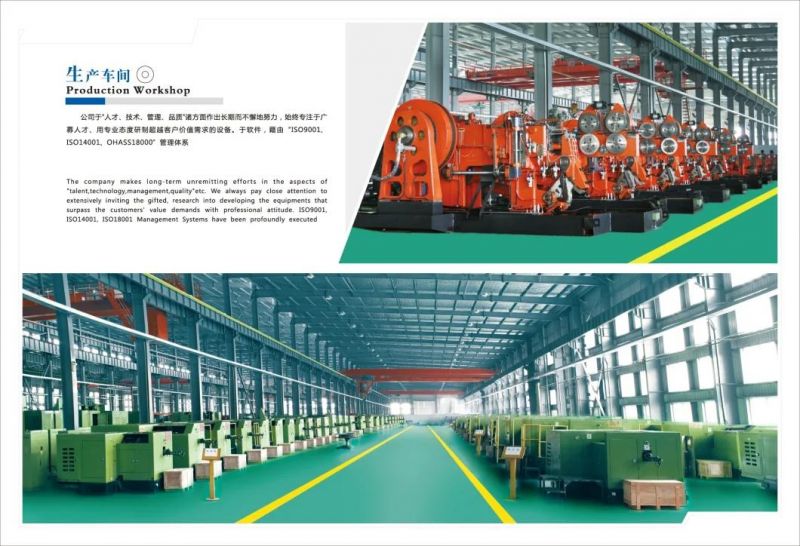

  With our business reputation and professionalism, our company has experienced a significant growth in business during the recent years and we invested in some fastener equipment manufacturers and built our own bolt maker,mesh belt furnace and zinc plating line factories.We do these factories' foreign market developing and have received highly praises from a lot of customers.

  We have established reputation in countries such as India, US, Europe and Southeast Asia where we have core customer bases. Meanwhile, we are well respected by the domestic factories and the customers in the mechanical and electrical business.
