• Model NO.：LT-3600
• Warranty：24 Months
• Customized：Non-Customized
• Condition：New
• Transport Package：Exporting Packing
• Specification：5600mm*2200mm*340-650mm
• Trademark：Baohua
• Origin：China
• Production Capacity：1000 Set,Sets Per Month

Basic Info.

Model NO. LT-3600 Warranty 24 Months Customized Non-Customized Condition New Transport Package Exporting Packing Specification 5600mm*2200mm*340-650mm Trademark Baohua Origin China Production Capacity 1000 Set/Sets Per Month

Product Description

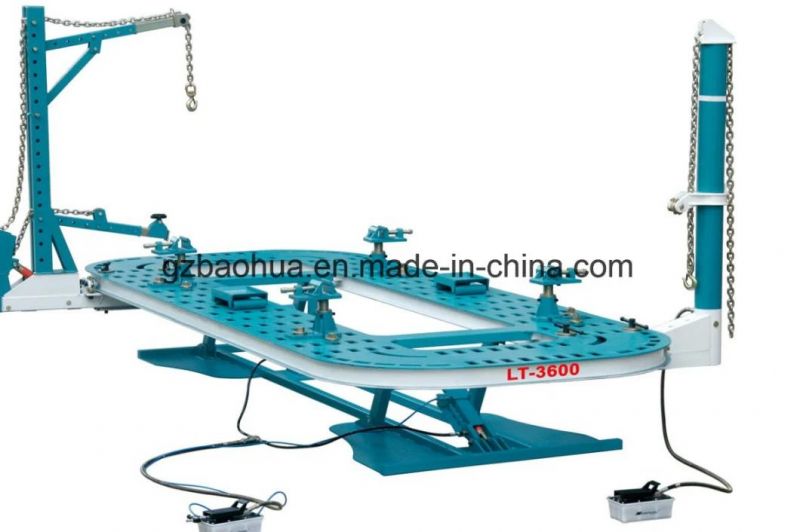

Pneumatic car body repair bench(whole platform can rise and down)

Model:LX-3600

Function
1.By using whole steel plate, working table is more flat,the precision is more higher,and measurement data is guaranteed.

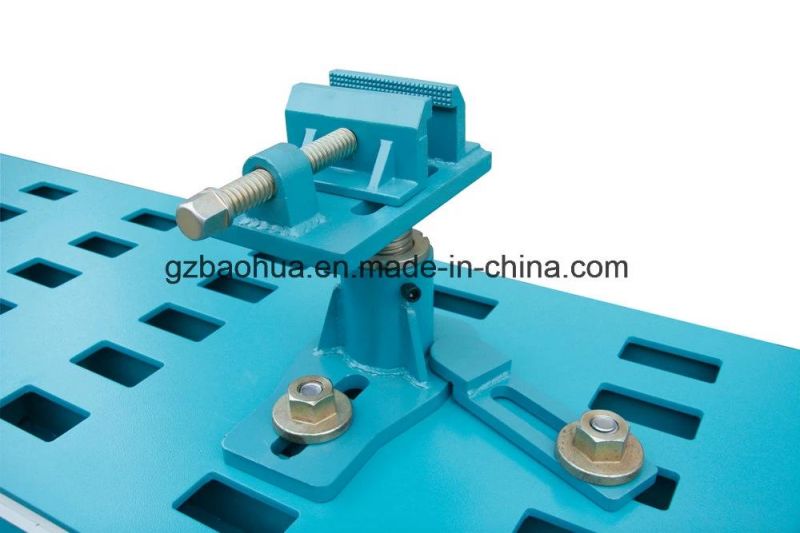

2.Needle type multi-dental vise jaw can fix car body more firmly.
3.Whole platform can rise and down,according to the requirements of the repair to adjust the height of the platform,so that any accident car can be platform more conveniently.
4.The sliding groove is easy and convenient for clamp to move.You needn't move clamp away from the platform.

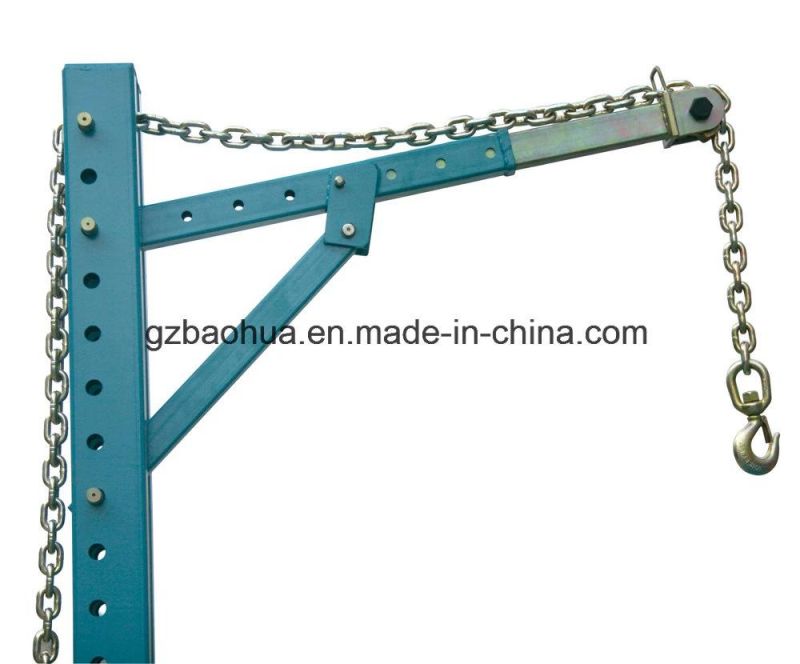

5.Guide ring can move up and down on tower ,and let chain to be on straight line .Guide ring and chain is more closely,more reasonable,higher safety, and more reliability.
6.Mobile hydraulic tower realize stretching from different points.Stretching distance is 650mm,which is much bigger than 250mm old stretching distance.The work efficiency and the quality of the repair achieve one time stretch in place ,and realize the rise and fall of the secondary lifting by pull rod.
7.No matter from seal or from stability,Hydraulic system is far better than similar products.You needn't worry about it in future.
8.The sheet metal tools are made of 35 chromium molybdenum alloy steel and treated by heat treatment .These tools can pull any shape deformation into original place ,more convenient,more quickly.

Parameter

Length	5600mm
Width	2200mm
Height	340-650mm
The max lifting weight	3500kg
Pulling max pulling force	95KN
Pulling working range	360degree
Secondary lifting weight	2000kg
The maximum weight lifting arm	2000kg
Dynamic air supply pressure	0.8MPa(8bar)
Electric pump power	0.8kw

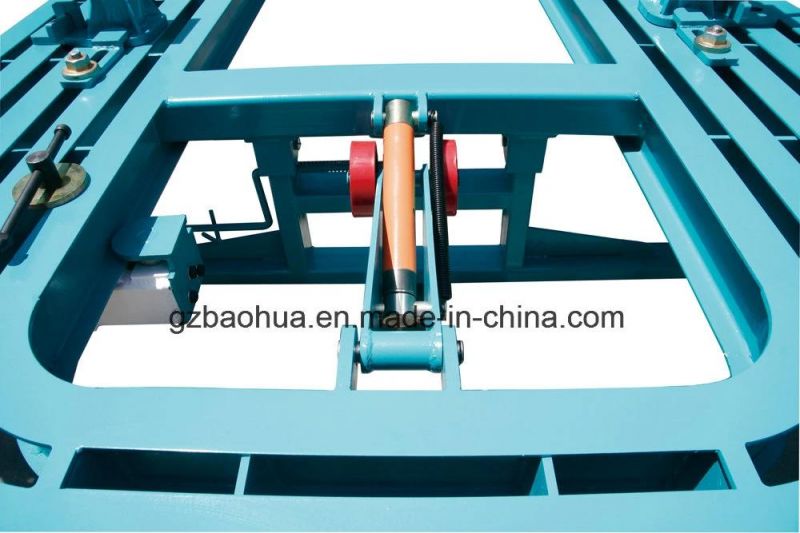

photo details
