• Material：Tungsten Carbide
• Coating：Coating
• Tooth Form：Spiral Tooth
• Tooth Space：Extra Dense Tooth
• Structure：Indexable Type
• Materials：Tungsten Carbide,Cemented Carbide
• Co：10%
• Wc：90%
• Grain Size：0.8
• Density：14.4
• Hardness：91.8
• T.R.S：3800
• Applicaiton：Cutting and Milling
• Type of Application：Side Milling and Face Milling
• Materials to Be Milling：Aluminum , Copper,Alloy
• Transport Package：Plastic Box Per Single Piece
• Specification：from diameter 0.3 to 20mm
• Origin：China
• HS Code：8207709000
• Production Capacity：30000PCS,Piece

Basic Info.

Material Tungsten Carbide Coating Coating Tooth Form Spiral Tooth Tooth Space Extra Dense Tooth Structure Indexable Type Materials Tungsten Carbide/Cemented Carbide Co 10% Wc 90% Grain Size 0.8 Density 14.4 Hardness 91.8 T.R.S 3800 Applicaiton Cutting and Milling Type of Application Side Milling and Face Milling Materials to Be Milling Aluminum / Copper/Alloy Transport Package Plastic Box Per Single Piece Specification from diameter 0.3 to 20mm Origin China HS Code 8207709000 Production Capacity 30000PCS/Piece

Product Description

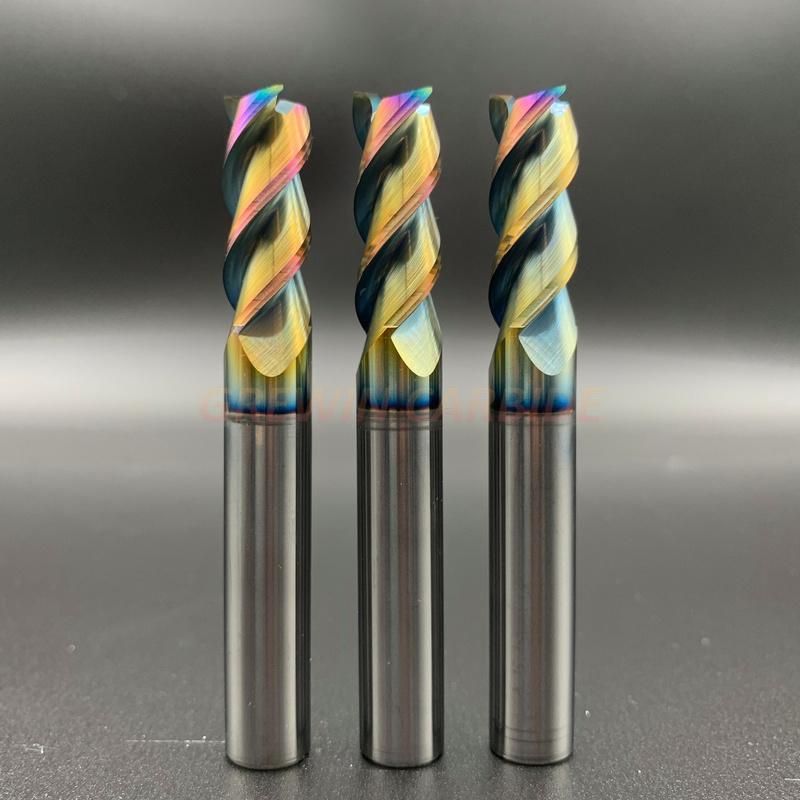

Tungsten Carbide End Mills in Sub-Micron Grain Size  with 3 Flutes for Cutting Aluminum Workpiece



materials:

GW10    WC: 90%, CO:10%, Grain size: 0.8, Density: 14.4, Hardness: 91.8HRA, T.R.S: 3800

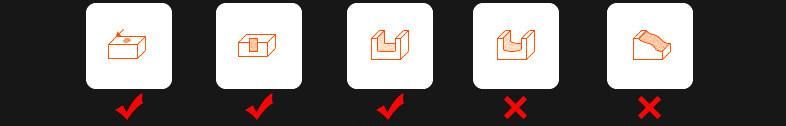

Machining types can used to:

coating:  Rainbow coating in DLC types

Helix: 35 degree

HRC:65

workpiece to be cut:  Aliminum, copper, alloy

Adwantages: Acurate and positive rake angles are sharpened and sharpened. The 3-blade geometry cutting design has a large capacity for chip removal, making cutting smoother, non-sticky, achieving high-efficiency machining, high workpiece accuracy, and good gloss.

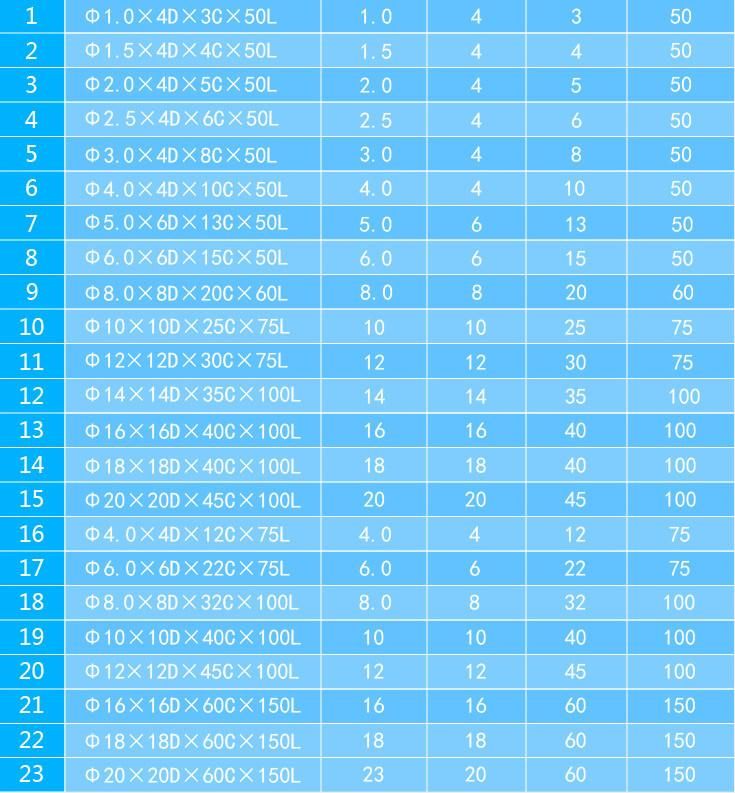

Size List:

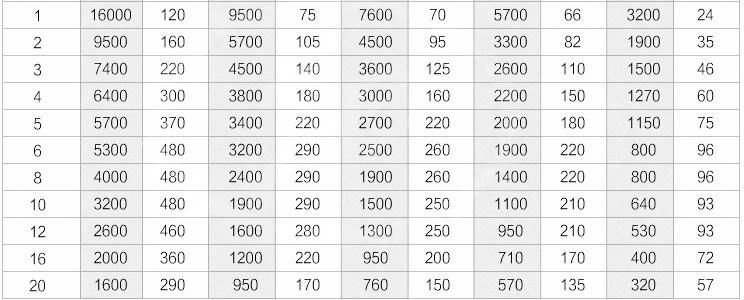

Cutting data:

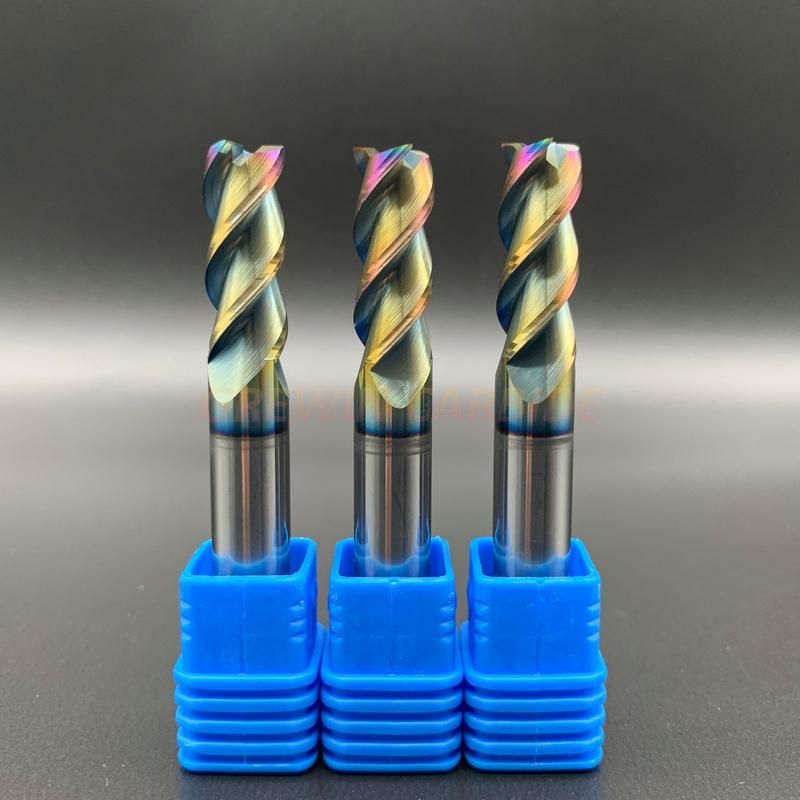

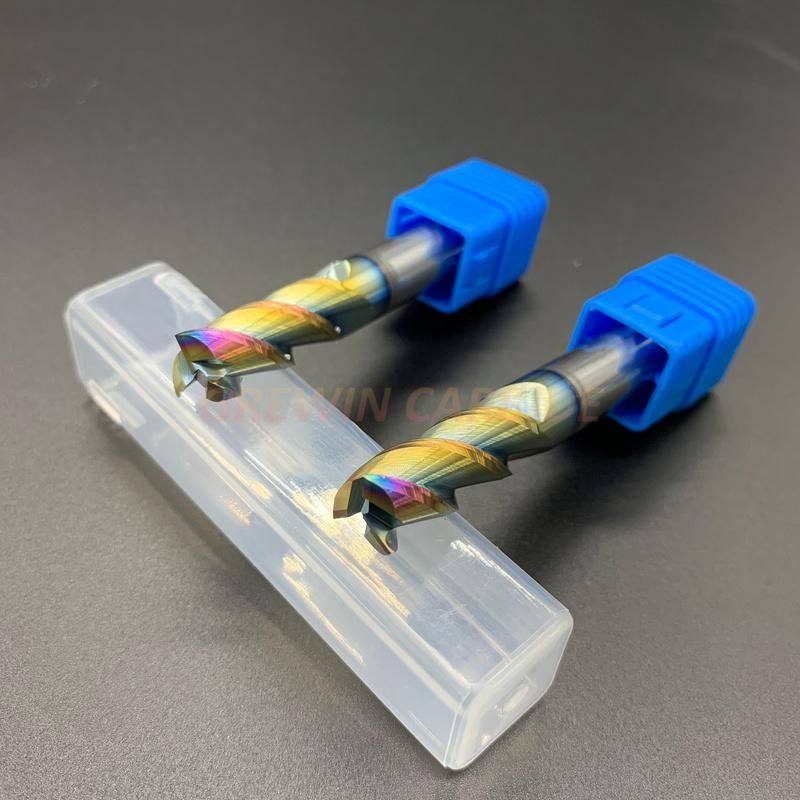

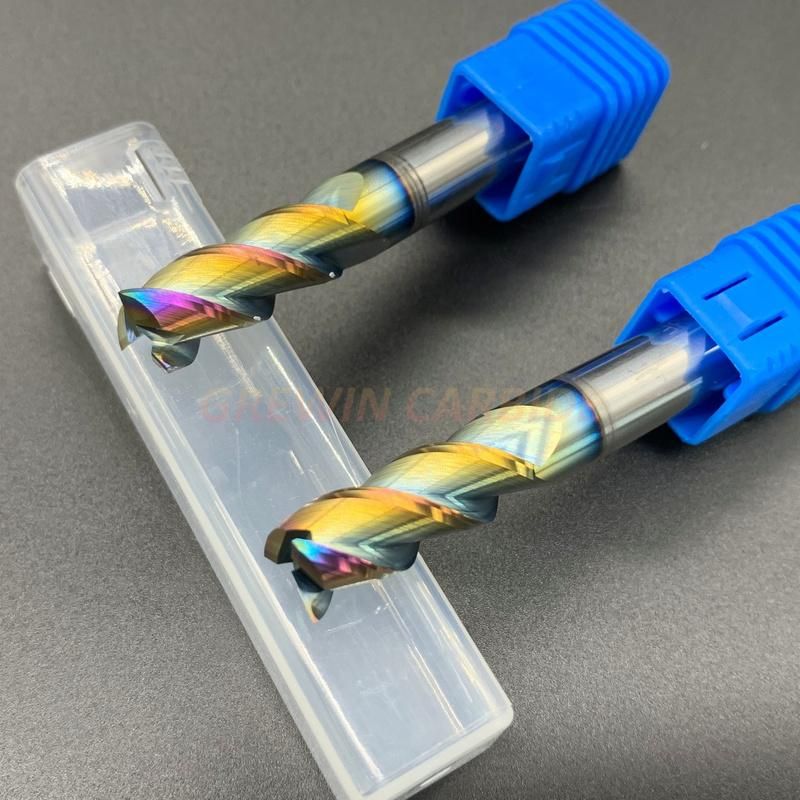

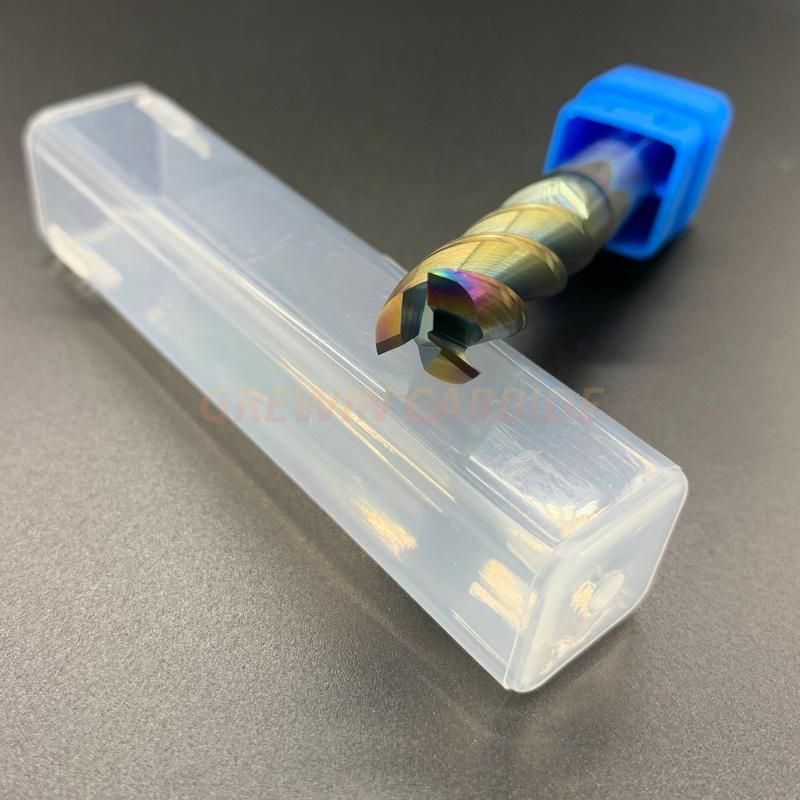

finished carbide end mills in Sub-Micron Grain Size  with 3 Flutes for Cutting Aluminum Workpiece show:








Anyquantity is always welcomed, please write us or call us freely!
