• Model NO.：standard or non
• Material：Tungsten Carbide
• Type：Cutting Tool
• Control Method：Semi-Closed Loop Control
• Performance Classification：High-End CNC Machine Tools
• Length：Taper-Length
• Content：Wc + Co
• Work Piece：HRC 45, 50, 60, 65
• Usages：Mining, Drilling, Rock
• Coating Type：Tisin, Tialn, Altin, Ticn, Blue Nano
• Cutting Form：Flat, Ball Nose, Corner Radius, Roughing
• Process：Hot Insert or Cold Pressing Bit Inserting Process
• Logo Printing：Without Logo Printing
• Lengths：50mm-150mm, Customized
• End Mill Flute Diameter：D0.5-D30mm, Customized
• Raw Material：Hard Metal
• Hole：with or Without
• Transport Package：Standard Box
• Specification：all sizes
• Trademark：GW
• Origin：Zhuzhou, China
• HS Code：8207009000
• Production Capacity：500000 PCS,Month

Basic Info.

Model NO. standard or non Material Tungsten Carbide Type Cutting Tool Control Method Semi-Closed Loop Control Performance Classification High-End CNC Machine Tools Length Taper-Length Content Wc + Co Work Piece HRC 45, 50, 60, 65 Usages Mining, Drilling, Rock Coating Type Tisin, Tialn, Altin, Ticn, Blue Nano Cutting Form Flat, Ball Nose, Corner Radius, Roughing Process Hot Insert or Cold Pressing Bit Inserting Process Logo Printing Without Logo Printing Lengths 50mm-150mm, Customized End Mill Flute Diameter D0.5-D30mm, Customized Raw Material Hard Metal Hole with or Without Transport Package Standard Box Specification all sizes Trademark GW Origin Zhuzhou, China HS Code 8207009000 Production Capacity 500000 PCS/Month

Product Description

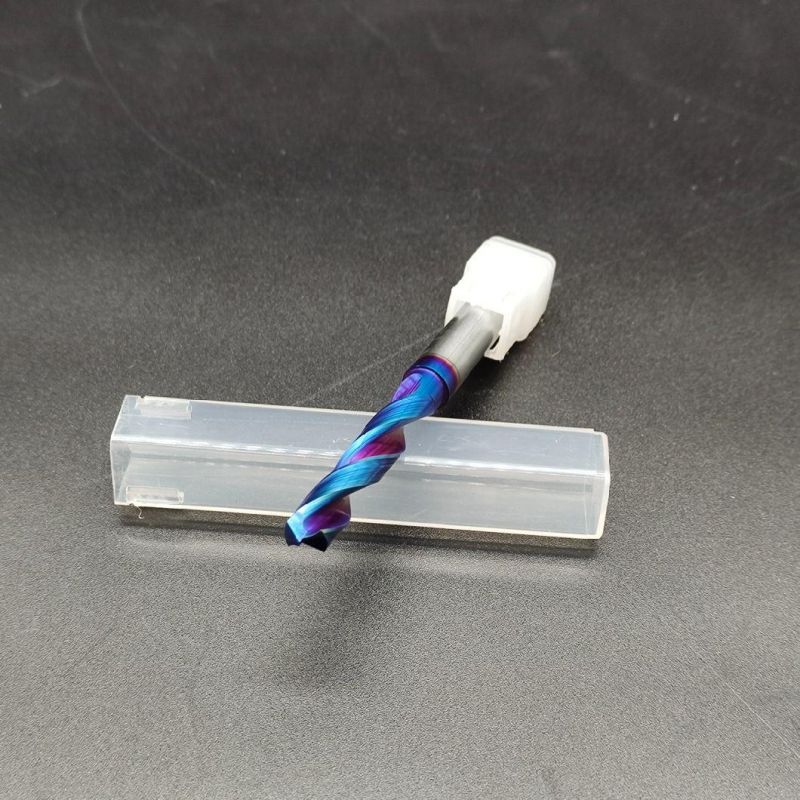

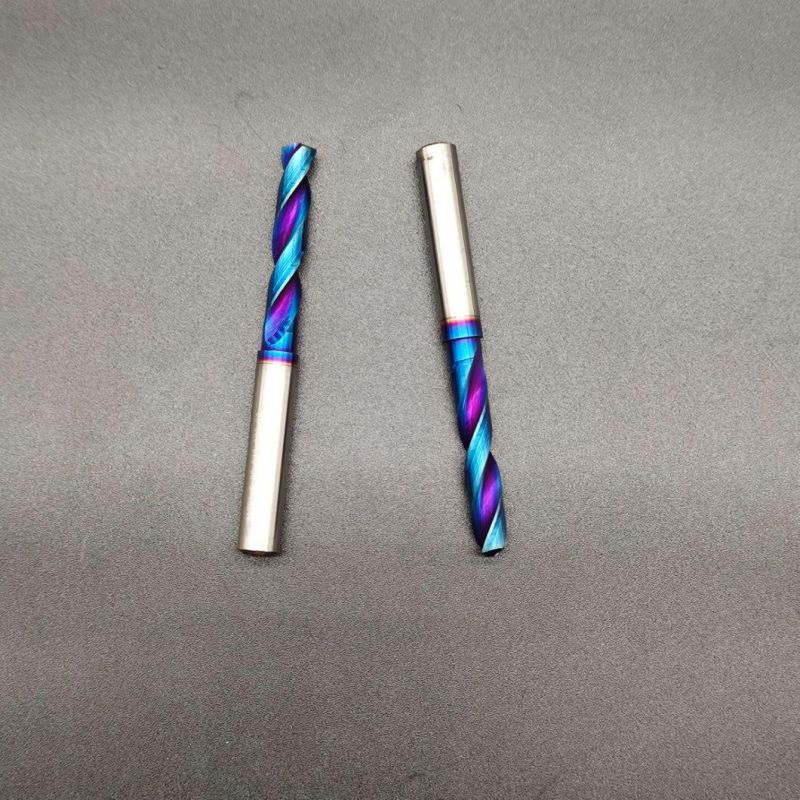

We 'd like to introduce our Solid Carbide Drills to you:

Types available are:
Solid Carbide Mirco Twist Drill Bits
Solid Carbide Three Edge Drill
Coolant-fed Solid Carbide Drill 3XD, 5XD, 8XD
Solid Carbide Twist Drill 5XD
Solid Carbide 90deg, 120deg Point Drill
Solid Carbide Drill Bit For Aluminum
Solid Carbide Straight Flutes Drill Bits
Solid Carbide A Type Center Drill 60deg, 90deg

Instruction for use:
Use for the process of structual steel, Alloy steel, Staineless steel and other common materials;
Precise centering ability which enable to gain stable dimensional accurancy and fine surface quality;
Suitable for process system with excellent rigidity.

Description:
Chip Evacuation Groove special designed, easy evacuation.
Measurements manufactured according to standard DIN6537
Chisel edge grinding IRK standard
Shank according to DIN6535HA h6
Tolerance of cutting edge diameter m7

Coating

Coatings	Hardness HV	Thickness um	Friction Coefficient	Oxidation Temp	Color
AlTiN	3500	2.5-3	0.3	900	Black
TiAlN	2800	2.5-3	0.3	900	Violet
TiSiN	3600	3	0.45	1000	Copper
AlTiSiN	400	3	0.4	1200	Blue
TiN	2500	2-3	0.5	600	Gold

We are waiting for your inquiry!
