H-Beam Hydraulic Straightening Machine for Flange Thickness 60mm
Wuxi Lemar Machinery Equipments Co., Ltd.- After-sales Service：Online Video Instruction
- Type：H Beam Flange Straightening Machine
- Usage：H Beam Flange
- Voltage：380V-440V
- Automatic Grade：Automatic
- Principle：Deformation After H Beam Welding
Base Info
- Model NO.：JZJ-60
- Certification：CCC, ISO9001, CE
- Warranty：12 Months
- Customized：Customized
- Condition：New
- Function：Straightening for H Beam Flange Plate
- Straightening Mode：Hydraulic
- Max Flange Thickness：60mm
- H Beam Material：Q345,Q235
- Power：Customized
- Suitable for H Beam Length：12m
- Flange Width：200-1500mm
- Input Roller Length：9m
- Output Roller Length：9m
- Colour：Customized
- Roller Material：35CrMo
- Hydraulic Station：1 Set
- Roller Hardness：HRC50-55
- Straightening Wheel Speed：≥8.9m,Min
- Delivery：45 Days
- Transport Package：Nude
- Trademark：Lemar
- Origin：Wuxi, China
- HS Code：8462291000
Description

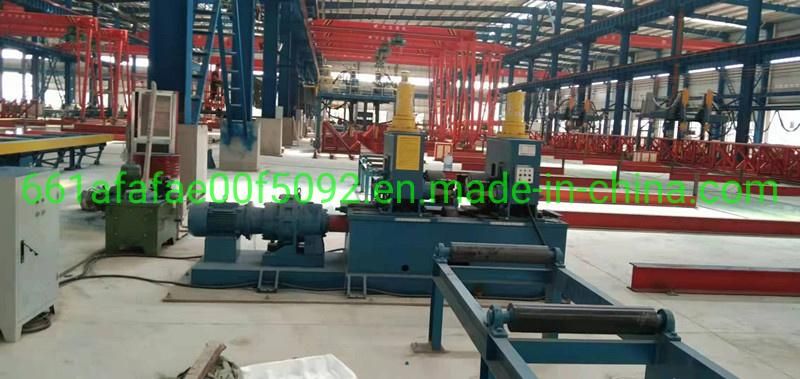

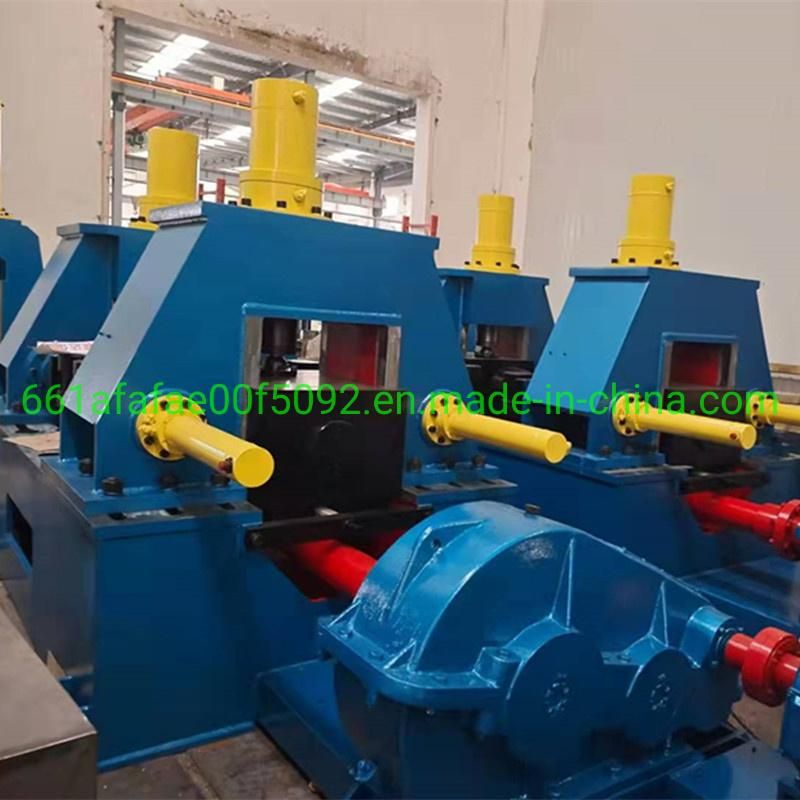

H-beam hydraulic straightening machine is our company's best-selling H-beam straightening machine. Widely used in Car body, H beam, T beam, steel structure.
Complete H beam production line automatic welding together with CNC Plasma cutting machine,Automatic H beam assembly machine,Submerged arc welding machine.
The main drive system adopts high-power motor, and all straightening rollers are made of high-quality steel and undergo advanced heat treatment to ensure long-term stability.

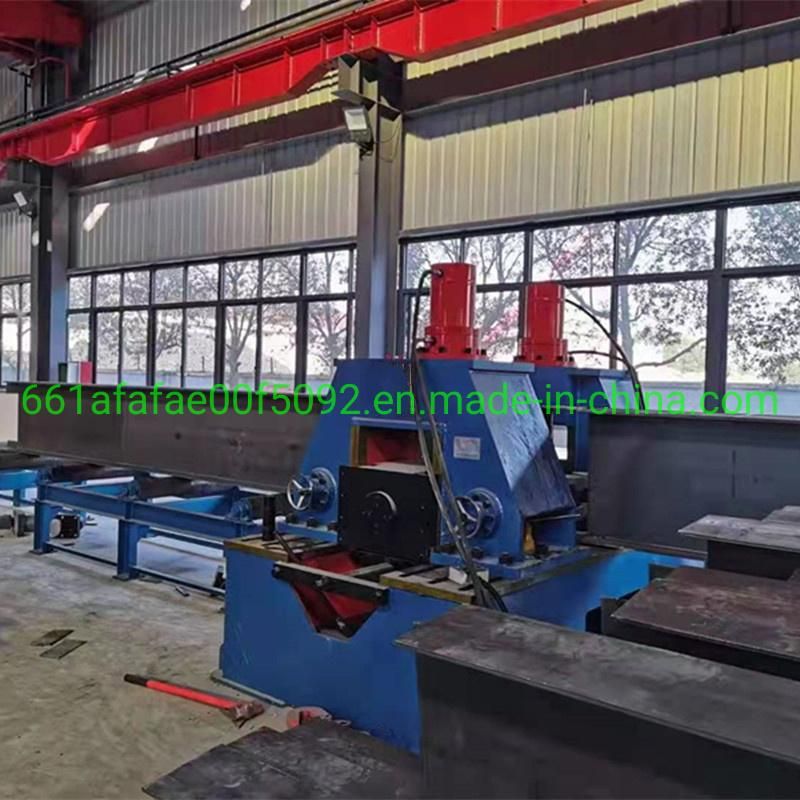

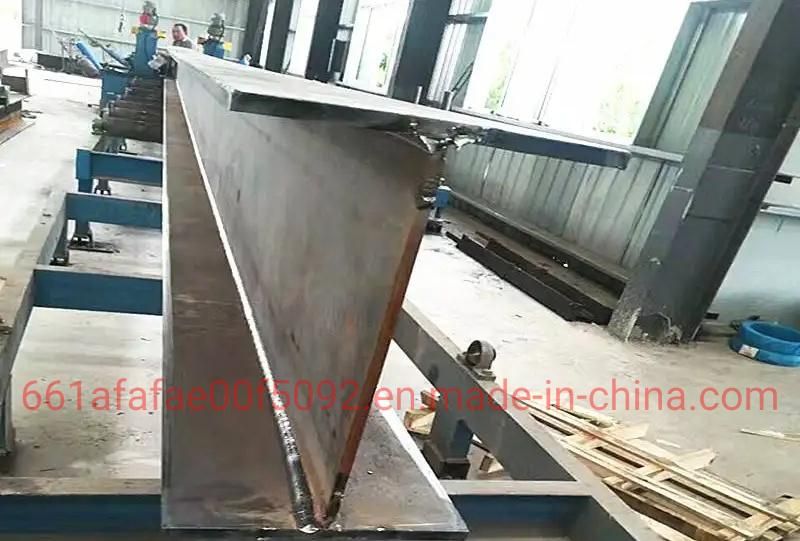

After the T-beam or H-beam is welded, it enters the H beam flange straightening machine, and uses the working principle of the hydraulic cylinder to complete the flange straightening of the steel structure.
The machine has two optional structures, mechanical and hydraulic, and is equipped with different machines according to customer requirements.
Specification:
Supply scope of H beam hydraulic straightening machine:
FAQ:
Q1. How to choose H-beam flange plate hydraulic straightening machine and H-beam flange plate mechanical straightening machine?
H-beam flange plate mechanical straightening machine is more used for light steel structure, the thickness of flange plate is less than or equal to 40mm.
Hydraulic straightening machine is more used for heavy steel structure. When the flange plate of H-beam is ≥40mm, it is recommended to choose a hydraulic flange plate straightening machine, which can obtain higher work efficiency
Q2. What is the structure of the flange plate straightening machine?

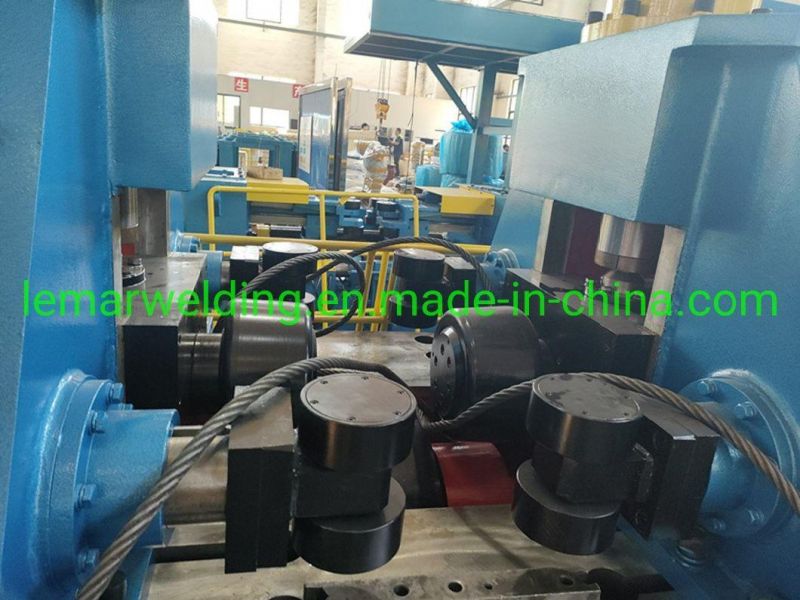

Steel structure flange straightener is mainly composed of base, upper frame, upper correcting wheel mechanism, web guide mechanism, upper frame moving device, main drive, conveying roller table, and electric control system.
It has the advantages of compact structure, convenient operation and easy maintenance.
Q3. How long is the warranty period of the machine? After the warranty period, how can the product be repaired?
Our machines are very strong and many customers have used them for more than 10 years.
The warranty period of the H-beam flange plate straightening machine is one year.
We permanently provide free technical support, after the warranty period, customers only need to pay the cost of the parts that need to be replaced.
Q4: What are the random documents shipped?
Including packing list, commercial invoice, bill of lading and other proofs required by customers.
