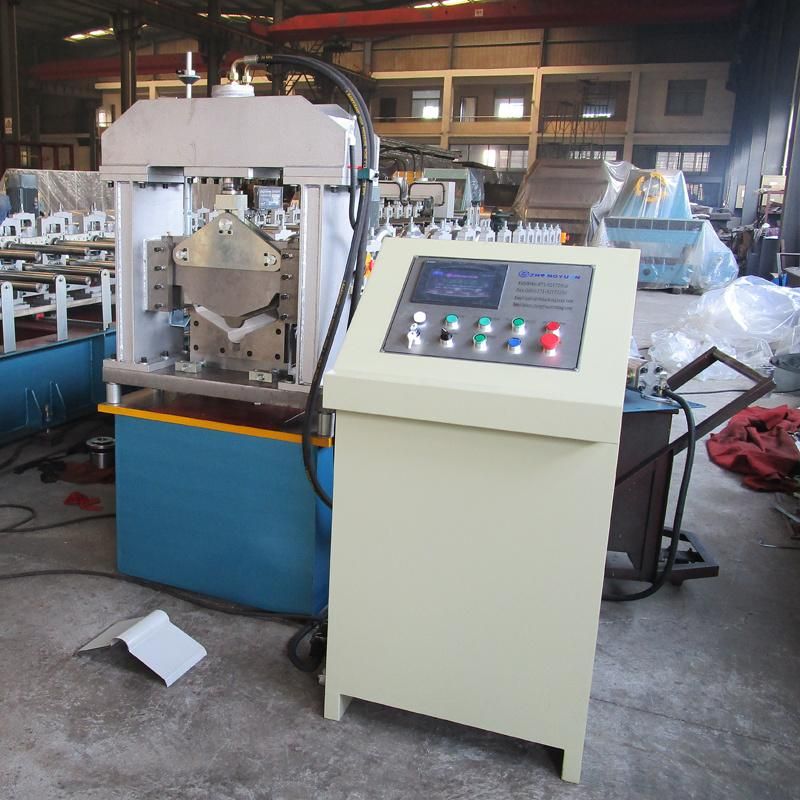

• Model NO.：ridge cap panel roll forming machine
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Main Power：5.5kw
• Shanfts：55 mm Solid Steel
• Hydraulic Power：4kw
• Forming Speed：15-20m,Min
• Machines Weight：7100kgs
• Voltage：440V,60Hz,3phase
• Roller：CNC Process
• Control System：Mitsubishi PLC
• Transport Package：40gp Container for One Machine
• Specification：CE SGS BV
• Trademark：Zhongyuan
• Origin：Hangzhou City, Zhejiang Province
• HS Code：8455221000
• Production Capacity：10sets,Month

ItemSpecificationMaterialTypepre-painted galvanized steel sheet Thickness(mm)0. 2-0.5Yield strength(mpa)235 -345Roller material45#Chrome steelShaft diameter (mm)about 55mmWorking speed(m/min)About 1500-2000mm/minStep distanceAdjustable according to requirement Speed adjusting modeAC FrequencyRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mold steel Length measurement EncoderControl mode Mitsubishi  PLCOperating modeButton +  Mitsubishi  Touch screenMain motor power(kw)5.5KW    (Depend on final design)Hydraulic station power 4K W   (Depend on final design)Uncoiler's loading capacityMax. Capacity: 3000kgsWhole line sizeAbout 5.8*1.15*1.75  (Depend on final design)Machine weightAbout 7000kgs

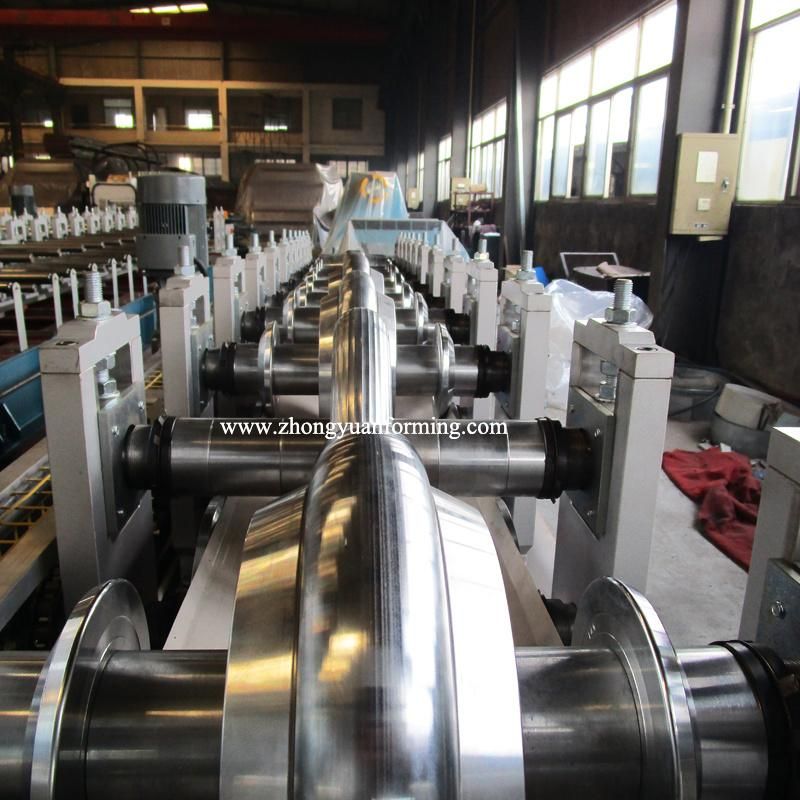

Components of machine:Decoiler1set   Feeding & guiding device1setMain roll forming machine1setPressing device1setHydraulic cutting system1setControlling system1setRun out table 1set
Process flow:
Decoiler -- Feeding & Guiding -- Roll Forming-- Pressing--Hydraulic Cutting - Product to Run Out Table






About us
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.
1.  Capacity: 12-15 sets/month
2.  Delivery: in only 5-8 weeks for urgent order
3.  Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
     --from raw material to the final high-precision forming machine. We have our precise tooling center.
5.  You can rely on our team!
      We have engineers with experience more than 15 years in metal forming industry.





Get Free:
"Send" below get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
