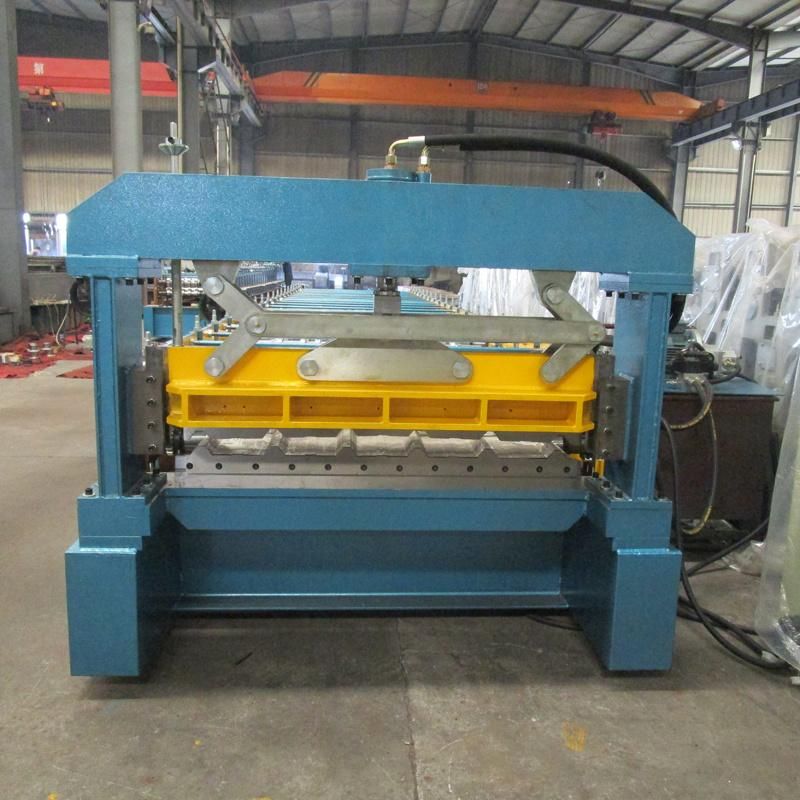

• Model NO.：Metal Roofing Roll Forming Machine
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Machine Size：9.0*1.65*1.5m
• Machines Weight：About 10t

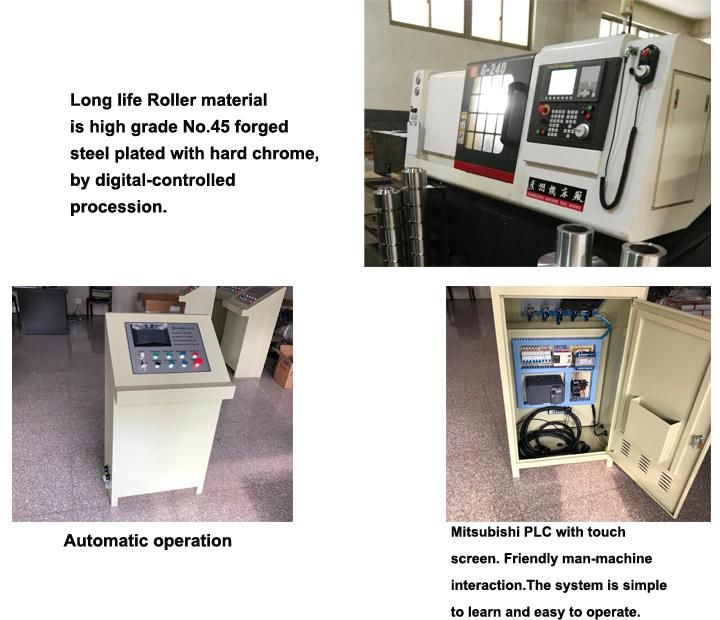

• Rollers Material：No.45 Forged Steel with Hard Chrome
• Cutter Material：Cr12 Mould Steel with Quench Treatment

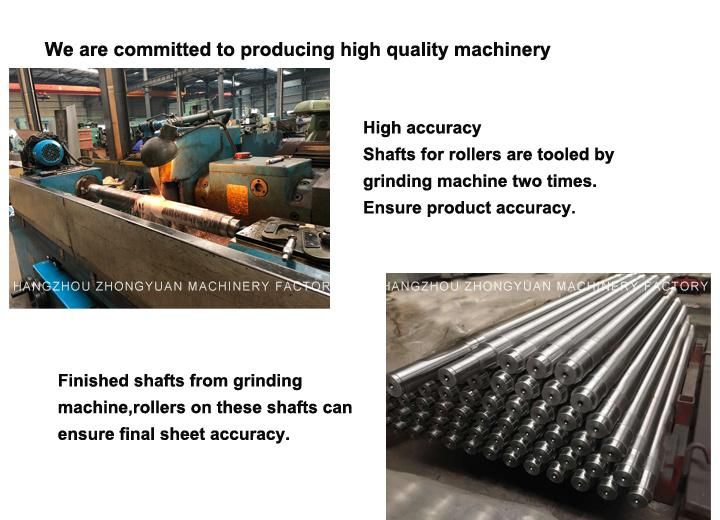

• Shafts for Rollers：Grand Twice, 72mm Diameter Solid Steel
• Quality System：ISO9001
• Guarantee：First Year Free, Lifetime Services
• Cotrol System：Mitsubishi PLC & Converter
• Transport Package：40gp Container for One Machine
• Specification：CE SGS BV ISO
• Trademark：zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：20sets,Month

                              Supply China Corrugated Roll Forming MachineItemSpecificationMaterialTypePre-painted steel coil Thickness (mm)0.4-0.7Yield strength (mpa)235-345Roller material45#Chrome steelForming speed(m/min)About 25Speed adjusting modeAC FrequencyRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mold steel Length measurementEncoderControl modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power (kw)7.5 kw (Depend on final design)Hydraulic station power 2.2 kw (Depend on final design)Total power (kw)9.7 kwUncoiler's loading capacityMax. Capacity: 5000kgs
(can be increased to be 10T)Machine`s sizeAbout 9*1.65*1.5m
(Depend on final design)

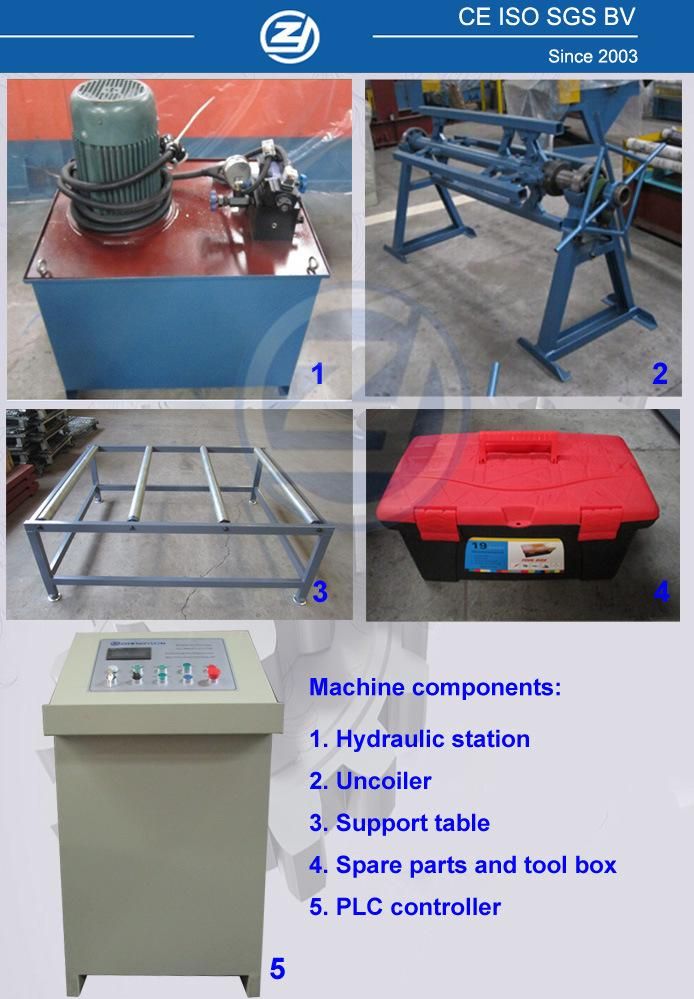

Components of machineDecoiler
(manual/ hydraulic decoiler for option)1set  Feeding & guiding device1setMain roll forming machine1setHydraulic cutting system1setControlling system1setRun out table (auto. Stacker for option)1.5m/ pc, 2 pcs
Process flow:
Decoiler -- Feeding & Guiding -- Roll Forming-- Hydraulic Cutting - Product to Run Out Table










We customize your machines!
To customize machine, we would love to know:
   1. Profile drawing
   2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
   3. Voltage: designed per your requirement
   4. Configuration requirement: Hydraulic or manual decoiler/ stacker

Have no idea about them?
We will be glad to recommend the lacol popular profile for you----Just let us know your country!





Why us?
1.  Manufacturing roll forming machine since 2003
2.  With ISO,SGS,BV and CE certificate
3.  2 year quality warranty
4.  Introduced Mitsubishi PLC with touch screen. Friendly man-machine interaction.
5.  Design by 15 years experienceD R&D members.
6.  Technician can be sent to your factory to install the machine and train your workers
7.  Export to more than 20 countries.

Get Free:
"Send" below get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
