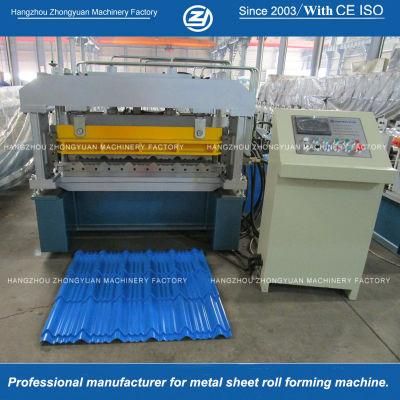

CE Metal Roll Forming Machine

Hangzhou Zhongyuan Machinery Factory
  • Type：Mechanical Press
  • Forging Forming Method：Roll Forming Machine
  • Power Source：Electric
  • Feature：Automation
  • Certification：ISO9001, CE, CE, ISO
  • Warranty：12 Months

Base Info

  • Model NO.：ZYYX35-171.5-686
  • Customized：Customized
  • Advantage：Easy to Maintenance
  • Condition：New
  • Operation Language：English or as Per Client`S Required
  • Rollers Material：No.45 Forged Steel, Plated with Hard Chrom
  • Shaft Diameter：72mm Solid Steel
  • Cutter Material：Cr12 Mould Steel Being Quenched Treatment
  • Quality System：ISO
  • Guarantee Time：First Year Free, Lifetime Services
  • Controlling System：Mitsubishi PLC & Converter
  • Main Motor：7.5kw
  • Main Power：380V, 3pH, 50Hz
  • Name：CE Metal Roll Forming Machine
  • Transport Package：1*40gp
  • Specification：CE SGS BV
  • Trademark：zhongyuan
  • Origin：China
  • HS Code：84552210

Description

ItemSpecificationMaterialTypePre-painted steel coil & galvanized coilsThickness (mm)0.4-0.7Yield strength (mpa)235-345Roller material45#Chrome steelForming speed(m/min)About15-20Speed adjusting modeAC FrequencyRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mold steel Length measurementEncoderControl modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power (kw)7.5 kw (Depend on final design)Hydraulic station power 2.2 kw (Depend on final design)Total power (kw)9.7 kwUncoiler's loading capacityMax. Capacity: 5000kgs (can be increased to be 10T)Machine`s sizeAbout 11.5*1.65*1.5m (Depend on final design)

Controller:
We choose Mitsubishi PLC from Japan.
The PLC controller is the "CPU" of forming machine. Machine excellence performance need the supports of excellence PLC.
With touch screen mode, let your workers enjoy the easy operation; with auto working mode, let your workers free their hands!


About us
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.

1.  Capacity: 12-15 sets/month
2.  Delivery: in only 5-8 weeks for urgent order
3.  Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
     --from raw material to the final high-precision forming machine. We have our precise tooling center.
5.  You can rely on our team!
      We have engineers with experience more than 15 years in metal forming industry.


Please feel free to contact us for more information!
