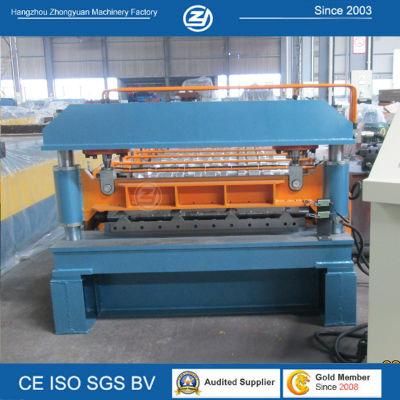

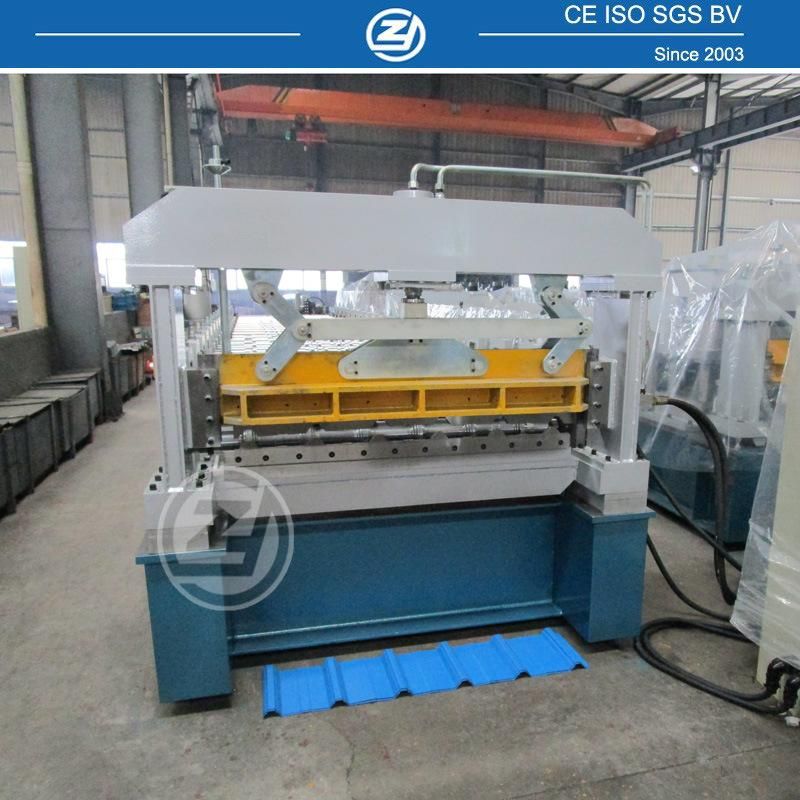

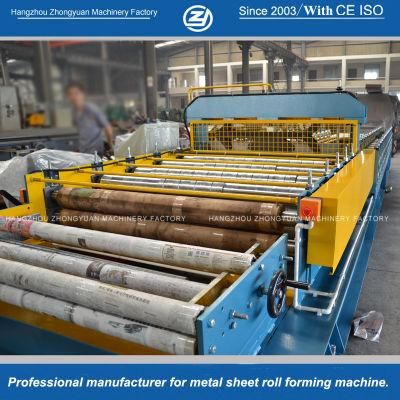

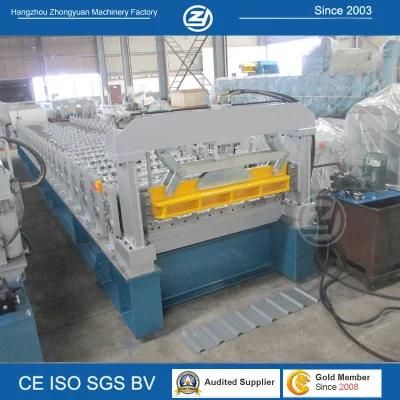

• Model NO.：roof panel forming machine
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Coil Width：1200mm
• Main Motor：7.5kw
• Forming Speed：About 20m,Min
• Rollers Material：No.45 Forged Steel, Plated with Hard Chrom
• Shafts for Rollers：Grand Twice, 72mm Diameter Solid Steel
• Machine Weight：About 9.5t
• Controlling System：Mitsubishi PLC & Converter
• Guarantee Time：First Year Free, Lifetime Services
• Certificate：Ce,SGS, BV , ISO
• Operation Language：English or as Per Client`S Required
• Specification：CE SGS BV ISO
• Trademark：Zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：10sets,Month


Technical parameterItemSpecification
Raw MaterialTypePre-painted steel coil & galvanized coilsThickness(mm)0.3-0.7Yield strength(mpa)235Roller material45# steel , coated with ChromeShaft for rollers Solid shaft with 72mm,processed with cylindrical grinderForming speed(m/min)About 20-25Speed adjusting modeMitsubishi frequency transformerRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mould steelLength measurementNemicon EncoderControl modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power(kw)7.5KWTotal power(kw)9.7 KWProcess flowDecoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting - product to run out table
Components of machineDecoiler (manual decoiler and hydraulic decoiler for option)1set  Feeding & guiding device1setMain roll forming machine1setHydraulic cutting system1setControlling system1setRun out table (auto. Stacker for option)1set






Packing:
1. One 40feet container for loading one set machine with decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.

Delivery : about 60 days


About us
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.

1.  Capacity: 12-15 sets/month
2.  Delivery: in only 5-8 weeks for urgent order
3.  Have our own tool center. 12 sets CNC machines.
4. Over the past 10 years, our R&D members dedicated in make better machines.

We garantee:
Machine lifetime service
Technician overseas services.








 FAQ:

1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A:  1) We record the testing video for your reference. Or,
    2) We welcome your visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).

Get Free:
Provide profile drawing & design technical support FOR FREE!
