• Model NO.：ZYYX27-190-950
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Brand Name：Zhongyuan
• Model Number：Zyyx27-190-950
• Power：5.5kw
• Tile Thickness：0.5-0.6mm
• Working Speed：About 6m,Min. for Option
• Controlling System：Mitsubishi PLC & Converter
• Machines Weight：About 9500kgs
• Machines Size：About 9.5m*1.65m*1.5m (Depend on Final Design)
• Forming Type：Cold Roll Forming

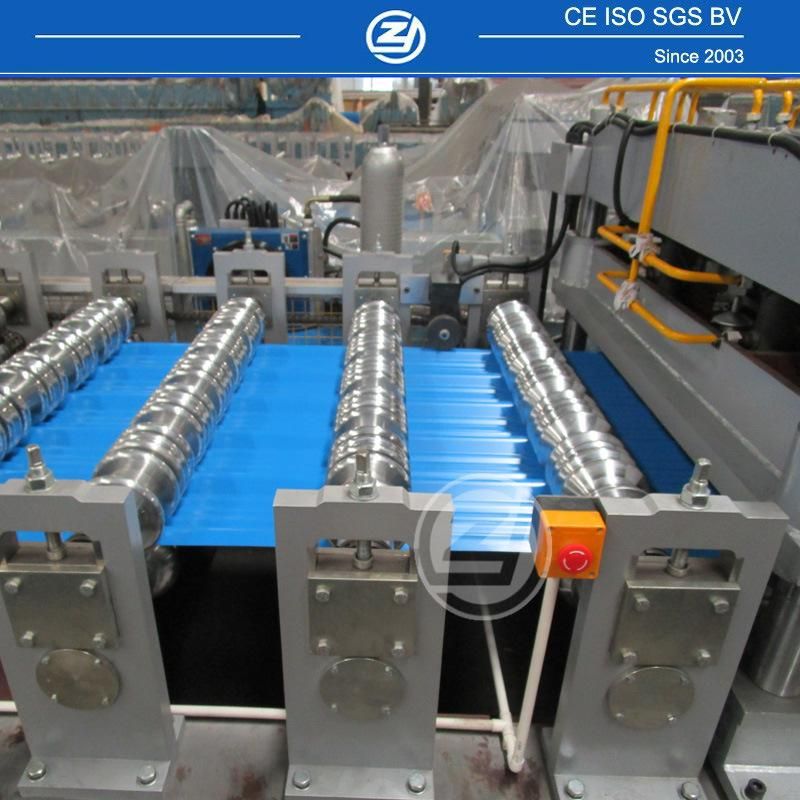

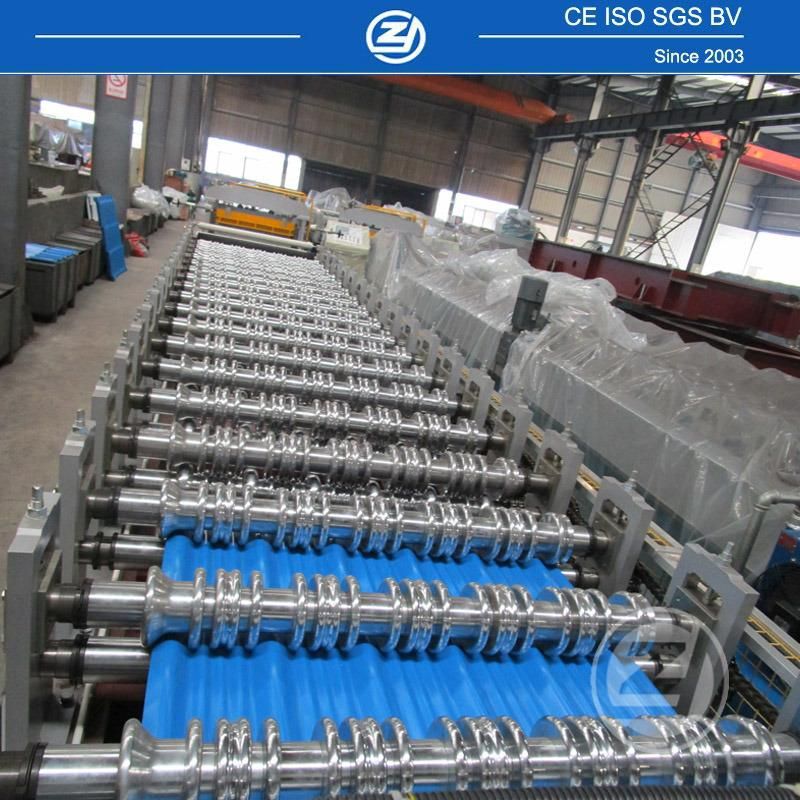

• Name：Step Tile Metal Roll Forming Machine
• Transport Package：Suitable for Sea Transport
• Specification：CE SGS BV
• Trademark：Zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：15 Sets,Month

ItemSpecification
MaterialTypePre-painted steel coil & galvanized coilsThickness(mm)0.5-0.6Yield strength(mpa)235Roller material45#Chrome steelForming speed(m/min)About 15-20Output speed(m/min)6Speed adjusting modeAC FrequencyRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mould steel Length measurement EncoderControl mode Mitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power(kw)5.5KWTotal power(kw)11KW
Components of machineDecoiler1set  Feeding & guiding device1setMain roll forming machine1setHydraulic pressing system1setHydraulic cutting system1setControlling system1setRun out table 1set
Process flowDecoiler -- Feeding & Guiding -- Roll forming---Hydraulic pressing ---Hydraulic Cutting - product to run out table


machine's overview:



1. Manufacturing roll forming machine since 2003

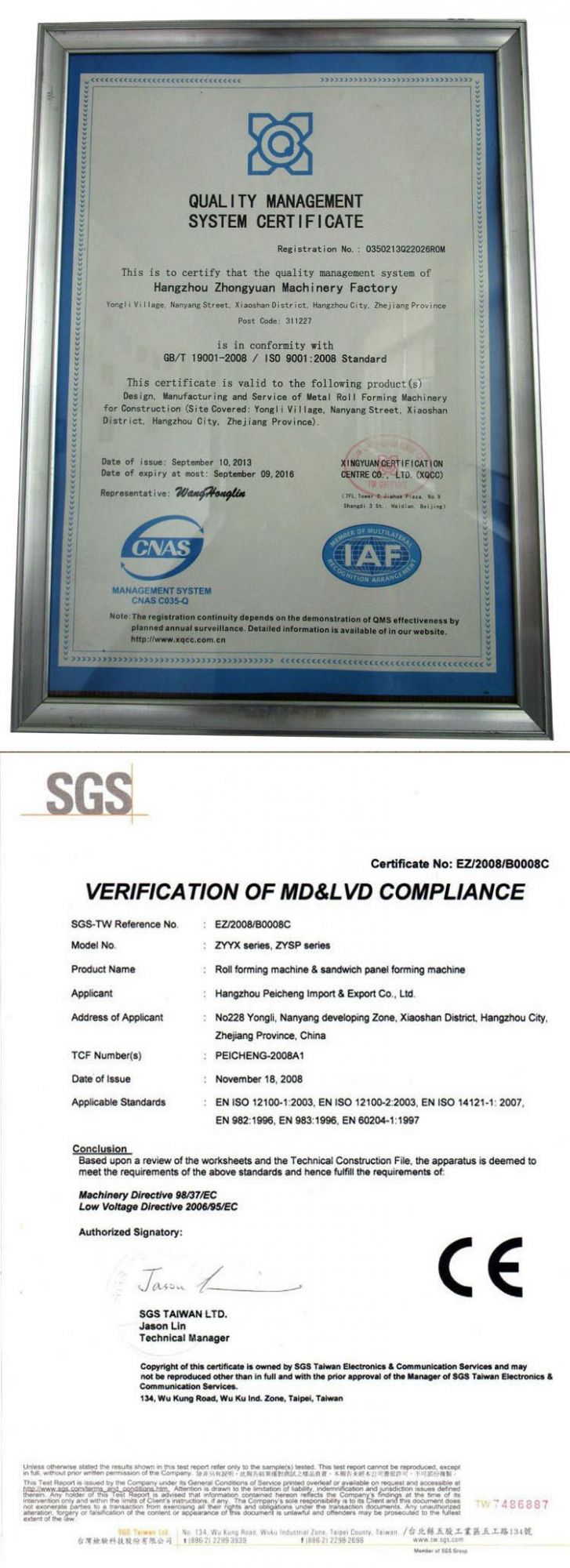

2. With ISO, SGS, BV and CE certificate
3. 1 year quality warranty
4. Export to more than 20 countries.
5. Technician can be sent to your factory to install the machine and train your workers



Controller
We choose Mitsubishi PLC from Japan.

The PLC controller is the "CPU" of forming machine. Machine excellence performance need the supports of excellence PLC.
With touch screen mode, let your workers enjoy the easy operation; with auto working mode, let your workers free their hands!


Why choose this machine?
1. Lifetime seivices
2. Introduced Mitsubishi PLC with touch screen to machine controll system.
3. One worker operation (minimum)

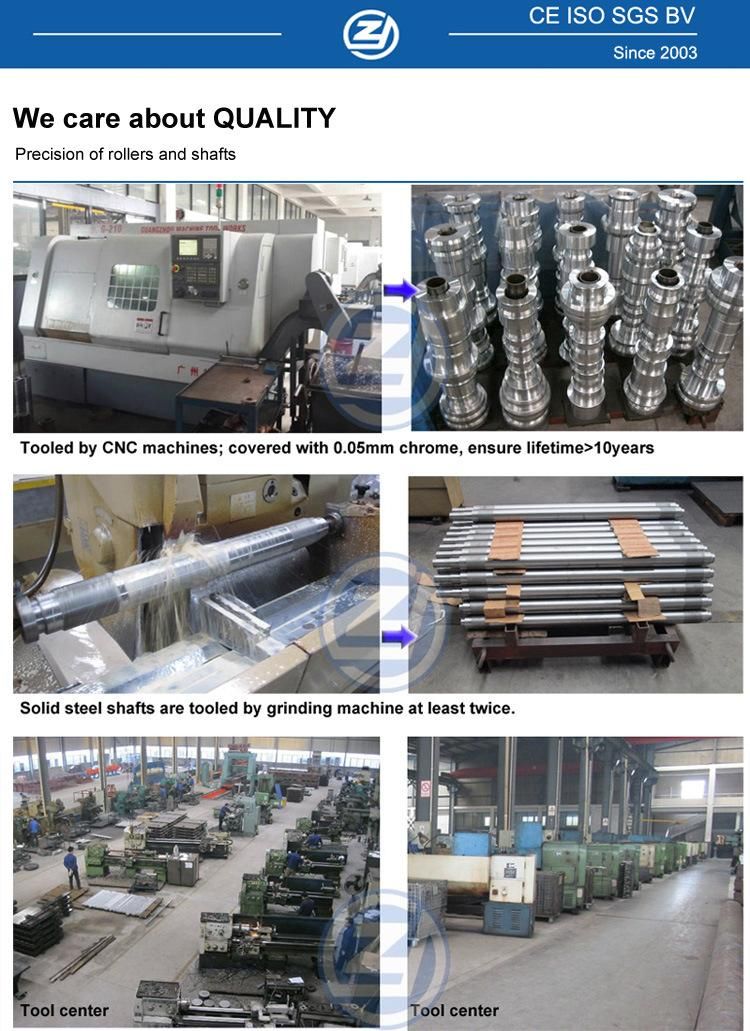

4. Lifetime>10years: roller cover with 0.05mm chrome
72mm diameter solid steel shaft
Cutting blade with heat treatment.
5. Cr12 mould steel cutter with quenched treatment.
6. Product cut-to-length.
8.Technician overseas installing and training available


About us
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.

1.  Capacity: 12-15 sets/month
2.  Delivery: in only 5-8 weeks for urgent order
3.  Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
     --from raw material to the final high-precision forming machine. We have our precise tooling center.
5.  You can rely on our team!
      We have engineers with experience more than 15 years in metal forming industry.






Please feel free to contact us for more information!
