800mm CNC Pipe Profile Cutter Machine
Shanghai Tayor Heavy Industry (Group) Co., Ltd.- Customized:Customized
- Layout:Horizontal
- Cutting Material:Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
- Automatic Grade:Automatic
- Power Source:Electric
- Cutting Mode:Plasma Cutting
Base Info
- Model NO.:CNCXG800-V
- Pipe Cutting Od:800mm
- Flame Cutting Thickness:6-40mm
- Plasma Cutting Thickness:1-20mm
- Transport Package:Wooden Case
- Specification:CE, CCC, ISO
- Trademark:TAYOR
- Origin:China
- HS Code:8456901000
- Production Capacity:500 Set,Year
Description
Technical specificationModel CNCXG600 CNCXG800 CNCXG1000 CNCXG1250 Cutting Pipe Diameter (mm) Φ50-630 Φ60-800 Φ100-1000 Φ200-1250 Pipe length(mm) 2000-12000 Cutting Speed (mm/min) 80-1800 Cutting Thickness(mm) Oxy-fuel:5-60mm, Plasma:1-25mm Plasma max beveling angle ±45° Oxy-fuel max beveling angle ±60° Basic components Pipe Chuck 3 jaws concentric chuck Cutting Mode Oxy-fuel and Plasma Number of Control Axes 2-6 Driving Motor Servo motot Available Plasma Power Hypertherm, Thermadyne, Kjellberg ,TAYOR LGK Other Data Operation language English or Chinese Power voltage 3×380V±10% or up by user's local condition

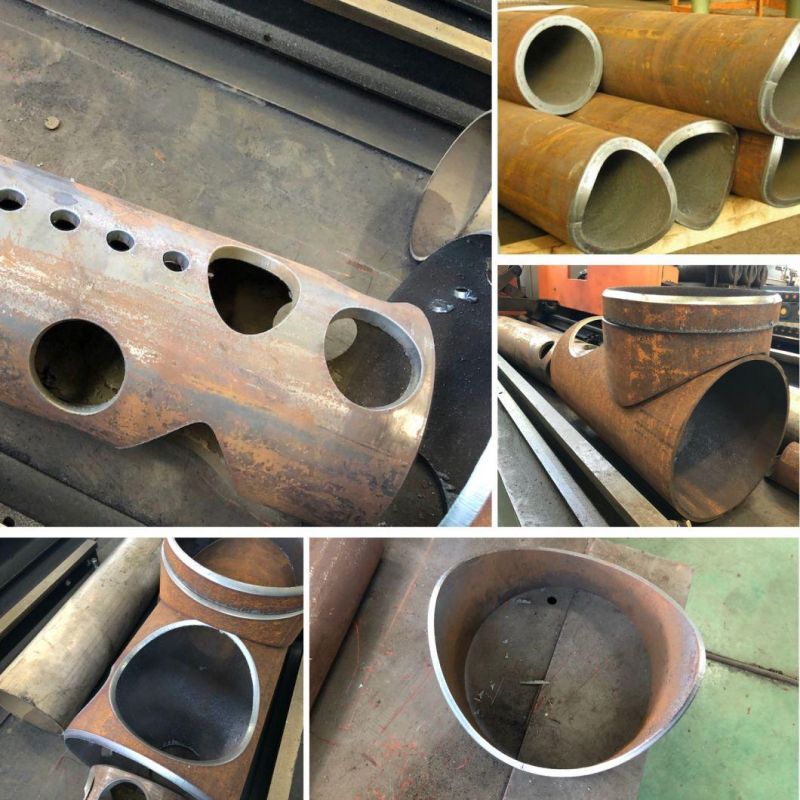

Cutting Sample

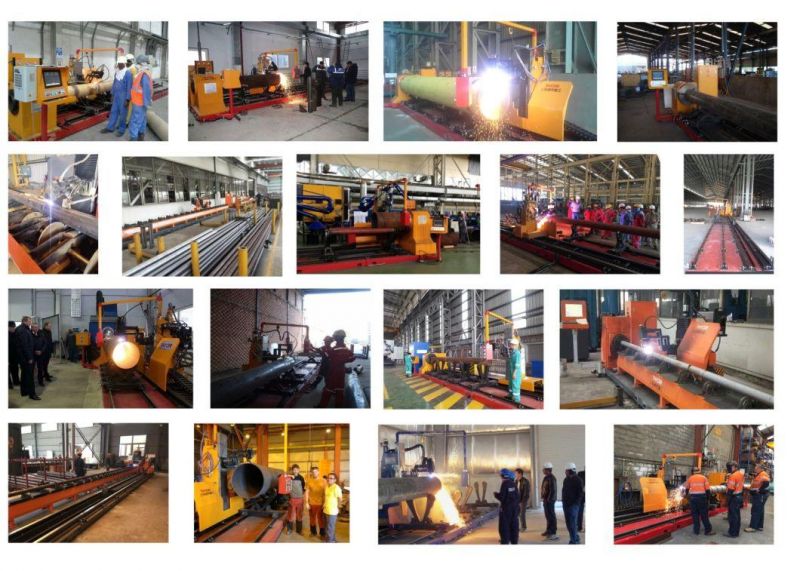

Workshop


Packing and Delivery

User's Site

Cutting Sample

Workshop


Packing and Delivery

User's Site
