• Model NO.：CNCXG1000
• Pipe Cutting Od：100mm-1000mm
• Cutting Model：Plasma Cutting
• Axis：5
• Pipe Cutting Length：12m
• Plasma Model：Powemax125
• Transport Package：Wooden Case
• Specification：CNCXG1000-V
• Trademark：TAYOR
• Origin：China
• HS Code：8456901000
• Production Capacity：100 Sets, Year

Basic Info.

Model NO. CNCXG1000 Pipe Cutting Od 100mm-1000mm Cutting Model Plasma Cutting Axis 5 Pipe Cutting Length 12m Plasma Model Powemax125 Transport Package Wooden Case Specification CNCXG1000-V Trademark TAYOR Origin China HS Code 8456901000 Production Capacity 100 Sets/ Year

Product Description

TAYOR CNC pipe cutting machine

CNCXG numerical control pipe cutting machine is special designed steel pipe 3-D auto-cutting equipment.
After inputting of basic data or leading proper format files, it is capable of automatically processing hole cutting, beveling, grooving, multi-branch and shrimp sections.
It is widely used in steel structure, oceaneering, bridge and steel tower building, petrochemical piping and pressure vessel industry.

Oxy-fuel and plasma cutting and beveling
Maximum cutting pipe diameter 1500mm
3D Cutting
Touch screen panel, convenient and fast data inputting, easy to use and learn
Saving cutting data any time, able to create technical data base by user
Compatible with Steel Structure designing software, expanding of machine function
Stable and reliable, able to cutting successive

Technical specification
Model CNCXG600 CNCXG800 CNCXG1000 CNCXG1250
Cutting Pipe Diameter (mm) Φ 50-630 Φ 60-800 Φ 100-1000 Φ 200-1250
Pipe length(mm) 2000-12000
Cutting Speed (mm/min) 80-1800
Cutting Thickness(mm) Oxy-fuel: 5-60mm, Plasma: 1-25mm
Plasma max beveling angle ± 45°
Oxy-fuel max beveling angle ± 60°

Basic components
Pipe Chuck 3 jaws concentric chuck
Cutting Mode Oxy-fuel and Plasma
Number of Control Axes 2-6
Driving Motor Servo motot
Available Plasma Power Hypertherm, Thermadyne, Kjellberg, TAYOR LGK
Other Data
Operation language English or Chinese
Power voltage 3× 380V± 10% or up by user's local condition

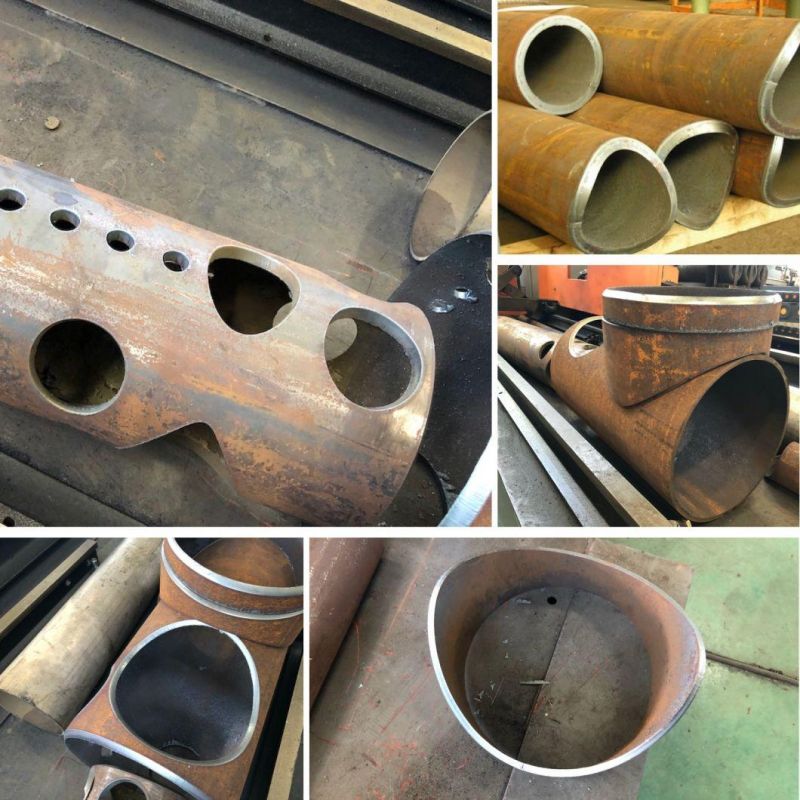

Cutting Sample

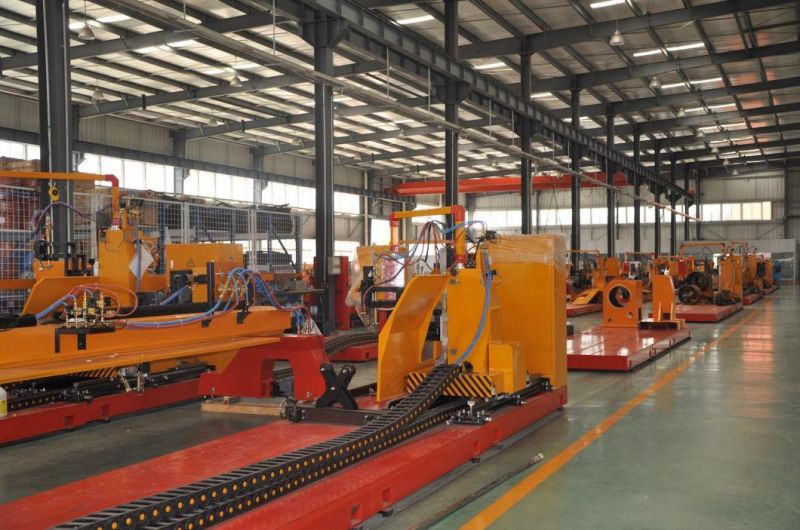

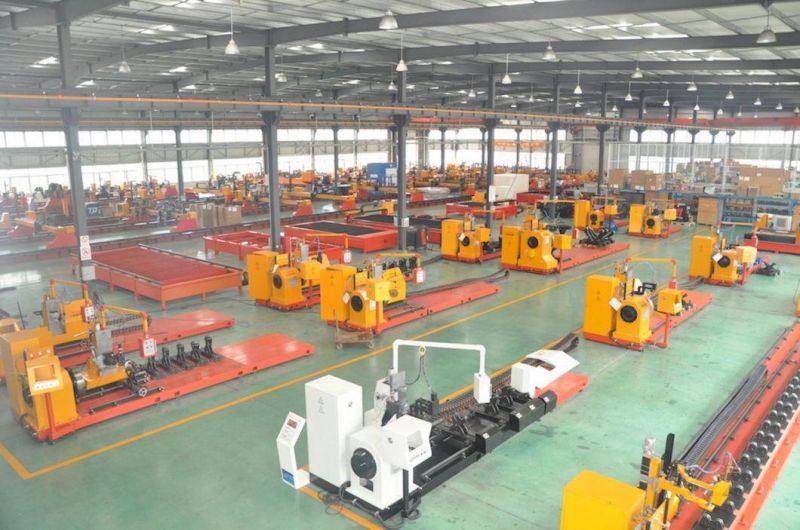

Workshop

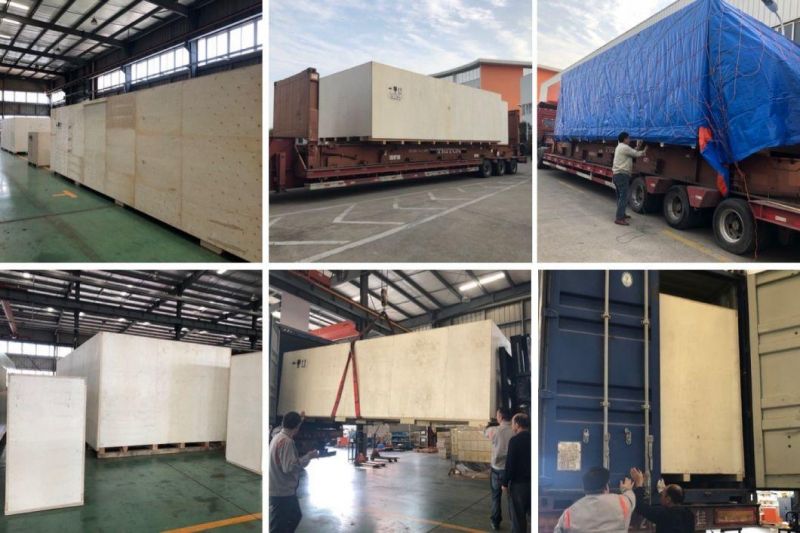

Packing and Delivery

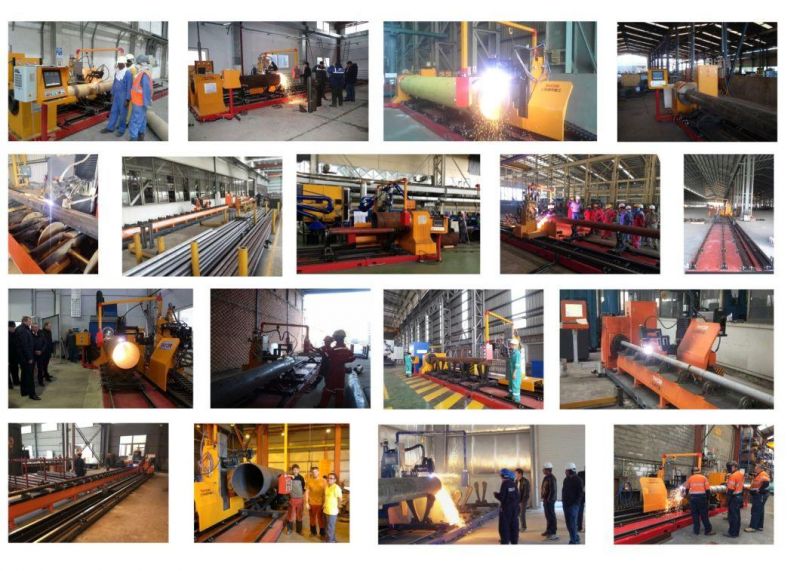

User's Site
