• Model NO.：step tile forming machine
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Brand Name：Zhongyuan
• Model Number：Zyyx27-190-950
• Power：5.5kw
• Tile Thickness：0.5-0.6mm
• Working Speed：About 1500-2000mm,Min or 4-5m,Min. for Option
• Controlling System：Mitsubishi PLC & Converter
• Machines Weight：About 9000kgs
• Machines Size：About 10m*1.7m*1.4m (Depend on Final Design)
• Transport Package：Suitable for Sea Transport
• Specification：CE SGS BV
• Trademark：Zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：15 Sets,Month

ItemSpecification
MaterialTypePre-painted steel coil & galvanized coilsThickness(mm)0.5-0.6Yield strength(mpa)235-345Roller material45#Chrome steelForming speed(m/min)About 15-20Output speed(m/min)5-6Speed adjusting modeAC FrequencyRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mould steel Length measurement EncoderControl mode Mitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power(kw)5.5KWTotal power(kw)11KW

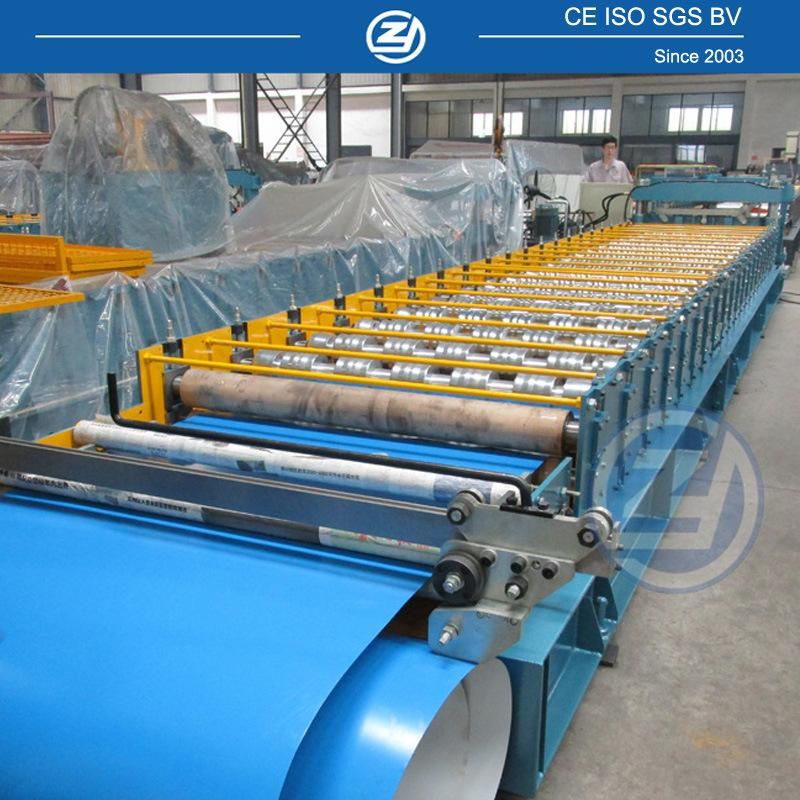

Components of machineDecoiler1set  Feeding & guiding device1setMain roll forming machine1setHydraulic pressing system1setHydraulic cutting system1setControlling system1setRun out table 1set
Process flowDecoiler -- Feeding & Guiding -- Roll forming---Hydraulic pressing ---Hydraulic Cutting - product to run out table






Why choose this machine?
1. Lifetime seivices
2. Introduced Mitsubishi PLC with touch screen to machine controll system.
3. One worker operation (minimum)
4. Lifetime>10years: roller cover with 0.05mm chrome

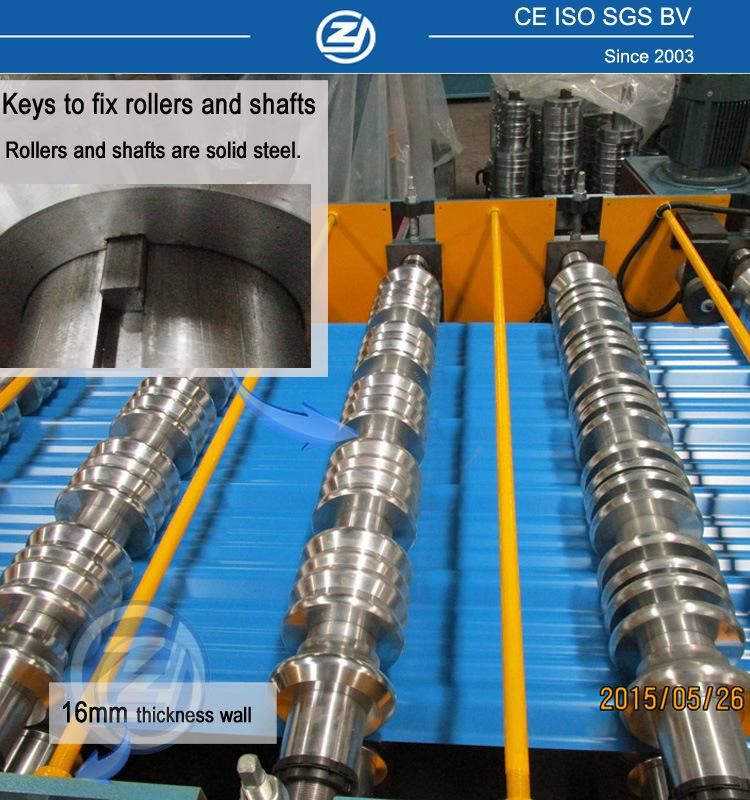

72mm diameter solid steel shaft
Cutting blade with heat treatment.
5. Cr12 mould steel cutter with quenched treatment.
6. Product cut-to-length.
8.Technician overseas installing and training available




About us
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.

1.  Capacity: 12-15 sets/month
2.  Delivery: in only 5-8 weeks for urgent order
3.  Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
     --from raw material to the final high-precision forming machine. We have our precise tooling center.
5.  You can rely on our team!
      We have engineers with experience more than 15 years in metal forming industry.



Please feel free to contact us for more information!
