• Model NO.：ZYYX
• Advantage：Work Flexible
• Condition：New
• Power：5.5kw
• Tile Thickness：0.4-0.6mm
• Working Speed：About 1500-2000mm,Min or 4-5m,Min. for Option
• Controlling System：Mitsubishi PLC & Converter
• Machines Weight：About 9000kgs
• Machines Size：About 10m*1.7m*1.4m (Depend on Final Design)
• Operation Language：English or as Per Client`S Required
• Guarantee Time：First Year Free, Lifetime Services
• Transport Package：Suitable for Sea Transport
• Specification：CE SGS BV
• Trademark：Zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：15 Sets,Month

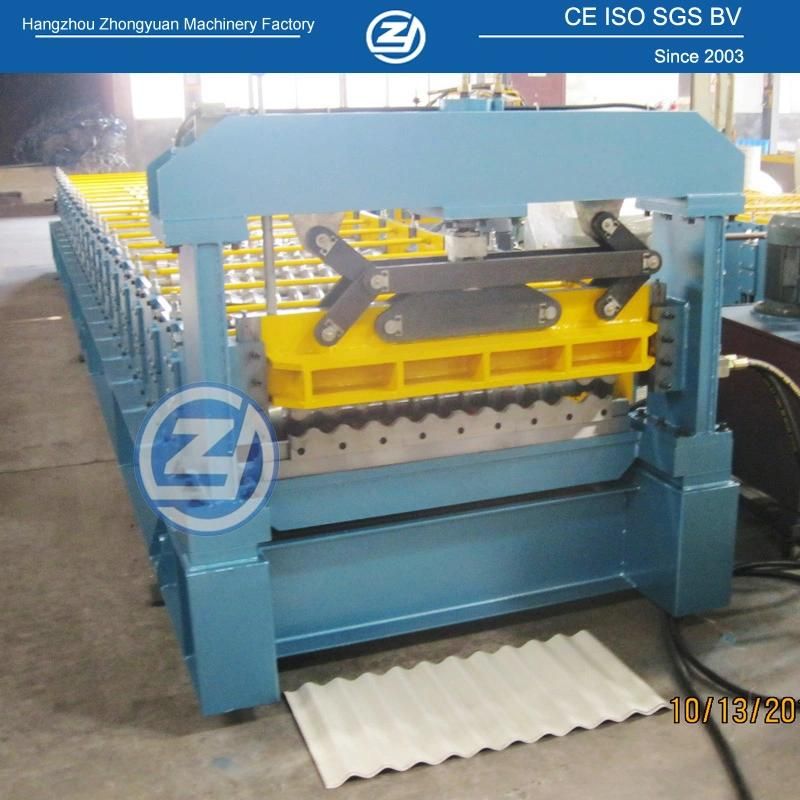

ItemSpecification
MaterialTypePre-painted steel coil & galvanized coilsThickness(mm)0.4-0.6Yield strength(mpa)235-345Roller material45#Chrome steelForming speed(m/min)About 15-20Output speed(m/min)2-3Speed adjusting modeAC FrequencyRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mould steel Length measurement EncoderControl mode Mitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power(kw)5.5KWTotal power(kw)11KW

Feeding & guiding device1setMain roll forming machine1setHydraulic pressing system1setHydraulic cutting system1setControlling system1setRun out table 1set





Components spec.:
1.  Decoiler Max. Capacity: 5000kgs
2.  Hydraulic station power: About2.2Kw (Depend on final design)
3.  Control system: Mitsubishi PLC with touch screen
4.  Cutting length: Cut-to-length


Process flow:
Decoiler -- Feeding & Guiding -- Roll Forming-- Hydraulic Cutting - Product to Run Out Table

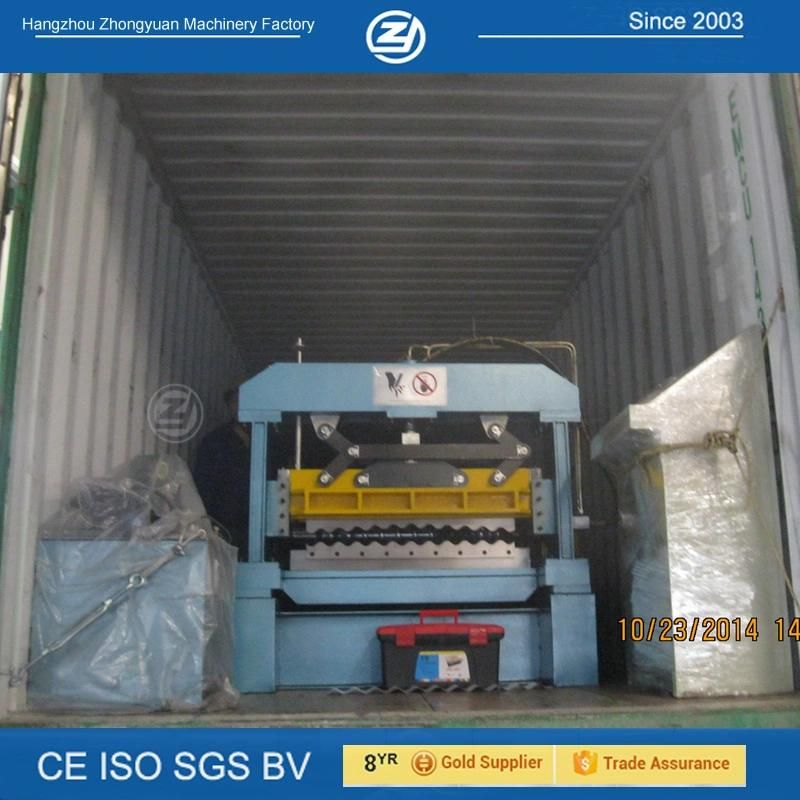

Packing:
1. One 40feet container for loading one set machine with decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.

Delivery : about 50 days









Please feel free to contact us for more information!
