Straight Cutting Torch with Plasma and Flame Machine
Wuxi Lemar Machinery Equipments Co., Ltd.- After-sales Service：Overseas Engineer
- Warranty：13 Months
- Customized：Customized
- Layout：Horizontal
- Cutting Material：Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
- Automatic Grade：Automatic
Base Info
- Model NO.：CNCP
- Cutting Mode：Plasma Cutting
- Model：Cncp Series Cutting Machine
- Cutting Gas：Oxyacetylene Oxygen,Oxyfuel Propane Acetylene
- Rail Gauge：3000,4000,5000,600,7000,9000mm
- Effective Cutting Width：2200,3200,4200,5200,6200,8200mm

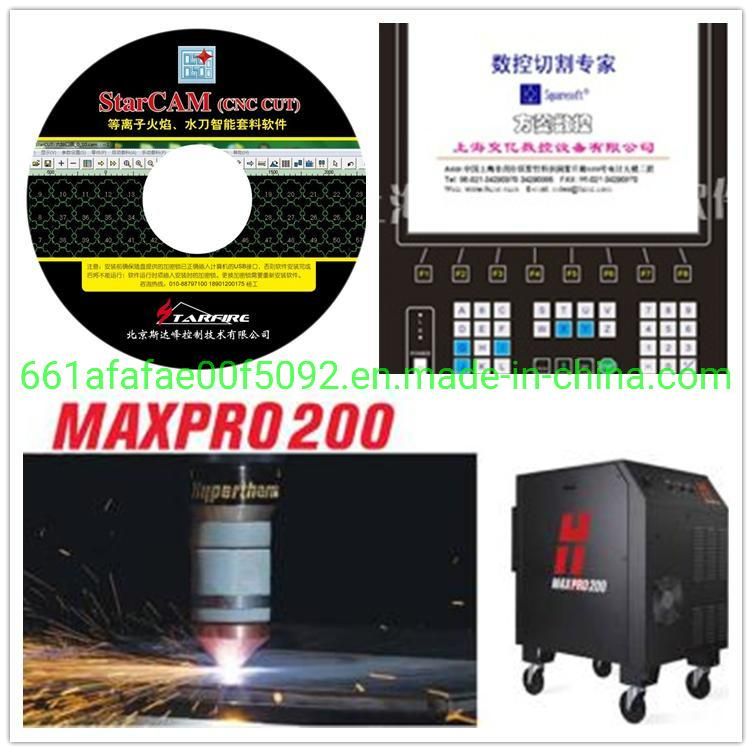

- CNC System：FL(Shanghai) or Starf(Beijing)
- Plasma Model：Lgk, Hypertherm or Customized
- Transmission Mode：Double Drive Precision Rack Transmission
- Plasma Auto Height：Have
- Horizontal Rail：Precision Double-Axis Guide Rail
- Longitudinal Rail：18kg T-Type Rail,24kg Heavy-Duty Rail (Optional)
- Idle Speed：50-10000mm,Min
- Cutting Lift Stroke：1-200mm
- Repeatability：0.5mm
- Plasma Supply Pressure：0.8 MPa
- Flame Supply Pressure：Oxygen Pressure 0.8MPa,Gas Pressure 0.1MPa
- Transport Package：Standard Package
- Specification：Flame Acetylene Gas or Liquefied CNC cutter
- Trademark：Lemar
- Origin：Wuxi, China
- HS Code：8461909000
- Production Capacity：1000 PCS,Year
Description
200mm/min
CNC-4000 4000mm 3200mm CNC-5000 5000mm 4200mm CNC-6000 6000mm 5200mm CNC-7000 7000mm 6200mm CNC-8000 8000mm 7200mm CNC-9000 9000mm 8200mm
Features of Dual drive CNC plasma flame cutting:

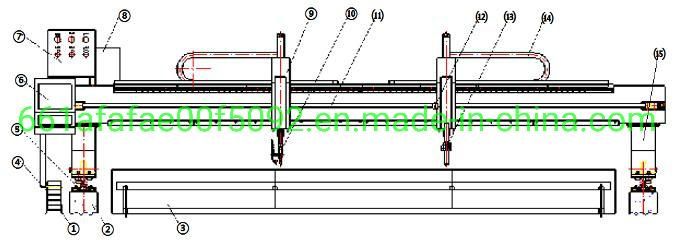

Equipment composition:
Towline
rail base
Material stand
Drag chain fixing rod
Guide rail and guide rail fixed pressure block
Control system (CNC)
Gas Control Center

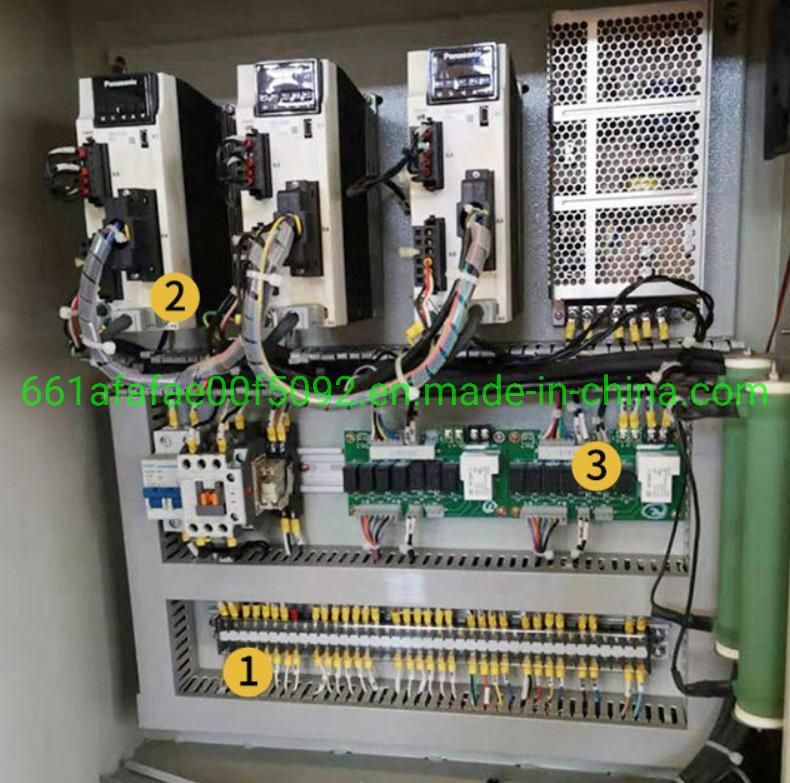

Electrical cabinet
Main moving body

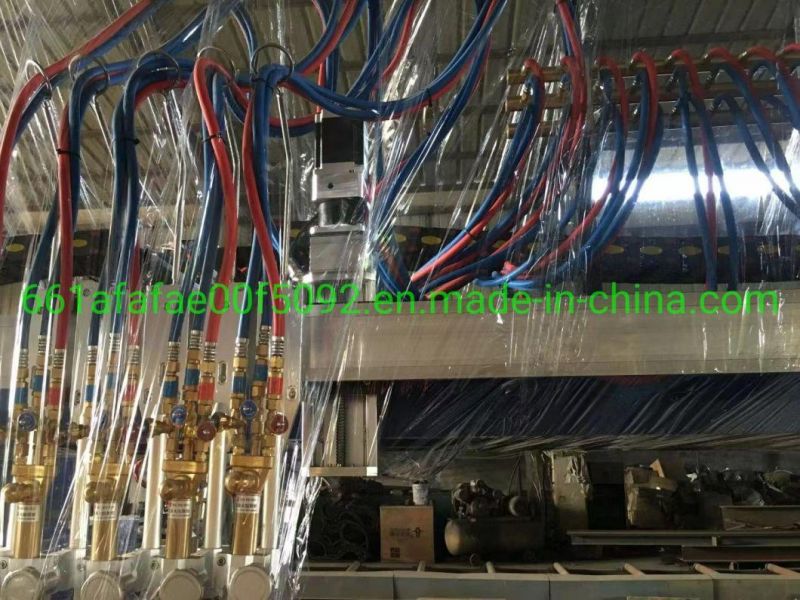

Torch body (plasma or flame)
Beam
Steel belt
Auxiliary moving body and torch body (plasma or flame)
Horizontal drag chain
End beam
Technical documents:
Packing List
Whole machine instruction manual
Operating system of CNC plasma flame cutting machine
Servo System Operation Manual
Plasma Cutting Electrical Schematic

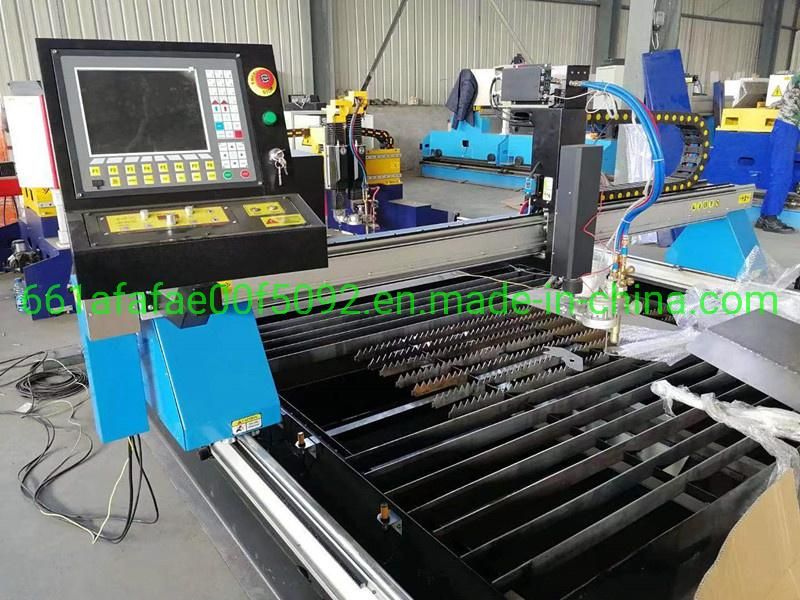

CNC Plasma Flame cutting machine Table type:

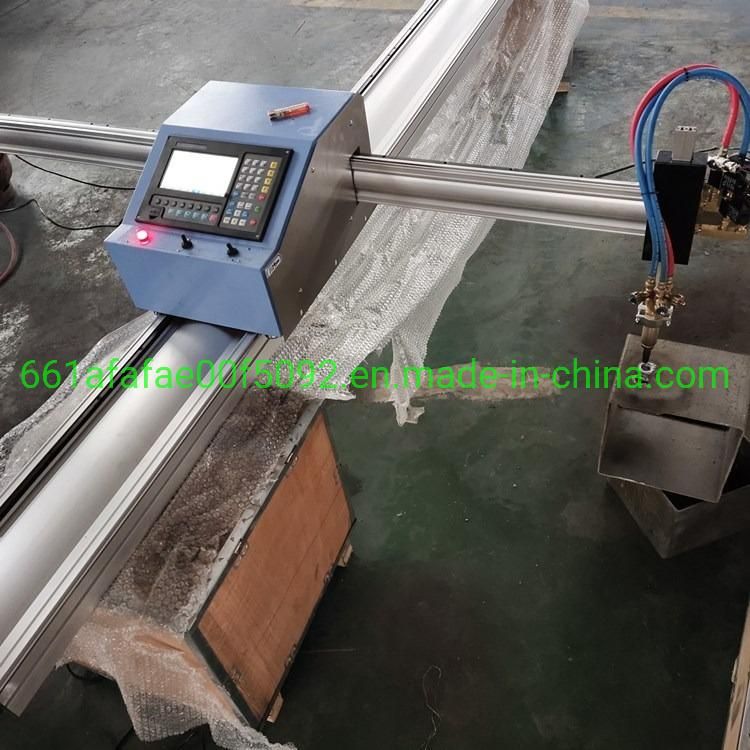

CNC Plasma Flame cutting machine Portable type:
Features of Dual drive CNC plasma flame cutting:
Equipment composition:Towline
rail base
Material stand
Drag chain fixing rod
Guide rail and guide rail fixed pressure block
Control system (CNC)
Gas Control Center
Electrical cabinet
Main moving body
Torch body (plasma or flame)
Beam
Steel belt
Auxiliary moving body and torch body (plasma or flame)
Horizontal drag chain
End beam
Technical documents:
Packing List
Whole machine instruction manual
Operating system of CNC plasma flame cutting machine
Servo System Operation Manual
Plasma Cutting Electrical Schematic
| No. | Item | Details |
| 1 | Working environment temperature | -5ºC-50ºC |
| 2 | Relative humidity | 90% non-condensing |
| 3 | Surrounding environment Ventilation | ≤5m |
| 4 | Power supply voltage | 220V±5% 380V±5% |
| 5 | Power frequency | 50Hz |
| Input power machine tool | 3KW | |
| 6 | Grounding Type | Centralized Direct |
CNC Plasma Flame cutting machine Table type:
CNC Plasma Flame cutting machine Portable type:
