• Model NO.：CNC-1240
• Power Source：Electric
• Cutting Mode：Gas Cutting
• Name：CNC Plasma Cutter Table
• Cutting Source：Flame Cutting or Plasma Cutting or Both
• Drive Mode：Automatic CNC Cutting Machine
• Cutting Control：CNC
• Plasma Source：Huayuan Lgk or Customized
• OEM：Yes
• Effective CNC Cutting Width：1250mm
• Effective CNC Cutting Length：4000mm

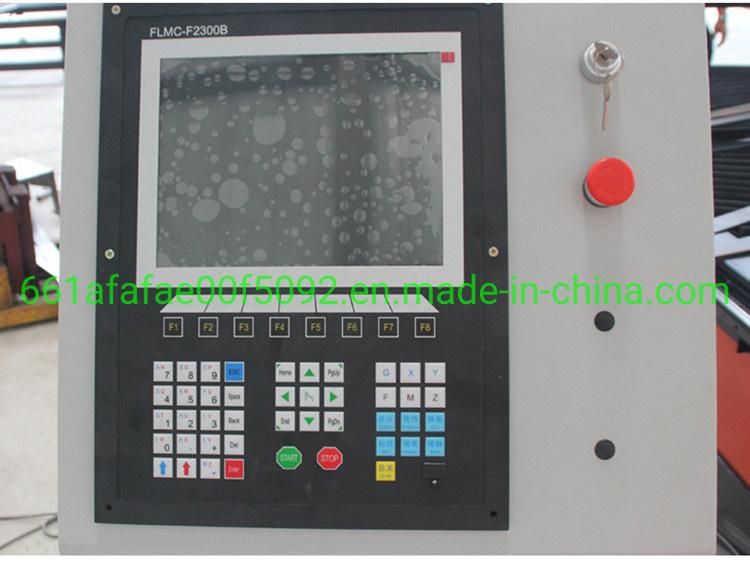

• CNC Control System：FL2300b
• Working Voltage：380V 3p 50Hz
• Reposition Precision：0.02mm
• Processing Precision：0.1mm
• Max Cutting Speed：12000mm,Min
• Torch Height Control：Automatic
• Cutting Thickness：Max 40mm Carbon Steel Plasma Cutting
• Transport Package：Standard Package
• Specification：Flame Acetylene Gas or Liquefied CNC cutter
• Trademark：Lemar
• Origin：Wuxi, China
• HS Code：8461909000
• Production Capacity：1000 PCS,Year

Basic Info.

Model NO. CNC-1240 Power Source Electric Cutting Mode Gas Cutting Name CNC Plasma Cutter Table Cutting Source Flame Cutting or Plasma Cutting or Both Drive Mode Automatic CNC Cutting Machine Cutting Control CNC Plasma Source Huayuan Lgk or Customized OEM Yes Effective CNC Cutting Width 1250mm Effective CNC Cutting Length 4000mm CNC Control System FL2300b Working Voltage 380V 3p 50Hz Reposition Precision 0.02mm Processing Precision 0.1mm Max Cutting Speed 12000mm/Min Torch Height Control Automatic Cutting Thickness Max 40mm Carbon Steel Plasma Cutting Transport Package Standard Package Specification Flame Acetylene Gas or Liquefied CNC cutter Trademark Lemar Origin Wuxi, China HS Code 8461909000 Production Capacity 1000 PCS/Year

Product Description

Lemar Machinery is a metal fabrication machines supplier integrating production and sales, with extensive experience in cutting machines.

Featured products are:
CNC cutting machine
CNC plasma cutting machine
Desktop cutting machine table
Portable cutting machine
Large gantry type plasma flame CNC cutting machine
Pipe and plate intersecting line cutting machine

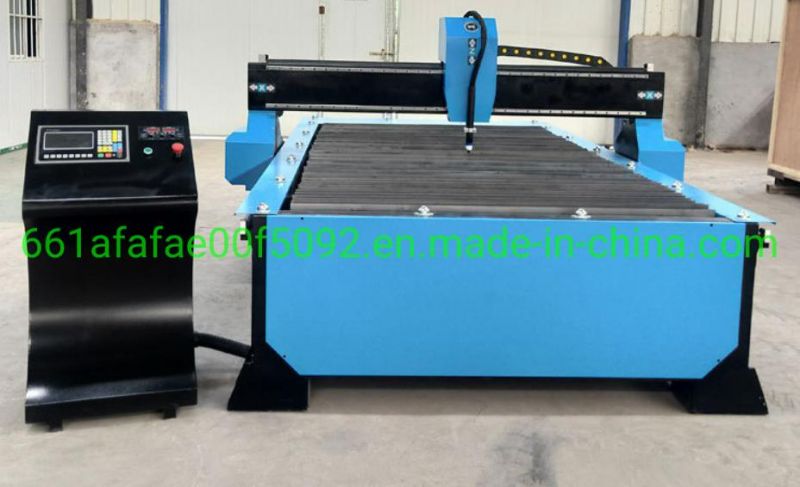

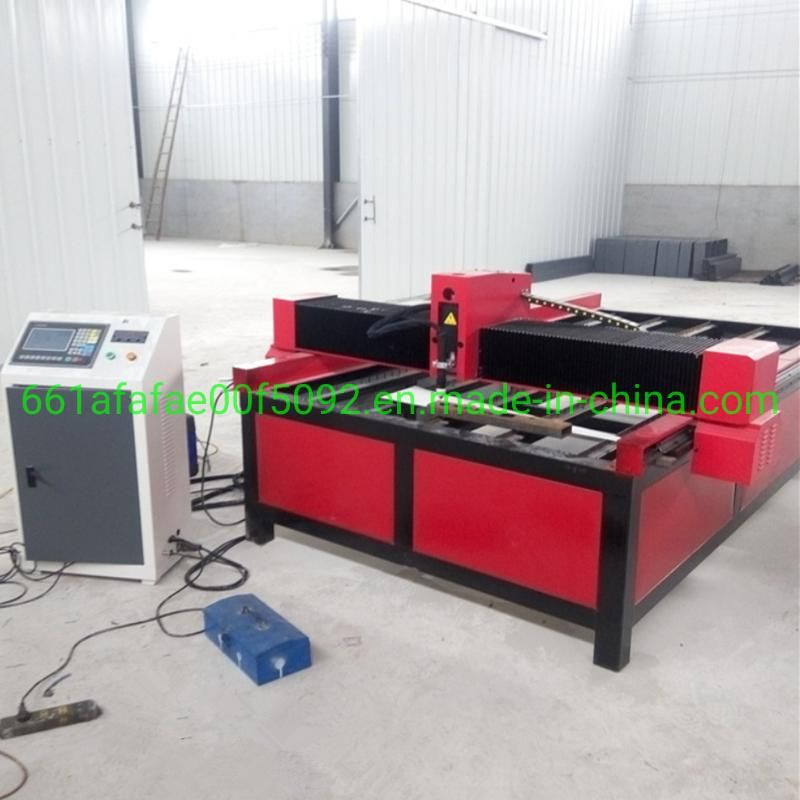

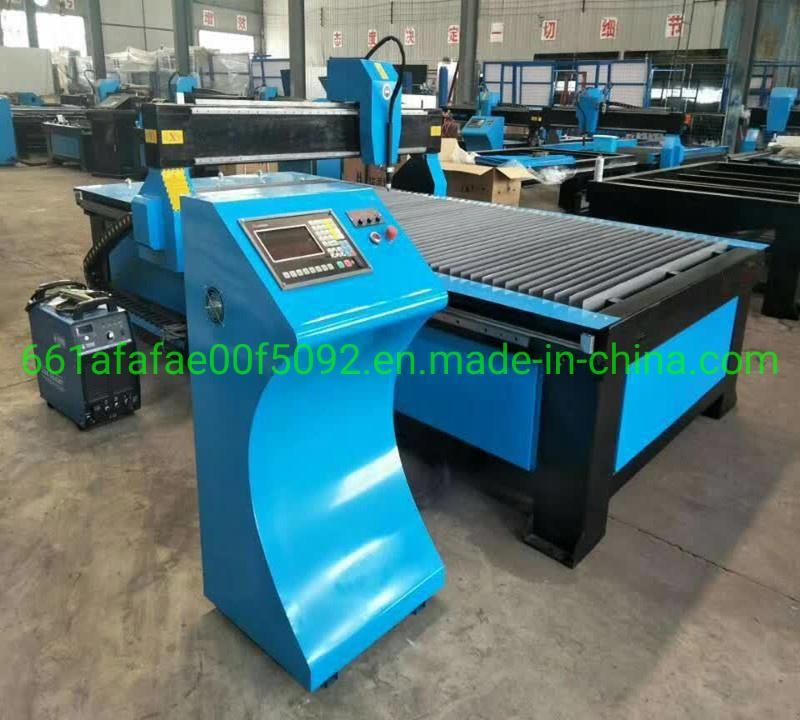

Desktop plasma cutting machine as Wuxi Lemar most popular cnc cutting machine with fast cutting speed and high precision.
The cutting opening is small and neat, and there is no slag drop phenomenon.

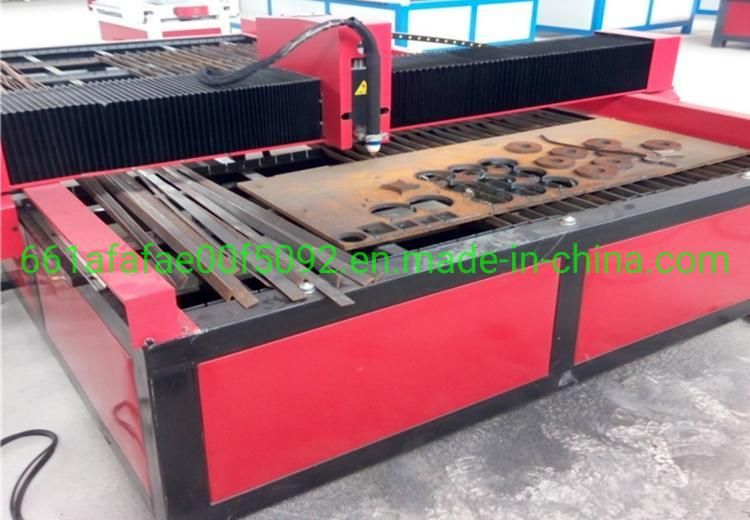

The CNC cutting machine is equipped with a flame cutting torch and a plasma cutting torch according to customer needs, suitable for cutting aluminum, steel, iron, copper, titanium gold plates and other conductive metal sheets with a thickness of 30mm and below. Among them, the thickness of flame cutting plate can reach 200mm, and the thickness of plasma cutting is determined according to the plasma power source selected by the customer.

Specifications:


Way of control	CNC
Flame cutting thickness	6-200mm
Plasma cutting thickness	≤30mm
How it works	Inverter CNC Metal Cutting Machine
Torch	1 flame + optional 1 plasma torch
Motor	Stepper Motor/Servo Motor
Automatic nesting software	Italian Starcam
Torch lift distance	0-200mm
Automatically adjust the precision	≤±1%

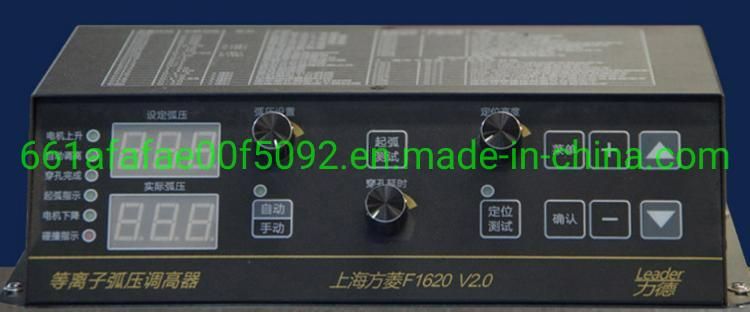

Arc voltage height controller	Shanghai FangLing
Beam span	3000-3500mm(Customized)
Longitudinal rail length	7000mm(Customized)
Machine comprehensive accuracy (as shown on the right, the length of the four sides is 1000*1000)
Line drawing speed 500-800mm/min	±0.5mm
Diagonal error AD-BC	LCD
On-screen display	water cooling

Features:

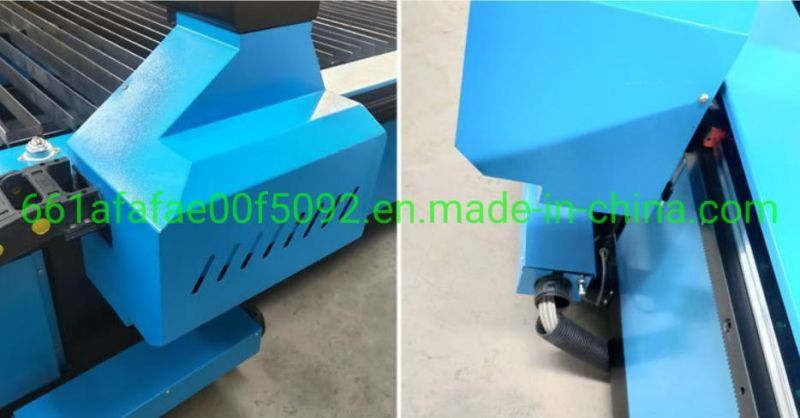

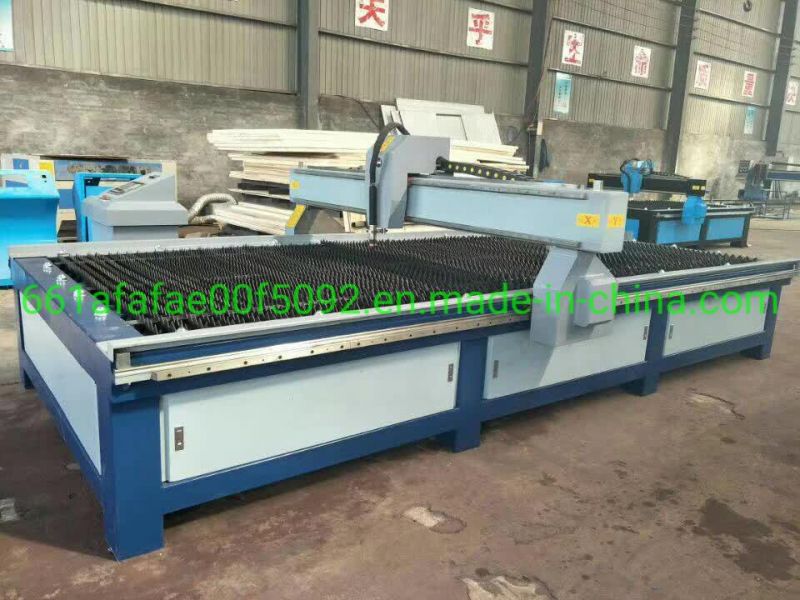

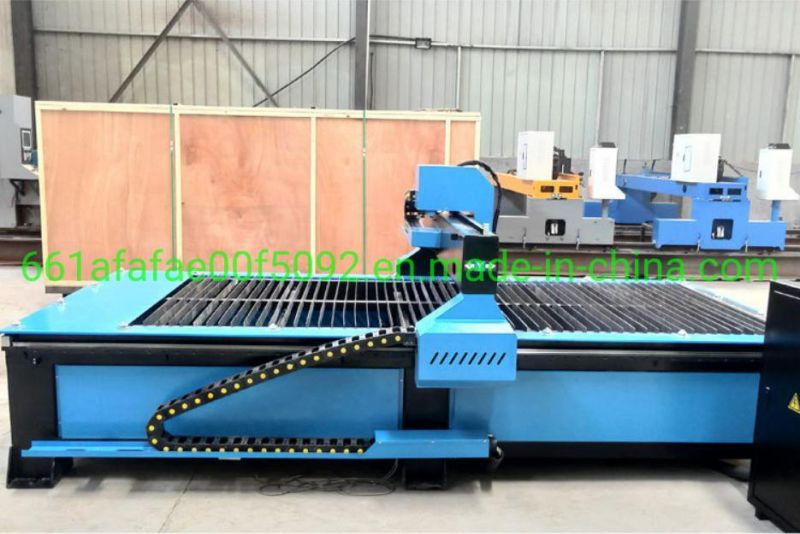

1. The desktop CNC cutting machine is an integral structure, supported by multiple columns.
Vertical and horizontal guide rails, headers, etc. are integrated into a whole, which is convenient for overall moving.

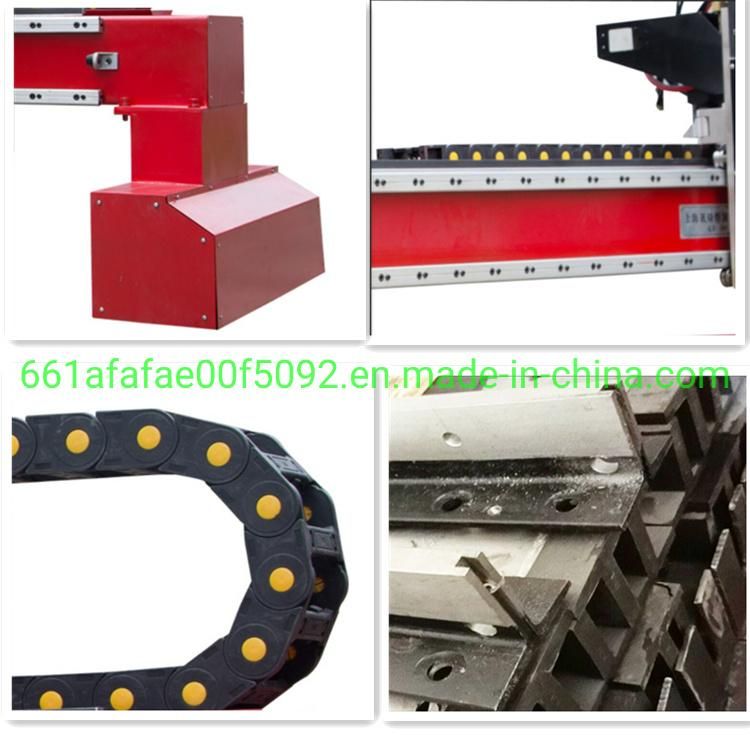

2. Bilateral Dual drive, stable mechanical operation. Horizontal use of optical axis linear guide, high precision

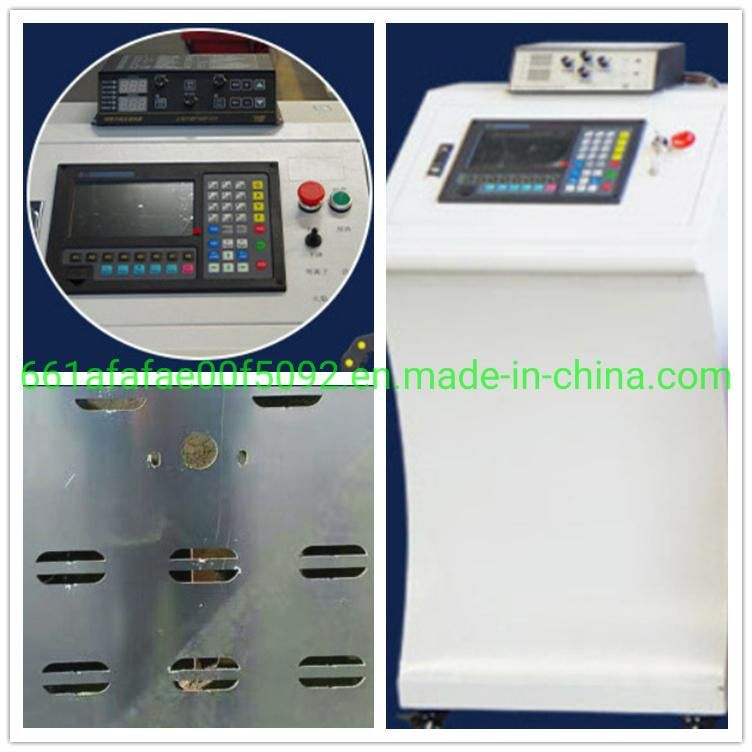

3.The control system is Shanghai Jiaotong University or Beijing Star Peak, with excellent stability and super anti-interference ability
The desktop CNC plasma cutting machine adopts Chinese and English interface, which is simple and convenient to operate.
CNC Plasma metal sheet cutting table type is equipped with special Chinese graphics conversion software, which can directly convert CAD graphics into cutting processing codes.



4. The fully automatic CNC plasma flame gas cutting machine for metal sheet is equipped with a U disk interface, and the office design graphics are transferred to the cutting machine through the U disk.
Simple graphics can be directly input to the cutting machine.
The conversion software is all displayed in Chinese (also in English), the cutting process design is simple, and the unclosed graphics can also be processed, so as to realize the common edge cutting well. The software functions are more applicable and powerful.



Technical Services:

1. Before the contract is signed, the company provides customers with professional guidance and technical consultation on the relevant CNC cutting machine technology, so that customers can easily choose the appropriate CNC cutting machine;
2. Sign the contract and timely feedback the production progress to the customer, so that the customer can more intuitively understand the production status of the CNC cutting machine they ordered;
3. After the customer receives the CNC cutting machine from Lemar, we will provide a complete installation manual and instructions for use, and promise to complete the installation and commissioning of the plasma desktop CNC cutting machine within 5 working days;
4. The company provides free technical training until the buyer's operator can use the CNC cutting machine normally;
5. The warranty period is one year, and we provide a full free warranty for equipment failures that are not caused by human factors;
After the expiration of the warranty period, in the event of equipment failure, we will respond within 3 hours to help the customer deal with it in time and ensure the normal use of the machine.
