• Model NO.：CNC
• Power Source：Electric
• Cutting Mode：Gas Cutting
• Function：Flame Gas Cutting for Metal Sheet
• Voltage：380 V ~440 V
• CNC Control System：F2300b
• Cutting Machine Moving Speed：3500 mm,Min
• Diagonal Difference：Less Than 0.5
• Gas Source：Compressed Air
• Guage：3000-10000mm
• Min Torch Spacing for CNC Cutting：200mm
• Min Torch Spacing for Flame Cutting：80mm
• Cutting Thickness of Flame：6-200mm
• Plasma Cutting Thickness：1-30mm
• Cutting Source：Chinese or USA Brand
• Cutting Speed：50-1000mm,Min
• Delivery Time：7 Days
• Idle Speed：Less Than 6000mm,Min
• Transport Package：Standard Package
• Specification：Flame Acetylene Gas or Liquefied CNC cutter
• Trademark：Lemar
• Origin：Wuxi, China
• HS Code：8456909000
• Production Capacity：1000 PCS,Year

Basic Info.

Model NO. CNC Power Source Electric Cutting Mode Gas Cutting Function Flame Gas Cutting for Metal Sheet Voltage 380 V ~440 V CNC Control System F2300b Cutting Machine Moving Speed 3500 mm/Min Diagonal Difference Less Than 0.5 Gas Source Compressed Air Guage 3000-10000mm Min Torch Spacing for CNC Cutting 200mm Min Torch Spacing for Flame Cutting 80mm Cutting Thickness of Flame 6-200mm Plasma Cutting Thickness 1-30mm Cutting Source Chinese or USA Brand Cutting Speed 50-1000mm/Min Delivery Time 7 Days Idle Speed Less Than 6000mm/Min Transport Package Standard Package Specification Flame Acetylene Gas or Liquefied CNC cutter Trademark Lemar Origin Wuxi, China HS Code 8456909000 Production Capacity 1000 PCS/Year

Product Description

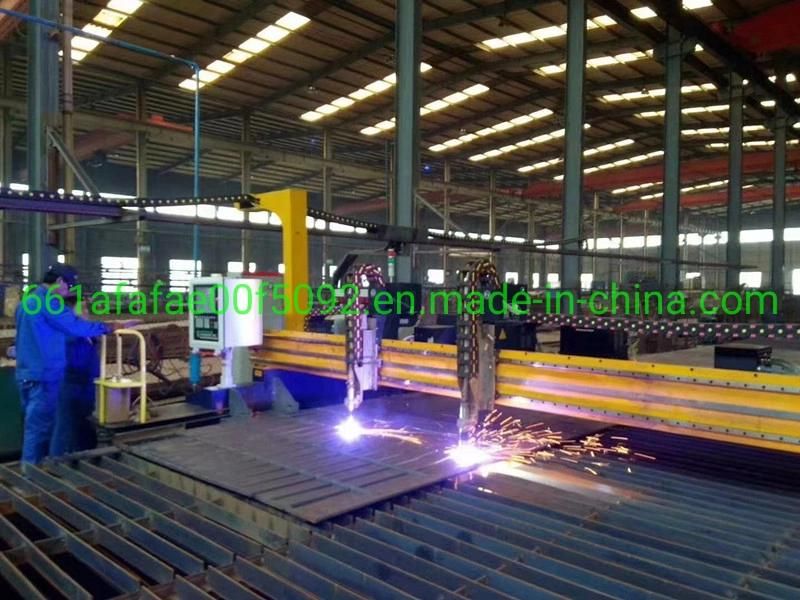

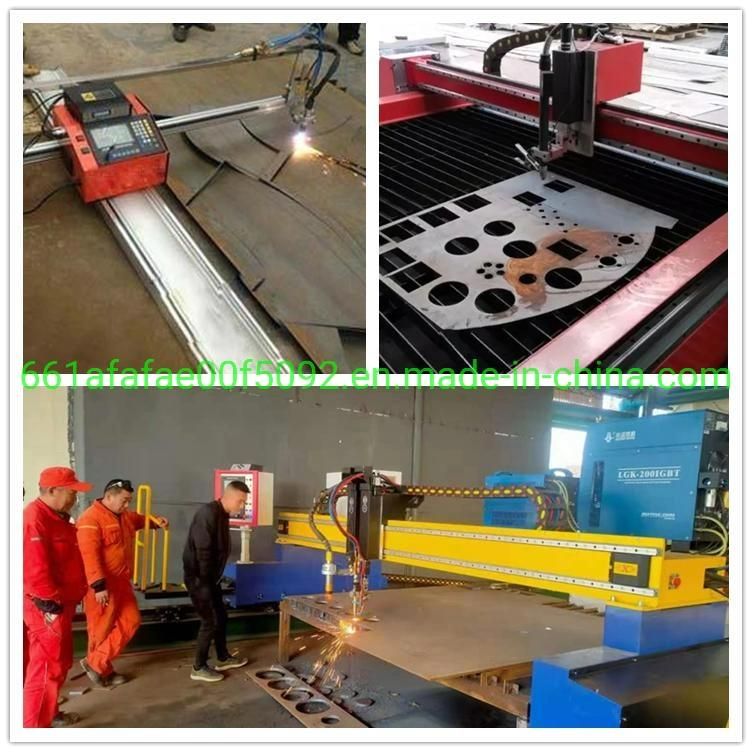

The portable CNC plasma cutting machine is a cantilever structure and can be equipped with plasma cutting.
It is a high-efficiency, energy-saving cutting equipment, light weight and economical CNC plasma cutting machine.

Specification:


Model	CNC-4000
Rail distance	4000mm
Driver mode	Bilateral drive
Rail No.	24/38KG
Effective cutting width	3200mm
Torch lift stroke	170mm
Cutting machine moving speed	50-8000mm/min
Power supply model	USA Hypertherm PowerMax105
Cutting steel plate thickness	Mild Steel: 25mm Stainless Steel:22mm
perforation capacity	Mild Steel:16mm
input power	AC220V 50Hz 1P
cut surface roughness	Ra12.5
Diagonal difference	≤0.5(1000×1000square dash)
positioning error	≤0.5mm/m
Gas source	compressed air

CNC plasma cutting machines are classified according to their working methods:

Dry plasma cutting machine
Semi-dry plasma cutting machine
Underwater plasma cutting machine

According to cutting quality:

Ordinary plasma cutting machine
Fine Plasma Cutting Machine
Laser-like plasma cutting machine, etc.

According to the structure, it is divided into:

Portable Plasma Oxygen Cutting Machine
CNC flame straight cutting machine
CNC flame plasma cutting machine
Desktop CNC plasma flame cutting machine



Features:
1.The rack drive adopts the motor to drive the rack and pinion bilateral drive;

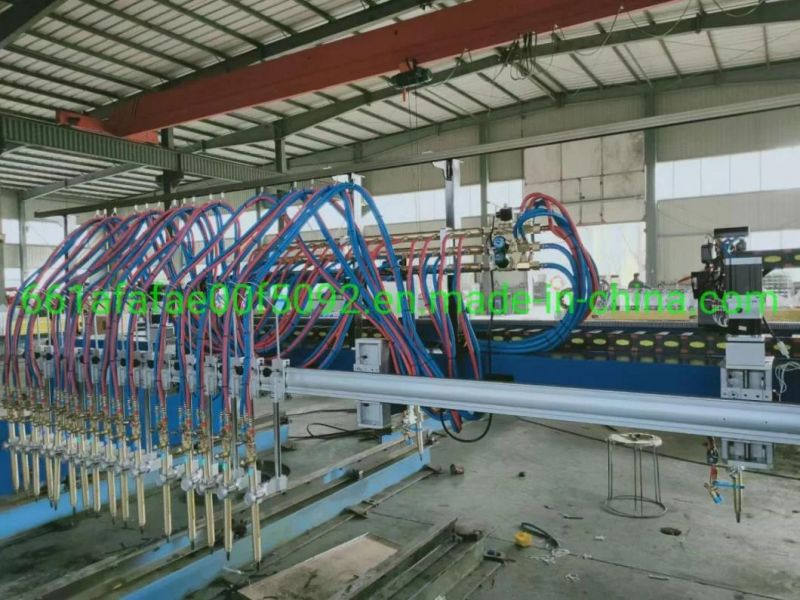

2.Steel belt drive is adopted between the active and driven cutting torch frames. The steel belt has high strength and elasticity and is used to drag the driven cutting torch. The guide wheels at both ends of the beam tighten the steel belt, and the driven cutting torch holder can be clamped. Clamp on the front or back of the steel strip for co-directional or symmetrical cutting.


3. All the cutting torches and electric lifting mechanisms of the heavy steel plasma CNC cutting machine are all assembled on the main beam

4. The CNC flame cutting machine adopts a T-shaped box-type frame, which has a compact structure, beautiful appearance, light weight and small inertia, which is conducive to the rapid cutting and blanking of steel plates.
When the acceleration and deceleration conversion is performed rapidly, the machine has the highest walking accuracy. can still be guaranteed.


5. A horizontal guide wheel is installed on one side of the CNC Metal plasma flame gas cutting machine drive frame, which can adjust the pressing degree of the eccentric wheel at the bottom of the drive frame to the guide rail, so that the horizontal oxygen propane plasma flame cutting machine can maintain stable guidance during the entire operation.
