• Model NO.：DX 1050-210-25
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Mode：1050-210-25 Ibr Roof Sheet
• Feeding Width：1250 Mm
• Finial Product：1050-210-25 Ibr Roof Sheet
• Main Motor：4 Kw
• Pump Motor：4 Kw
• Shaft Diameter：75mm
• Forming Steps：13 Rows
• Main Frame：300 H,U Steel
• Forming Speed：8-12 M,Min
• Machine Size：6500mm*1450mm*1400mm
• Transport Package：Waterproof Package
• Specification：DX 1250-1050-210-25
• Trademark：DIXIN
• Origin：China, Hebei
• HS Code：84552210
• Production Capacity：38 Sets Per Month

Basic Info.

Model NO. DX 1050-210-25 Customized Customized Advantage Easy to Maintenance Condition New Mode 1050-210-25 Ibr Roof Sheet Feeding Width 1250 Mm Finial Product 1050-210-25 Ibr Roof Sheet Main Motor 4 Kw Pump Motor 4 Kw Shaft Diameter 75mm Forming Steps 13 Rows Main Frame 300 H/U Steel Forming Speed 8-12 M/Min Machine Size 6500mm*1450mm*1400mm Transport Package Waterproof Package Specification DX 1250-1050-210-25 Trademark DIXIN Origin China, Hebei HS Code 84552210 Production Capacity 38 Sets Per Month

Product Description

Trapezoidal Profile Building Material Making Machinery ibr sheet forming machine iron Sheet Tile Making Machine Price
Details of Parameters
1. Configurations: Manual decoiler, guiding platform, main machine of roll forming, cutting device, output table, electro-motor, hydraulic station, PLC control system
2. Processing material: Aluminium sheet/galvanized steel sheet/color steel sheet
3. Material thickness: 0.3-0.8mm
4. Effective width: 1050-210-25 mm
5. Feeding width: 1250 mm
6. Main motor power: 4kw
7. Pump power: 4 kw
8. Shaft diameter: 75mm
9. Forming steps: 13 steps
10. Main frame: 300H steel
11. Medium plate thickness: 16 mm
12. Control system: PLC computer control with inverter
13. Power supply: 380V, 3 Phase, 60Hz
14.0veral sized: 6500mm*1450mm*1400mm
15. Total weight: About 3.0 tons
16. Roller material: High grade NO. 45 forged steel, with hard chrome plating
17. Shaft material: High grade NO. 45 carbon wrought steel
18. Cutter material: Cr12 mould steel with quenched treatment.

Consist of/Whole production line
Manual uncoiler---feeding device---rolling form---speed, length, pieces set by PLC---hydraulic mold post cutting---collection table

Package:
15 forming steps in a 40 foot container
13 forming steps in a 20 foot container

1	Direct manufacturer Since 2008
2	Golden customer evaluation and complete after-sale service
3	CE,SGS,BV,TUV--
4	Custom design to satisfy trader,factory or personal use
5	Environmental protection production line ,no harm to environment and animal
6	Easy communication and feedback,professional advice for free
7	Engineer service in your factory available and economic

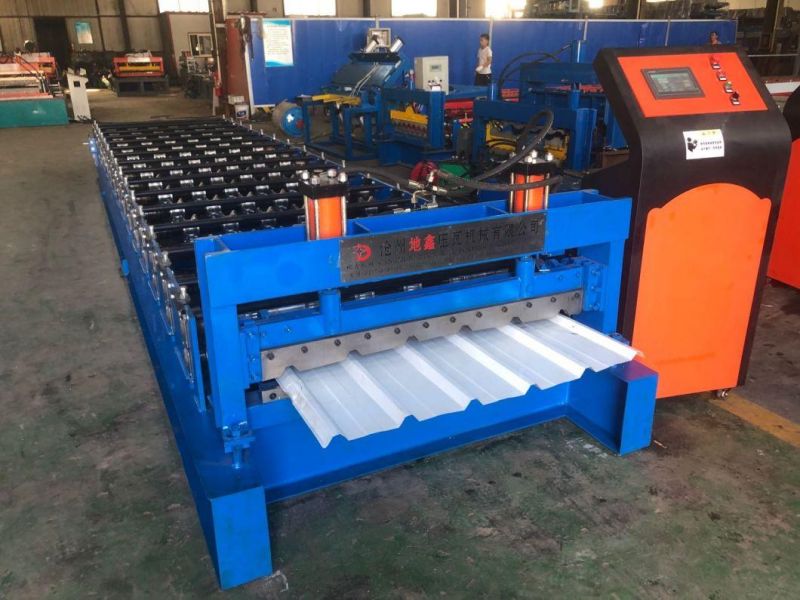

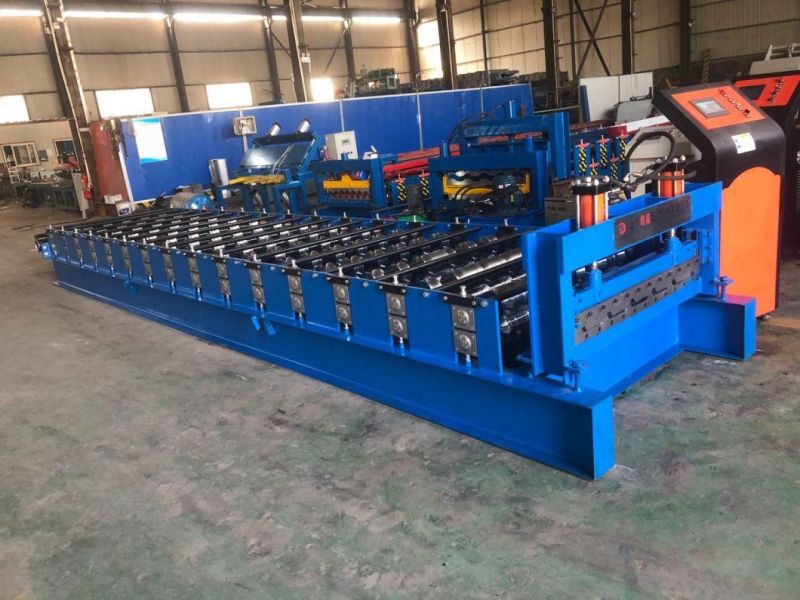

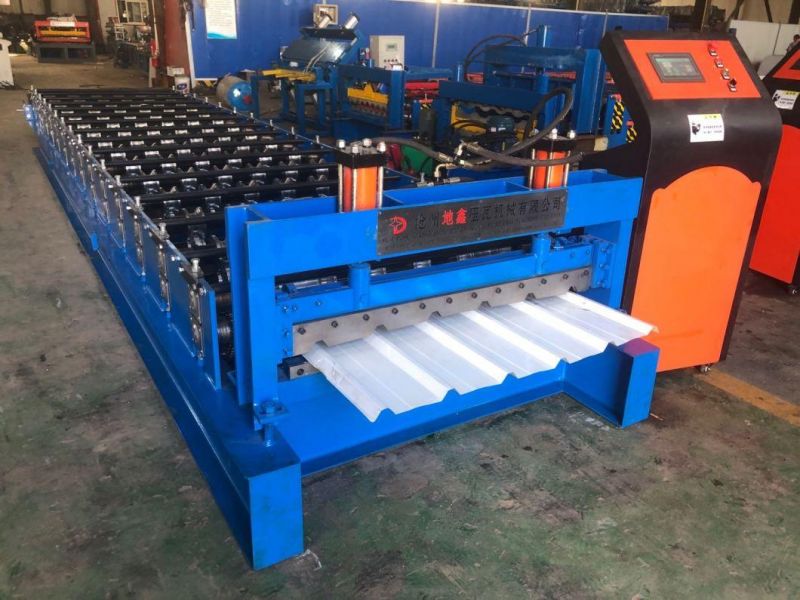

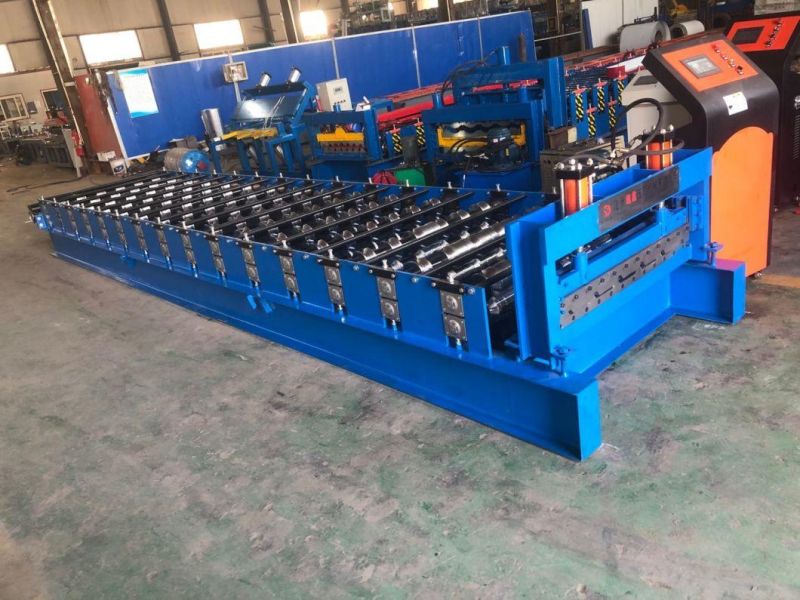

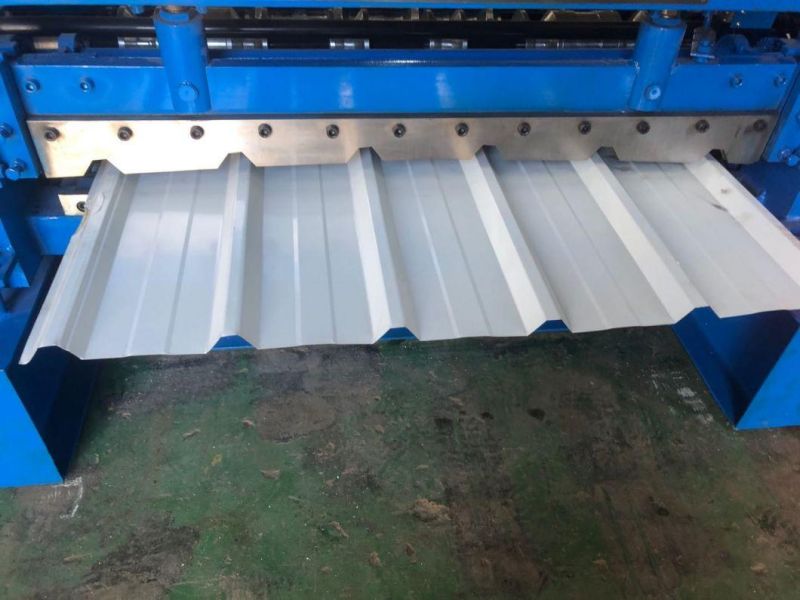

some pictures of the machine

Engineering caseMetal roof machine making machine is widely usedin the construction of various. Industrial manufacturing, villages, warehouses, supermarkets, hotels, exhibition halls, home buildings, etc. It has a three-dimensional and smooth shape, colorful and colorful colors, and can also be customized according to customer requirements for different corrugated board patterns, colors, shapes and corrugated boards of different thicknesses
FAQ: Are you a trading company or a factory?
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll
forming machines.

Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for wider and double layer manufacturing machines. It can produce more than 3 panels.

Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.

Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other
parts, processing, assembly, testing and packaging on the roll surface and shaft.

Q: What can you do if the machine broken?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged
part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through
negotiation and we provide technical support for the entire life cycle of the device.

Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to
install and have low maintenance requirements.

Q: Can we become your agent abroad?
A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation.
