• Model NO.：1050 roll forming Machine
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Name：1050 Roll Forming Machine
• Rolled Material：0.3-0.8mm Thickness
• Effective Width：840,1050mm
• Feeding Width：1000,1250mm
• Forming Steps：13steps
• Roller：45# Forged Steel, Hard Chrome Plating Within 0.05m
• Diameter of Shaft：75mm
• Main Frame：350h Steel
• Main Motor Power：4 Kw
• Pump Power：4kw
• Transport Package：Water-Proof Packaging, Covered with Plastic Film
• Specification：DX 1050
• Trademark：DIXIN
• Origin：Botou Hebei China
• HS Code：845522
• Production Capacity：20 Set Per Year

Basic Info.

Model NO. 1050 roll forming Machine Customized Customized Advantage Use Widely Condition New Name 1050 Roll Forming Machine Rolled Material 0.3-0.8mm Thickness Effective Width 840/1050mm Feeding Width 1000/1250mm Forming Steps 13steps Roller 45# Forged Steel, Hard Chrome Plating Within 0.05m Diameter of Shaft 75mm Main Frame 350h Steel Main Motor Power 4 Kw Pump Power 4kw Transport Package Water-Proof Packaging, Covered with Plastic Film Specification DX 1050 Trademark DIXIN Origin Botou Hebei China HS Code 845522 Production Capacity 20 Set Per Year

Product Description

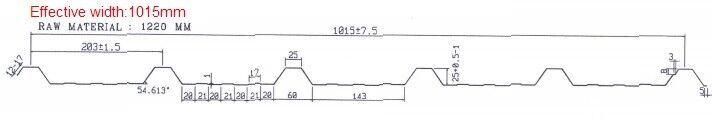

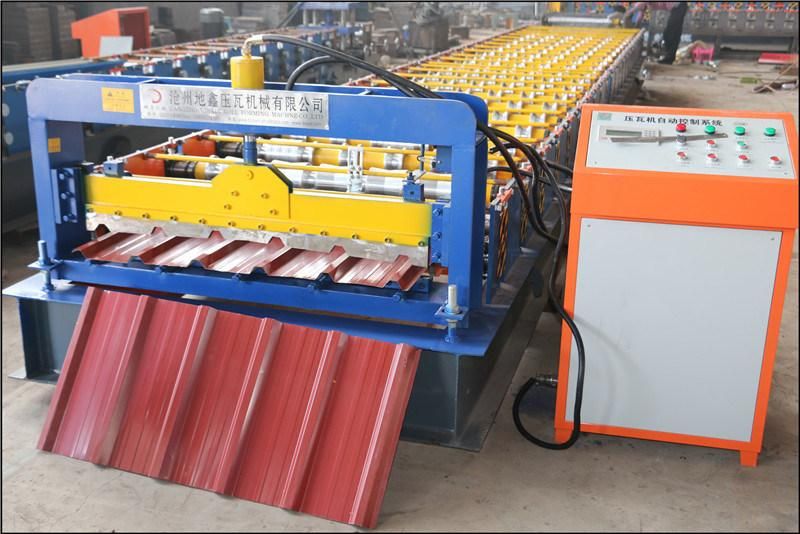

China Supplier Dixin Hot Sale 1050 Ibr Roof cold roll forming Machine 1.Panel profile drawing

We also can design and produce roll forming machine according to your requirement.


2. Technique parameters

Model number	China Supplier Dixin Hot Sale 1050 Ibr Roof cold roll forming Machine by Bella
Rolled material	0.3-0.8mm thickness, aluminium sheet, galvanized sheet, colored steel sheet and various steel plates
Effective width	840/1050mm
Feeding width	1000/1250mm
Forming steps	13steps
Roller	45# forged steel, hard chrome plating within 0.05mm
Diameter of shaft	75mm
Main frame	350H steel
Main motor power	4 kw
Pump power	4 kw
Medium plate thickness	16mm
Sprocket chain	1 inch
Drive  type	by chain
Cutting Blade	Cr12, heat treatment 60-62°C
Frequency Converter	It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).

3. Payment term: TT, 30%tt as the deposit, after production pay the last 70%TT

Workflow

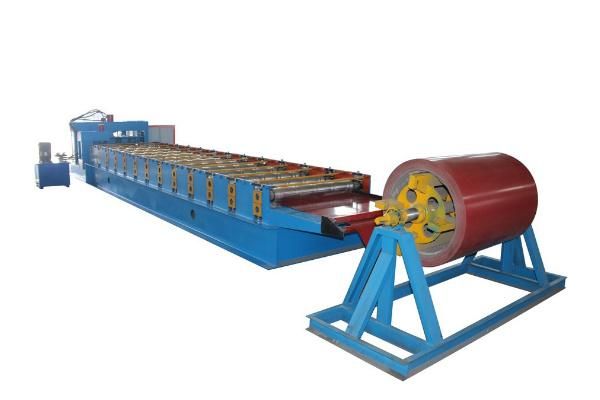

Decoiling the sheet - Sheet guiding - Roll forming - Measure length Cutting the panel- Panels to the support


Our Services

1. Customers` Design, Size, Color&Logo are accepted.

2. With15years professional manufacture experience

3. Prompt Delivery&Competitive Price

4. Main markets: Middle East, Europe, North America, Africa, Southeast Asia.

5. After-sales service:

1. We provide the technical support for whole life of our machines.

2. If buyers need the technician to go abroad, we will arrange the technician, but the buyers should take all the cost, including visa, roundtripticket etc.

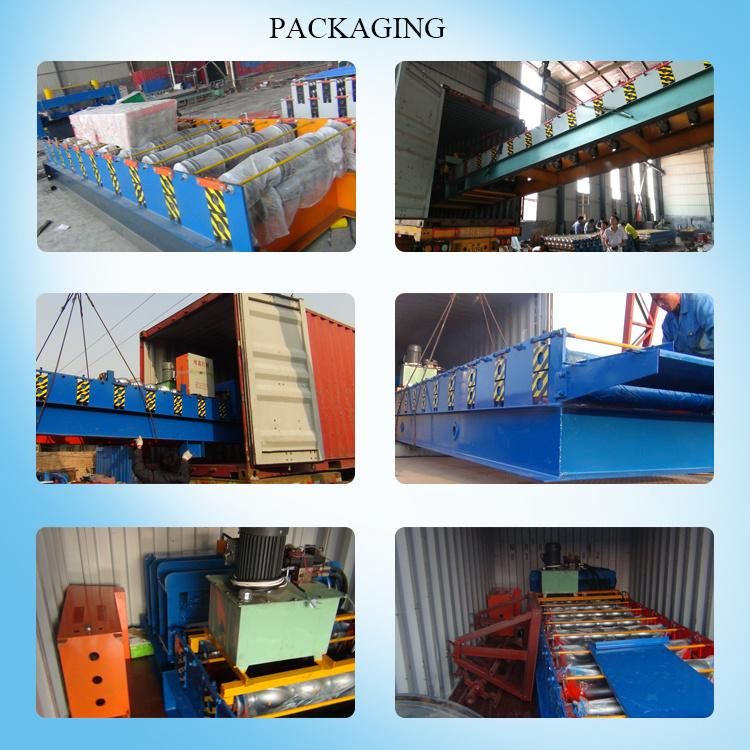

4.Packing and loading


Because of the long trip and your super trust, we will make sure roof cold forming machine can be

Appeared in front of you in fully good condition, you will fall in love with it with first glimpse.

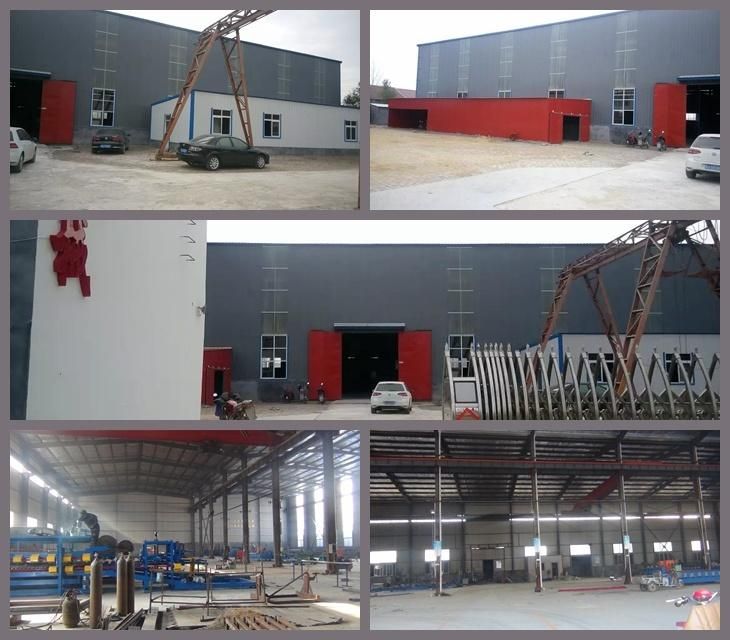

Welcome to visit our factory.




Contact: Coco Wang   : +8618231737651
