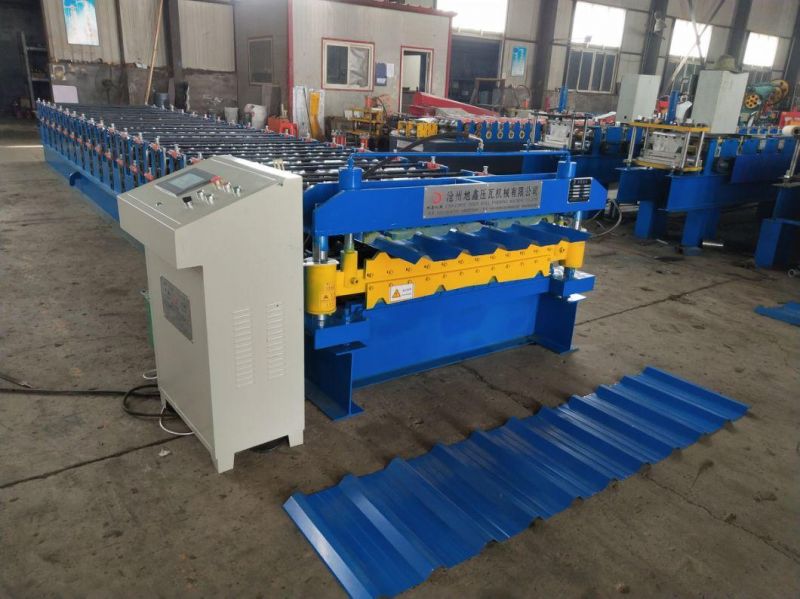

Dx Double Layer Roll Forming Machine for Roof

Cangzhou Dixin Roll Forming Machine Co., Ltd.
  • Type：Rolling Machine
  • Forging Forming Method：Tire Mold Forging
  • Power Source：Electric
  • Feature：Automation
  • Certification：CCC, ISO9001, CE
  • Warranty：12 Months

Base Info

  • Model NO.：1050&1064
  • Customized：Customized
  • Advantage：Easy to Maintenance
  • Condition：New
  • Mode：Galvanized Roofing Sheet Roll Forming Machine
  • Panel Profile：Can Be Design as Your Requiirement
  • Feeding Width：1250 and 1250mm or as Panel Drawing
  • Feeding Thickness：0.25-0.75mm
  • Control System：PLC Control and Manual Control
  • Roller Material：No.45 Forged Steel with 0.05mm Chromium
  • Shaft Diameterl：75mm
  • Forming Steps：15 Rows and 13 Rows or as Panel Drawing
  • Quality Gurantee：One Yaer
  • Forming Speed：8-12m,Min
  • Transport Package：Waterproof Package
  • Specification：1050,25, 1064,18
  • Trademark：DIXIN
  • Origin：China, Hebei
  • HS Code：845522
  • Production Capacity：10 Sets Per Month

Description

Basic Info.

Model NO. 1050&1064 Customized Customized Advantage Easy to Maintenance Condition New Mode Galvanized Roofing Sheet Roll Forming Machine Panel Profile Can Be Design as Your Requiirement Feeding Width 1250 and 1250mm or as Panel Drawing Feeding Thickness 0.25-0.75mm Control System PLC Control and Manual Control Roller Material No.45 Forged Steel with 0.05mm Chromium Shaft Diameterl 75mm Forming Steps 15 Rows and 13 Rows or as Panel Drawing Quality Gurantee One Yaer Forming Speed 8-12m/Min Transport Package Waterproof Package Specification 1050/25, 1064/18 Trademark DIXIN Origin China, Hebei HS Code 845522 Production Capacity 10 Sets Per Month

Product Description

DX Galvanized Iron Sheet
Double Layer Roll Forming Machine
Dx Double Layer Roll Forming Machine for Roof
Dx Double Layer Roll Forming Machine for Roof

1. Technique parameters
(1) Processing material: Aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 0.25-0.75mm
(3) Effective width: 1050&1064
(4) Feeding width1250mm
(5) Main motor power: 4 kw
(6) Pump power: 4 k
(7) Shaft diameter: 75mm
(8) Forming steps: Up level 11 steps for1050profile; Down level 13 steps for 1064 profile
(9) Roller material: 45# forged steel, with hard chrome plating
(10) Main frame: 300H steel
(11) Medium plate thickness: 16mm
(12) Control systerm: PLC computer control with inverter
(13) Power supply: 380V, 3 Phase, 60Hz or as requirement
(14) Overal sized: 7500mm*1500mm*1500mm

2. Spare parts
Components
 1 Manual uncoiler
 2 Feeding device
 3 Roll forming part
 4 Hydraulic pump
 5 Motor
 6 PLC control system
 7 Support table
