• Blade Material：9sicr
• Slit Width(Min)：150mm
• Slitting Speed：0-30m,Min
• Transport Package：Sea Packing
• Specification：CE SGS
• Trademark：SAIBO
• Origin：China
• HS Code：84552210
• Production Capacity：300set,Year

1.

MaterialHot rolled steel

2.

Steel thickness4~10mm

3.

Steel width 800~2500mm

4.

Coil O.D 1000~2100mm

5.

Coil I.D 500~800mm

6.

Steel weight35T

7.

Knife pivot diameterφ300mm

8.

Blade hardnessHRC58°-60°

9.

Blade specificationφ300×φ480×30

10.

Blade Material9SiCr

11.

Slit quantity10pcs for 4-6mm, 6-8pcs for7-8mm,5pcs for 8-10mm

12.

Slitting width precision±0.10mm

13.

Slit width(Min)150mm

14.

Slitting speed0-30m/min

15.

Scrap winder width≥1.5 times of thick

16.

Recoiler I.Dφ610mm

II. Overflow

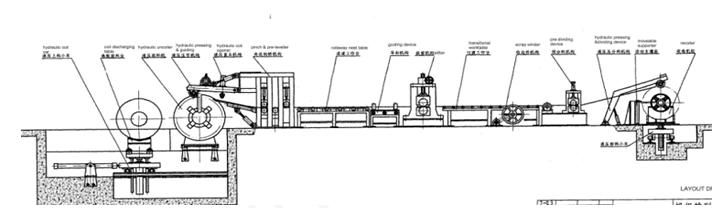

From right to left are: Entry coil car→Decoiler →Press and pinch device→Side guide device→ Slitter→Scrap winder→Transition table 2→Tension stand →Recoielr→Exit coil car→Packing

III. Composed device

NO

NameQuantity

1

V-Shaped saddle2 units

2

Hydraulic entry car1 unit

3

Decoiler1 pair

4

Press and pinch device1 unit

5

Transition table 11 unit

6

Side guide device1 unit

7

Slitter1 unit

8

Scrap winder1 unit

9

Transition table 21 unit

10

Tension stand1 unit

11

Recoiler1 unit

12

Hydraulic exit car1 unit

13

Hydraulic system1 set

14

                    Electrical system1 set
