C Purlin Roll Forming Machine (upright support)

Zhangjiagang City Saibo Science & Technology Co., Ltd.
  • Type：Rolling Machine
  • Forging Forming Method：Roll Forming
  • Power Source：Electric
  • Feature：High Efficiency
  • Certification：ISO9001, CE
  • Warranty：12 Months

Base Info

  • Model NO.：upright support
  • Customized：Customized
  • Advantage：Easy to Maintenance
  • Condition：New
  • Color：Blue and Yellow
  • Transport Package：No Packing
  • Specification：CE SGS
  • Trademark：SAIBO
  • Origin：China
  • HS Code：84552210
  • Production Capacity：300sets,Year

Description

Basic Info.

Model NO. upright support Customized Customized Advantage Easy to Maintenance Condition New Color Blue and Yellow Transport Package No Packing Specification CE SGS Trademark SAIBO Origin China HS Code 84552210 Production Capacity 300sets/Year

Product Description

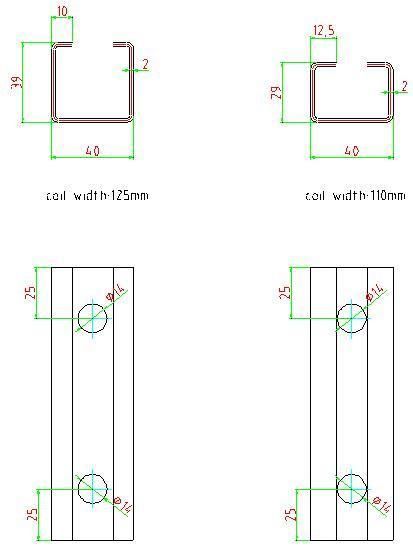

Profile drawing:
C Purlin Roll Forming Machine (upright support)

Main technology parameter:
1: This machine can produce 3 different sizes
2: Working speed: 20m/min (not contain punching and cutting)
3: Roll station: 14stations
4: Material of roller: 45#forge steel, polished and coated with chrome
5: Material of main shaft: 45forge steel diameter roller: 65mm
6: Main power: 7.5kw
7: Forming thickness: 1.5mm-2mm
8: Transmission: By Chains
9: Cutting:
(1)Adopt hydraulic cutting with the punching two holes together
(2)Cutting after forming: Cut the sheet after roll forming to required length
(3)Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
(4)Material of blade: CR12with heat treatment
(5)Length measuring: Automatic length measuring
(6)Tolerance of length: +/- 1.5mm
