• Model NO.：ZYYX Series
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Operation Language：English or as Per Client`S Required
• Cutting Type：Cut to Length
• Quality System：ISO9001
• Certificate：CE
• Guarantee Time：First Year Free, Lifetime Services
• Controlling System：Mitsubishi PLC & Converter
• Total Power：100kw
• Forming Speed：3-7m,Min
• Doulble Belt：23m
• Pressure for Foaming：150-200 Bar
• Transport Package：9*40gp
• Specification：ISO; CE
• Trademark：zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：4 Sets,Year

Item
SpecificationRaw MaterialTypeColor steel coilThickness(mm)0.4-0.7Yield strength(mpa)235-345Max. Width1250Sandwich Panel Panel width 950-1000mm (according to profile requirement)Mini thickness40mm (corrugated sandwich panel)
50mm (wall panel)Max. Thickness150mm (corrugated sandwich panel)

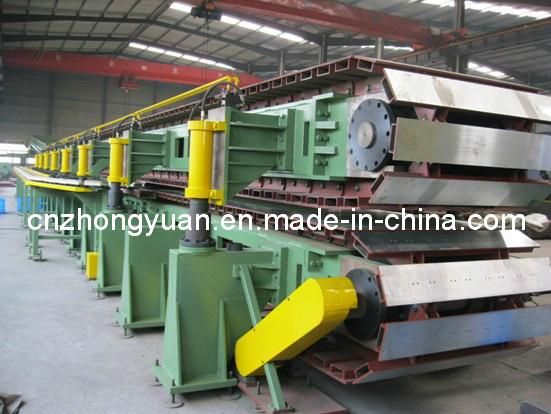

200mm (wall panel)Min. cutting length3 m Max. Stacking length15mWorking height  1150mm (height of panel coming out)PU forming densityABOUT 40 kg/m3Pressure for foaming 150-200 barEffective length of double belt conveyor23mRoller material45# steel , coated with ChromeShaft for rollers Solid shaft with 72mm,processed with cylindrical grinderForming speed(m/min)3-7m/min (adjustable)Speed adjusting modeMisubishi frequency transformerRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mould steelLength measurementNemicon EncoderControl modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenTotal power(kw)About 100KW

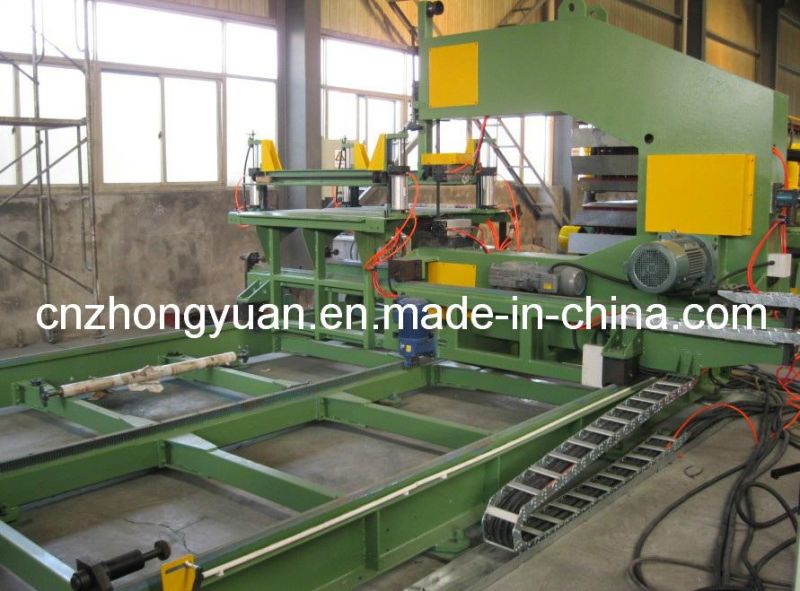

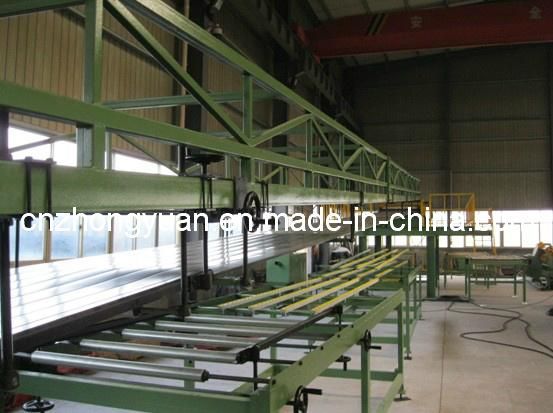

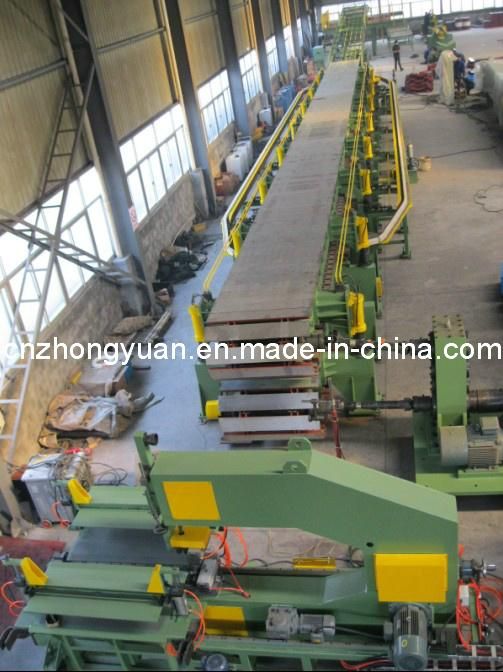

Main components of machineComponentsQTY.Hydraulic Uncoiller2set Platform for forming machine1set  Roll Forming System2set  Foaming system1setDouble Belt Laminator1setCutting System1set  Stacking system1set
Controller:
We choose Mitsubishi PLC from Japan.







About us
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.

1.  Capacity: 12-15 sets/month
2.  Delivery: in only 5-8 weeks for urgent order
3.  Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
     --from raw material to the final high-precision forming machine. We have our precise tooling center.
5.  You can rely on our team!
      We have engineers with experience more than 15 years in metal forming industry.

Get Free:
profile drawing & machine design technical support by our 15 year experience technicians!
