• Model NO.：KLS38-220-530
• Customized：Customized
• Advantage：Portable
• Condition：New
• Model No.：Kls38-220-530
• Dimension: 2000*1100*1200mm：2000*1100*1200mm
• Weight：1500kgs
• Brand Name：Xhh
• Model Number：Kls38-220-530
• Motor Power：2.2kw
• Hydraulic Power：0.75kw
• Thickness：0.5-0.9mm
• Forming Steps：8
• Transport Package：Standard Package for Export
• Specification：SGS
• Trademark：XHH
• Origin：Xiamen, China
• HS Code：84552290
• Production Capacity：10-15sets,Month

Basic Info.

Model NO. KLS38-220-530 Customized Customized Advantage Portable Condition New Model No. Kls38-220-530 Dimension: 2000*1100*1200mm 2000*1100*1200mm Weight 1500kgs Brand Name Xhh Model Number Kls38-220-530 Motor Power 2.2kw Hydraulic Power 0.75kw Thickness 0.5-0.9mm Forming Steps 8 Transport Package Standard Package for Export Specification SGS Trademark XHH Origin Xiamen, China HS Code 84552290 Production Capacity 10-15sets/Month

Product Description

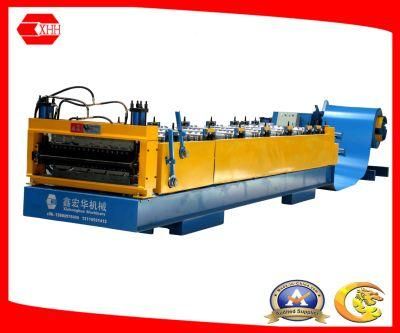

Informations of KLS38-220-530 Mimitype Stading Seam Roofing Forming Machines With Adjustment are as follows:

1. Material Thickness: 0.5-0.8mm;
2. Effective Width of Roofing: 220-530mm;

Main Accessories:
(1). Main Standing Seam Roofing Machines;
(2). 3 Tons Manual Uncoiler;
(3). PLC Computer Controlling System;
(4). Hydraulic Forming Cutter;
(5). Device for adjusting models;
(6). Run Out Table (3 units);
(7). Protective Cover;
(8). Operation Manual;

Usage: Producing standing seam roofing panels.

1.	Size	2000*1100*1200mm
2.	Weight	1500KGS
3.	Voltage	380V/50HZ/3PH
4.	Motor Power	2.2KW
5.	Power for Hydraulic	0.75KW
6.	Forming Steps	8 steps
7.	Material Thickness	0.5-0.9mm
8.	Standing Height of Roofing	38mm
9.	Thickness for common use and testing machine	0.6mm, 0.7mm
10.	Effective Width of Roofing	220-530mm
11.	Material Width	316-626mm
