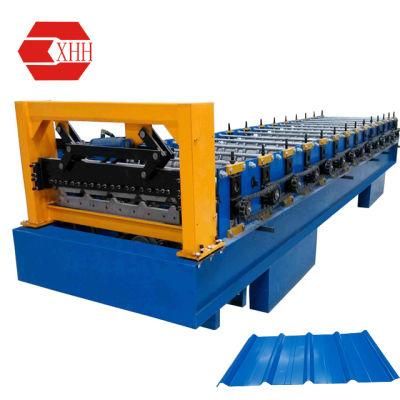

Yx24-765-1026 Color Steel Roof Roll Forming Machine
Xiamen Xinhonghua Machinery Co., Ltd.- Size：Yx24-765-1026
- Dimension：8000*1500*1500mm
- Moter Power：7.5kw
- Hydraulic Power：2.2kw
- Effective Width：765mm,1026mm
- Material Width：914mm,1200mm,1219mm
Base Info
- Model NO.：YX24-765-1026
- Thickness：0.3-0.6mm
- Voltage：380V,50Hz,3pH
- Forming Steps：18
- Working Speed：8-14m,Min
- Transport Package：Standard Package for Export
- Specification：SGS
- Trademark：XHH
- Origin：Xiamen, China
- HS Code：8455229090
- Production Capacity：15-20sets,Month
Description
Basic Info.
Model NO. YX24-765-1026 Thickness 0.3-0.6mm Voltage 380V/50Hz/3pH Forming Steps 18 Working Speed 8-14m/Min Transport Package Standard Package for Export Specification SGS Trademark XHH Origin Xiamen, China HS Code 8455229090 Production Capacity 15-20sets/MonthProduct Description
Detail information of YX24-765-1026 Color Steel Roof Roll Forming Machine, Metal Roof Roll Forming Machine are as following:Main Accessories:
(1) Main Forming Machine;
(2) 5 Tons Manual Uncoiler;
(3) Hydraulic System;
(4) PLC Computer Controlling System with Touch Screen
(5) Hydraulic Forming Cutter;
(6) Run Out Tables(3 Units);
(7) Tools;
(8) Operation Manual.
Main Technical Data:
| 1. | Motor Power | 7.5KW |
| 2. | Hydraulic Power | 2.2KW |
| 3. | Voltage | 380V/50HZ/3PH |
| 4. | Material Width | 914mm,1200mm,1219mm |
| 5. | Effective Width | 765mm,1026mm |
| 6. | Material Thickness | 0.3-0.6mm |
| 7. | Working Speed | 8-14m/min |
| 8. | Forming Steps | 18 |
| 9. | Height of Roofing | 24mm |
