• Model NO.：DLM-0817
• Specification：904*592*1475mm
• Trademark：DL
• Origin：China
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. DLM-0817 Specification 904*592*1475mm Trademark DL Origin China Production Capacity 100 Sets/Month

Product Description

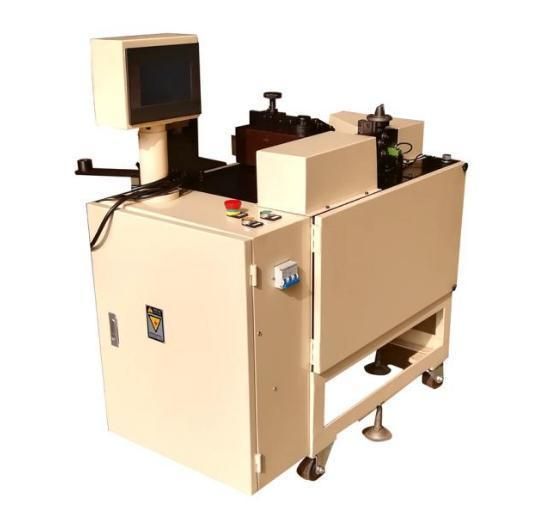

Dlm-0817 slot paper forming & cutting machine

Technical parameter
Feeding length: 20-130mm
Feeding accuracy: +0.5mm
Forming angle: 60° - 120°
Roll width: 9-16mm
Material thickness: 0.18-0.3mm
Power source: 380V/50Hz
Power: 750W
Tact time: 0.4s/sheet
Weight: 270kg
Dimension(lx w x h): 904x 592x 1475mm



Applicable to manifold and less demand motor produce.
Flexible control of the number of finished products.
High-precision stepper motors, simple and accurate feeding.

Fuction:
Adopting the mode of horizontal mechanical transminssion and hot-rolled forming, it can automatically and continuously complete paper transferring, forming and cutting.

Preheating unit is set before the forming of insulating paper to regulate the preheating temperature according to the forming requirements.

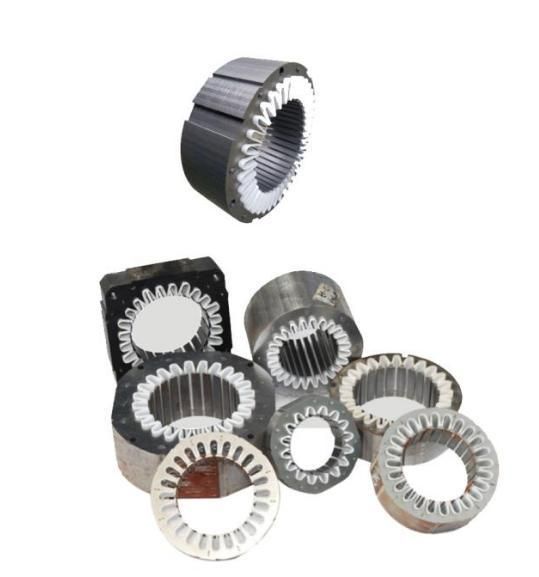

It can be used for insulation paper coil stock with different thickness and width through the mold replacement, and can satisfy the slot insulation demand when artificially inserting wire in small and medium-sized motors.
