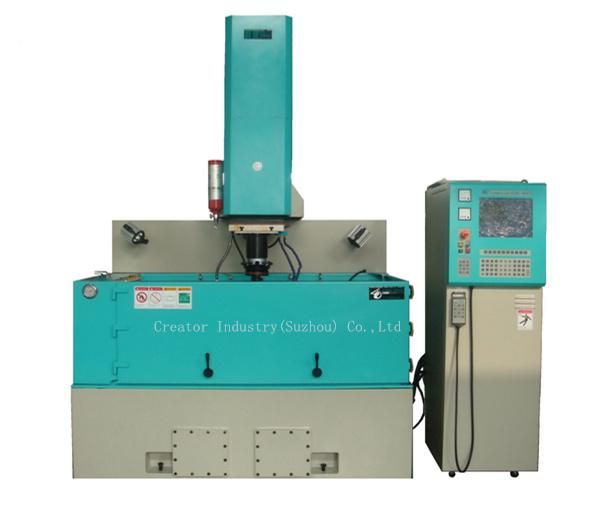

CE/SGS/ISO9001 Popular Machine Die Sinker EDM Machine (CNC850)

Creator Industry (Suzhou) Co., Ltd.
  • X Axis Travel：800mm
  • Transport Package：Wooden Case
  • Specification：CE and SGS
  • Trademark：LEAD
  • Origin：China

Base Info

  • Model NO.：CNC850
  • Production Capacity：30 Sets,Month

Description

3     V220.346220.346220.346220.346220.346380.415380.415380.415380.415380.415Input powerKVA710152030Working voltage(No load)V100100100150250High voltageV140 or 250140 or 250140 or 250140 or 250140 or 250Min. ON TIMEµ S11111Min. OFF TIMEµ S11111Max. Cutting speedmm3/min480720105015002500Best surface finishµ mRa.0.20.20.20.20.2Min. Electrode wear rate%0.30.30.30.30.3Weightkg210248360490700

Specification of Machine unit:
ModelUnitCNC850
Table travel(X axis)mm800
Table travel(Y axis)mm500
Quill travel(Z1 axis)mm-
Work head travel(Z2 axis)mm400
Work table dimensions(LxW)mm1000x600
Distance between plate and tablemm450-850
Work tank inner dimensions(WxDxH)mm1600x983x588
Max. capacity of dielectric fluidLiter1150
Max. electrode weightkg120
Max. workpiece weightkg2000
Machine unit dimensions(WxDxH)mm1850x2800x2750
Machine unit weightkg5400
