2 Axis CNC Coiling Compression Spring Making Machine
Guang Dong LI KE XING Spring Machinery Technology Co., Ltd.- Control Type：CNC
- Axis Count：2 Axis
- Servo Motor：SANYO
- Transport Package：Wooden Case
- Specification：1000*1000*1700MM
- Trademark：LIKEXING
Base Info
- Model NO.：LKX208
- Origin：Made in China
- HS Code：84633000
- Production Capacity：500sets,Year
Description
Basic Info.
Model NO. LKX208 Origin Made in China HS Code 84633000 Production Capacity 500sets/YearProduct Description
PRODUCT DESCRIPTION

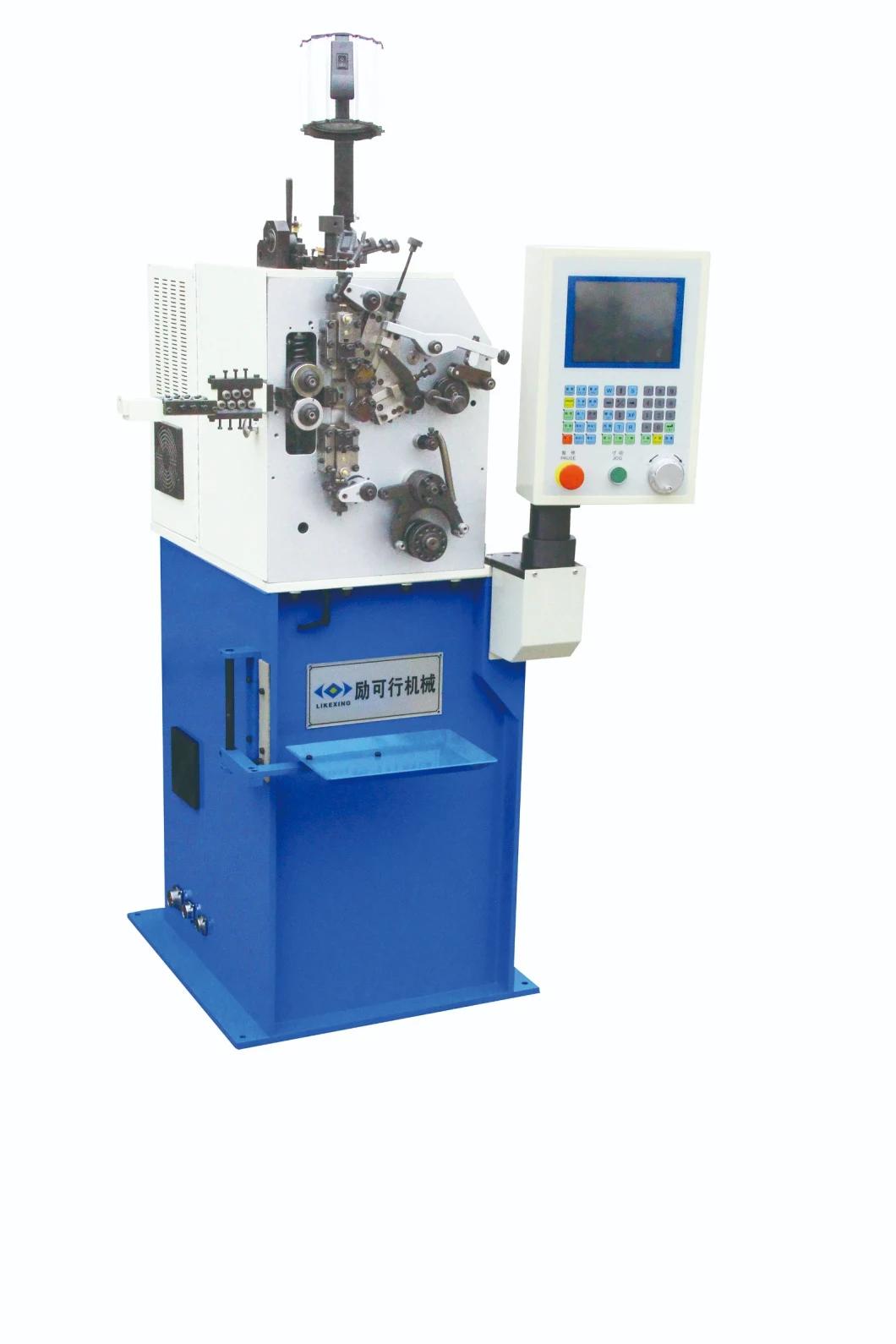

LKX208 Computer Compressing Spring Machine is equipped with imported Japanese Servo Motor, including cam axis and feeder axis.High synchronization accuracy, Power-full and precise in wire feeding.
Suitable for producing Compression spring, torsion spring ect. parts.
8inch digital touch screen with touch buttons, easy to use.
In High speed processing, when the motor is voerheating, the cumputer can detect and slow down to protect the motor itself automatically.
Easy to operate,high precision and fast production speed.
Can reduce or increase the production capacity at any time.
TECHNICAL PARAMETER
| Model | LKX208 |
| Wire diameter (mm) | Ø0.1~Ø0.8 |
| Axis Count | 2 Axis |
| Max feeding Length | unlimited |
| Servo motor of wire feed (kw) | 0.75 |
| Servo motor of cam (kw) | 0.75 |
| The Fastest Speed | 600pcs/min |
| The Feeding Wire Speed | 1200m/min |
| Max Outside Diameter | 20mm |
| Machine size(mm) | 900×850×1600 |
| Weight (Kg) | 380 |
| Power | 200V 3-Phase |
