Wholesale Taper with Straight Tooth CNC Machine Tool
Changzhou Hongjian Tools Co., Ltd.- Condition：New
- Certification：CE, ISO9001
- Customized：Non-Customized
- Material：Solid Carbide
- Application：Metal Recycling Machine, Metal Cutting Machine, Metal Straightening Machinery, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal forging Machinery, Metal Engraving Machinery, Metal Drawing Machinery, Metal Coating Machinery, Metal Casting Machinery
- Performance Classification：Economical CNC Machine Tools
Base Info
- Model NO.：Taper end mills
- Wc Mean Grain Size：0.2-0.8um
- Trial/Sample Order：Accepted
- Flexural Strength：2500-4000n,mm2
- Material Composition：89% Carbide, 10%Co and 1% Ot
- Export Market：Global
- Raw Materiai：Carbide Alloy
- Transport Package：Air
- Specification：SGS
- Trademark：Hiboo
- Origin：Changzhou Jiangsu China
- HS Code：8207709000
- Production Capacity：50000PCS,Mouth
Description

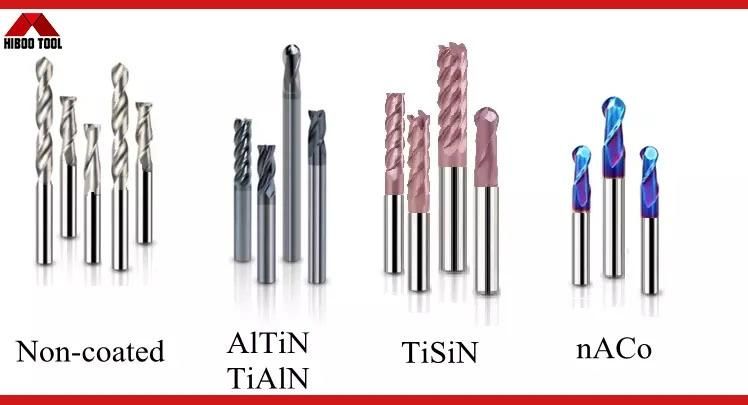

Super coating of carbide corner radius end mill Item AlTiN TiAIN TiSiN HELICA Hardness(HV) 3500 3300 3500 3000 Thickness(μM) 2.5-3 2.5-3 3 0.5-4 Oxidation Temp(°) 900 800 1500 1100 Friction Coffients 0.4 0.4 0.45 0.25 Color Anthracite Purple-gray Bronze copper Select raw material according to the HRC of the work piece HRC Meterial MG Grain Size(μm) CO(%) Flexural Strength(N/mm²) 50° YG10.2 0.7 10 3320 55° Taiwan Chunbao 0.6 10.3 3800 60° Taiwan Chunbao 0.4 12 4200 65° AF308 0.3 8 3700

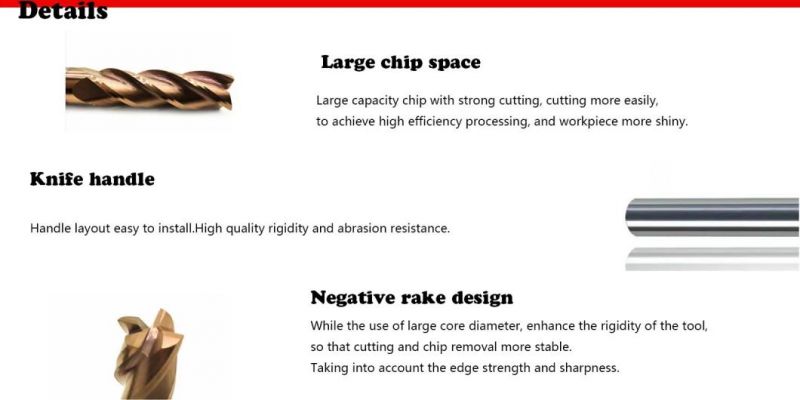

Advantage of solid carbide end mill
1. Solid carbide lasting long life in hardened steels, Grain size carbide, high toughness, high -wearing feature.
2. Reduce the rudding coefficient & save the processing time, Specializing in high speed cutting of CNC milling machine.
3. Wide range of application: Suitable for copper, castiron, carbon steel, stainlees steel, Non-ferrous material and Heat-treated steel processing.
4. The shank and helix angle can be customized according to customers' requirements.
SPECIFICATIONS
Product feature introduced
. Materials: 100% Raw Material
. Composition: 88% Carbide, 12% Co
. Micro grain: 0.4um
. Hardness of Rod Material (HRA): 91-94
. Types: quare/ball nose/radius carbide end mill
. Flute No.: 2/3/4 flutes
. Free Service: OEM
. Applications: Good wear resistance, suitable for alloy, cast iron, copper, common mould steel
Application and usage
Applicatrion: Aerospace, transportation, Medical equipment, military manufacturing, mould development, apparatus and instrument, etc.
Usage: Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Die steel, Stainless steel, Plastic, Arcylic, etc.
Package
(1)One plastic pipe pack one piece, 10 pieces per group.
(2)Use the air bubble paper to encase the plastic paper.
(3)White parts for protect the flute of cutters.
(4)Laser brand and demensions on the body of cutters, print labels.
(5)Put the goods encased with air bubble paper into the carton.
(6)Other packing will be accepted according to your needs.
Transport
Advantage of solid carbide end mill
1. Solid carbide lasting long life in hardened steels, Grain size carbide, high toughness, high -wearing feature.
2. Reduce the rudding coefficient & save the processing time, Specializing in high speed cutting of CNC milling machine.
3. Wide range of application: Suitable for copper, castiron, carbon steel, stainlees steel, Non-ferrous material and Heat-treated steel processing.
4. The shank and helix angle can be customized according to customers' requirements.
SPECIFICATIONS
| Flute Dia.(mm) | Flute Length(mm) | Shank Dia.(mm) | Overall Length(mm) |
| R0.25 | 15 | Φ4 | 50 |
| R0.5 | 15 | Φ4 | 50 |
| R0.75 | 15 | Φ4 | 50 |
| R1 | 15 | Φ4 | 50 |
| R0.25 | 20.5 | Φ4 | 50 |
| R0.5 | 20.5 | Φ4 | 50 |
| R0.75 | 20.5 | Φ4 | 50 |
| R1 | 20.5 | Φ4 | 50 |
| R0.25 | 20.5 | Φ4 | 75 |
| R0.5 | 20.5 | Φ4 | 75 |
| R0.75 | 20.5 | Φ4 | 75 |
| R1 | 20.5 | Φ4 | 75 |
| R0.25 | 20 | Φ6 | 50 |
| R0.5 | 20 | Φ6 | 50 |
| R0.75 | 20 | Φ6 | 50 |
| R1 | 20 | Φ6 | 50 |
| R0.25 | 30.5 | Φ6 | 75 |
| R0.5 | 30.5 | Φ6 | 75 |
| R0.75 | 30.5 | Φ6 | 75 |
| R1 | 30.5 | Φ6 | 75 |
| R1.5 | 30.5 | Φ6 | 75 |
| R2 | 30.5 | Φ6 | 75 |
| R0.25 | 47 | Φ8 | 85 |
| R0.5 | 47 | Φ8 | 85 |
| R0.75 | 47 | Φ8 | 85 |
| R1 | 47 | Φ8 | 85 |
| R1.5 | 47 | Φ8 | 85 |
| R2 | 47 | Φ8 | 85 |
| R0.25 | 60 | Φ8 | 100 |
| R0.5 | 60 | Φ8 | 100 |
| R0.75 | 60 | Φ8 | 100 |
| R1 | 60 | Φ8 | 100 |
| R1.5 | 60 | Φ8 | 100 |
| R2 | 60 | Φ8 | 100 |
. Materials: 100% Raw Material
. Composition: 88% Carbide, 12% Co
. Micro grain: 0.4um
. Hardness of Rod Material (HRA): 91-94
. Types: quare/ball nose/radius carbide end mill
. Flute No.: 2/3/4 flutes
. Free Service: OEM
. Applications: Good wear resistance, suitable for alloy, cast iron, copper, common mould steel
Application and usage
Applicatrion: Aerospace, transportation, Medical equipment, military manufacturing, mould development, apparatus and instrument, etc.
Usage: Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Die steel, Stainless steel, Plastic, Arcylic, etc.
Package
(1)One plastic pipe pack one piece, 10 pieces per group.
(2)Use the air bubble paper to encase the plastic paper.
(3)White parts for protect the flute of cutters.
(4)Laser brand and demensions on the body of cutters, print labels.
(5)Put the goods encased with air bubble paper into the carton.
(6)Other packing will be accepted according to your needs.
