• Model NO.：Gw-350kg
• Type：Melting Metal Furnace
• Capacity Range：350kg
• Application：Melting Copper Bronze
• Melting Temperture：0-1500 Degrees
• Rated Power：250kw
• Input Voltage：380V, 3phase
• Input Current：400A
• Delivery Time：15 Days
• Transport Package：Standard Exprot Package
• Specification：customized
• Trademark：Hengyang
• Origin：China
• Production Capacity：1000sets,Year

Basic Info.

Model NO. Gw-350kg Type Melting Metal Furnace Capacity Range 350kg Application Melting Copper Bronze Melting Temperture 0-1500 Degrees Rated Power 250kw Input Voltage 380V, 3phase Input Current 400A Delivery Time 15 Days Transport Package Standard Exprot Package Specification customized Trademark Hengyang Origin China Production Capacity 1000sets/Year

Product Description

Product Induction

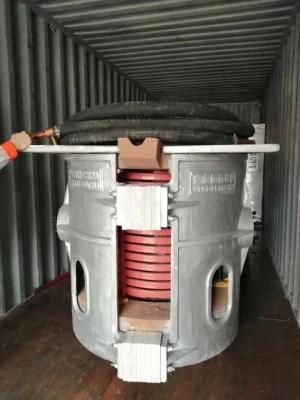

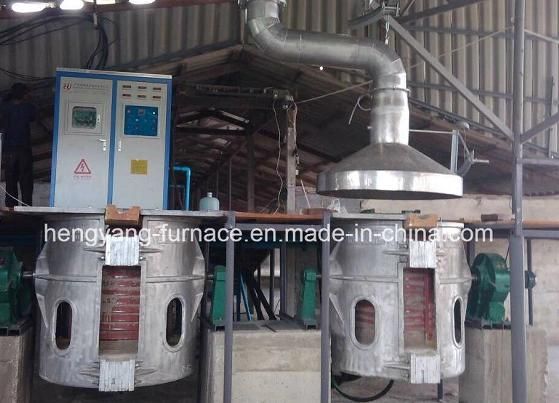

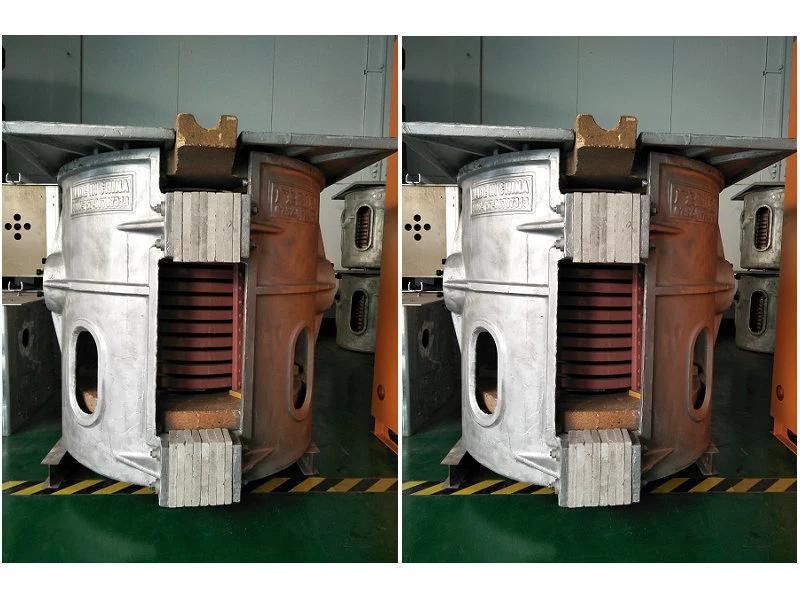

1. IF induction melting furnace is the star product of Hengyang. It is a kind of device that converts three-phase power current into single phase power current by electromagnetic induction, to make metal produce eddy current loss and finally achieve the goal of heating and melting. It is applicable to melting and heating of steel, copper, aluminum, and other ferrous or nonferrous metal, and is widely used in the casting and melting industries.
2. According to scientific theory, the induction coil loss accounts for 25% of the total power and a high-quality induction coil plays a significant role in the product. At our company, TU1 anoxic copper is adopted as the coil and high silver brazing process is applied in the manufacturing of the coil joint, so that the product is endowed with high conductivity and small electricity loss. By using full-wave rectifier which always keeps running, we ensure the product won't produce higher harmonic and does no pollution to the power network. The most distinguishing feature of the product is that it can always remain the highest state of over 0.96 and full medium frequency power output. It only takes 40 minutes for the product to melt and can save 20% of the electricity compared with other similar products on the market. During the whole process, the product can always keep the maximized power to operate without requiring the manual operation of the workers.

Technical Parameter

Furnace Capacity	Rating Power	Input Voltage	Pulse Count	Input Current	Assorted Transformer	Output Voltage	Melting Time
50KG	50KW	380V	6	80A	60KVA	750V	20-45Min
100KG	100KW	380V	6	160A	120KVA	750V	20-45Min
150KG	160KW	380V	6	256A	200KVA	750V	20-45Min
200KG	160KW	380V	6	256A	250KVA	750V	20-45Min
250KG	200KW	380v	6	320A	315KVA	750V	20-45Min
350KG	250KW	380V	6	400A	400KVA	750V	20-45Min
500KG	350KW	380V	6	560A	500KVA	750V	30-50Min
750KG	500KW	380V	6	800A	630KVA	750V	40-50Min
1000KG	750KW	380V 750v	6	1280A 656A	1000KVA	750V 990V	40-50Min
1500KG	1000KW	380V 750v	6/12	800A 820A	1250KVA	750V 990V	40-60Min
2000KG	1400KW	750V 750V	6/12	1148A 574A	2000KVA	990V	45-60Min
3000KG	2000KW	750v	12	820A	2500KVA	990V	50-70Min
5000KG	3000KW	1000V	12	1140A	4000KVA	1900V	50-80Min

Advantages of Induction Melting Furnace


1. Good power saving
2. Simple operation and reliable operation
3. Fast heating up
4. Less smoke
5. Temperature easy control
6. Low surrounding temperature of furnace
7. Compact structure and strong overload capacity

After Sale Service:

1. 7 days training and debugging for free
2. 3 year warranty
3. Life time maintenance services
4. 25 engineers to make sure the efficient after-sell
5. Within 2 hours respond to the falut notification
