• Model NO.：HSD-30
• Customized：Customized
• Advantage：Work Flexible
• Condition：New
• Transport Package：Wooden Case
• Specification：M5
• Trademark：RAINBOW
• Origin：Shanghai
• Production Capacity：100 Sets,Year

Basic Info.

Model NO. HSD-30 Customized Customized Advantage Work Flexible Condition New Transport Package Wooden Case Specification M5 Trademark RAINBOW Origin Shanghai Production Capacity 100 Sets/Year

Product Description

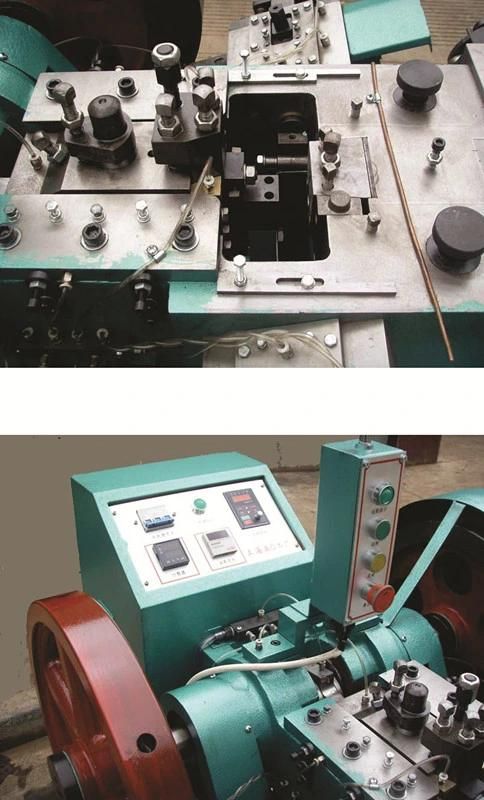

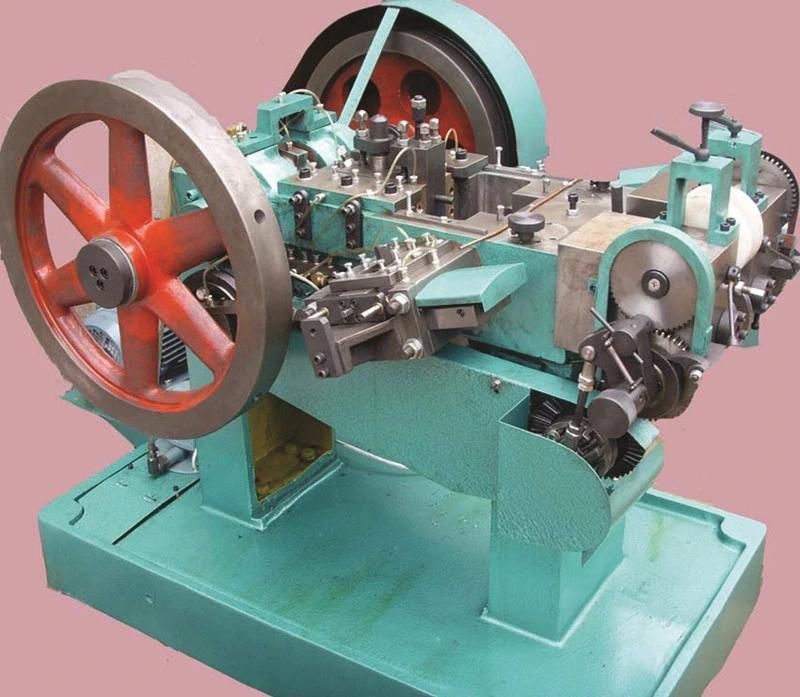

Bimetal Composite Contact Cold Header can make six different metals be compounded together under cold state to produce composite contacts according to the technique requirements.Its working process includes the following steps:Sending two different kinds of metal wire into the machine firstly, transmitting them into the mould after being cut off.Then by two times upsetting process, the two kinds of metal become the composite contacts.Finally, the products retreat from the mould and enter into the finished product box.
 Model HSD-30P bi-metal rivet & button making machineDia.Of rivet head:2.5-6mm
Dia.Of rivet shank:1.2-3mm
Dia.Of Button:2.5-6mm
Thickness of button:0.5-2.2
Thickness of silver layer:0.18-0.35
Stroke of slider:40mm
Motor power:2.3kw
Output:90- 130PCS/min
Package size:1300X1400X1300mm
Weight:1100kgs
